Installing of the standard device
Basic devices in the power range 110 ... 200 kW
Fasten controller on mounting plate
4.2
4.2.4
l
4.2−4
EDSVF9383V EN 7.1−04/2012
4.2.4
Fasten controller on mounting plate
}
Danger!
Risk of injury due to the high weight of the controller.
The controller has to be carried using the eyebolts and an
adequate lifting tool.
1
2
0
4
3
4
3
9300vec070

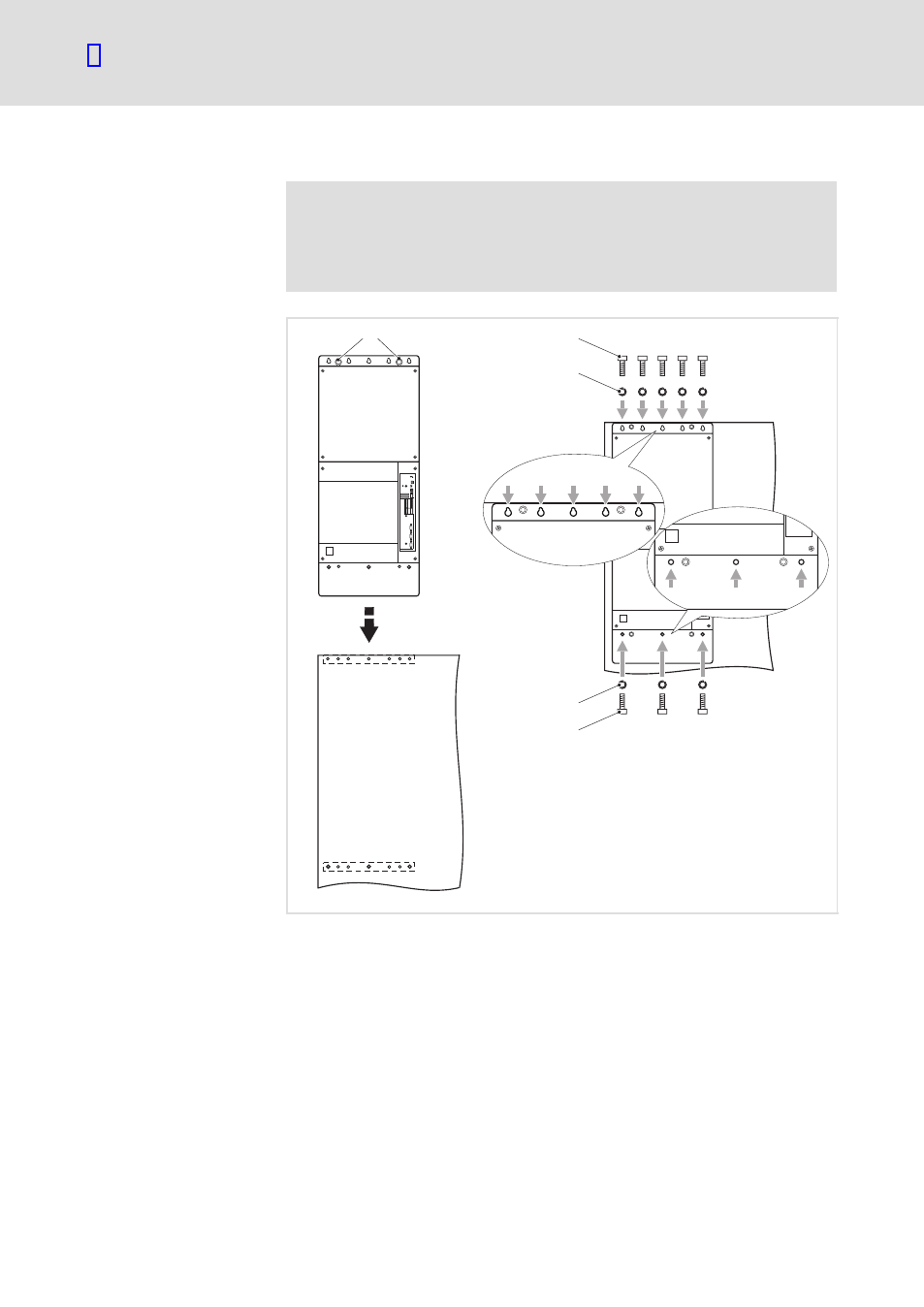

Fig. 4.2−4
Fastening the controller on mounting plate
0 Eye bolts
3 8 hexagon socket screws M8 × 25 mm
1 Controller
4 8 spring washers M8
2 Mounting plate
1. Put the controller on the mounting plate.
2. Fasten the controller exactly at the illustrated points using 5 hexagon
socket screws and spring washers at the top and 3 hexagon socket
screws and spring washers at the bottom.
