Installing of the standard device
Basic devices in the power range 110 ... 200 kW
Fasten the mounting rails on the mounting plate
4.2
4.2.3
l
4.2−3
EDSVF9383V EN 7.1−04/2012
4.2.3
Fasten the mounting rails on the mounting plate
1
0
0
2
3
3
2
93vec071

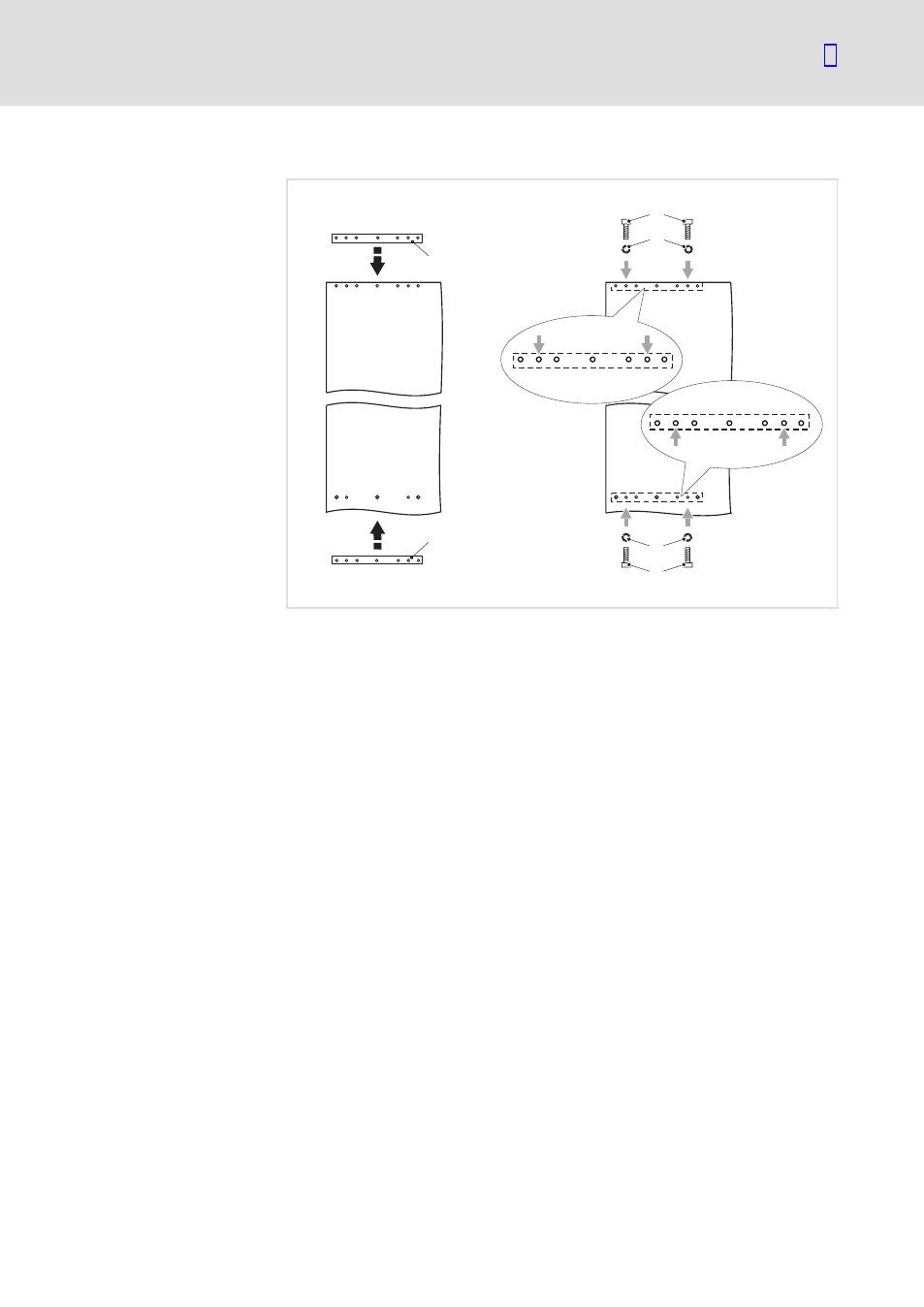

Fig. 4.2−3
Fastening the mounting rails on the mounting plate
0 Mounting rail
1 Mounting plate
2 Hexagon socket screw M8 × 25 mm
3 Spring washer M8
1. Hold the mounting rails behind the mounting plate.
2. Fasten the mounting rails exactly at the illustrated points using 2
hexagon socket screws and spring washers on each side.
