Installing of the standard device
Basic devices in the power range 110 ... 200 kW
Dimensions
4
4.2
4.2.1
l
4.2−1 EDSVF9383V EN 7.1−04/2012
4.2 Basic devices in the power range 110 ... 200 kW
I
Tip!
ƒ Lenze recommends to install an air lock. It serves to dissipate
the heated cooling air directly from the control cabinet.
– Order no. E93ZWL
ƒ A drilling jig for marking the bore holes is available as dxf−file
on the Internet in the "Download" area under www.Lenze.de.
4.2.1 Dimensions
a1
a2
d
0
b b1
c
a
b2 d
0
9300VEC002

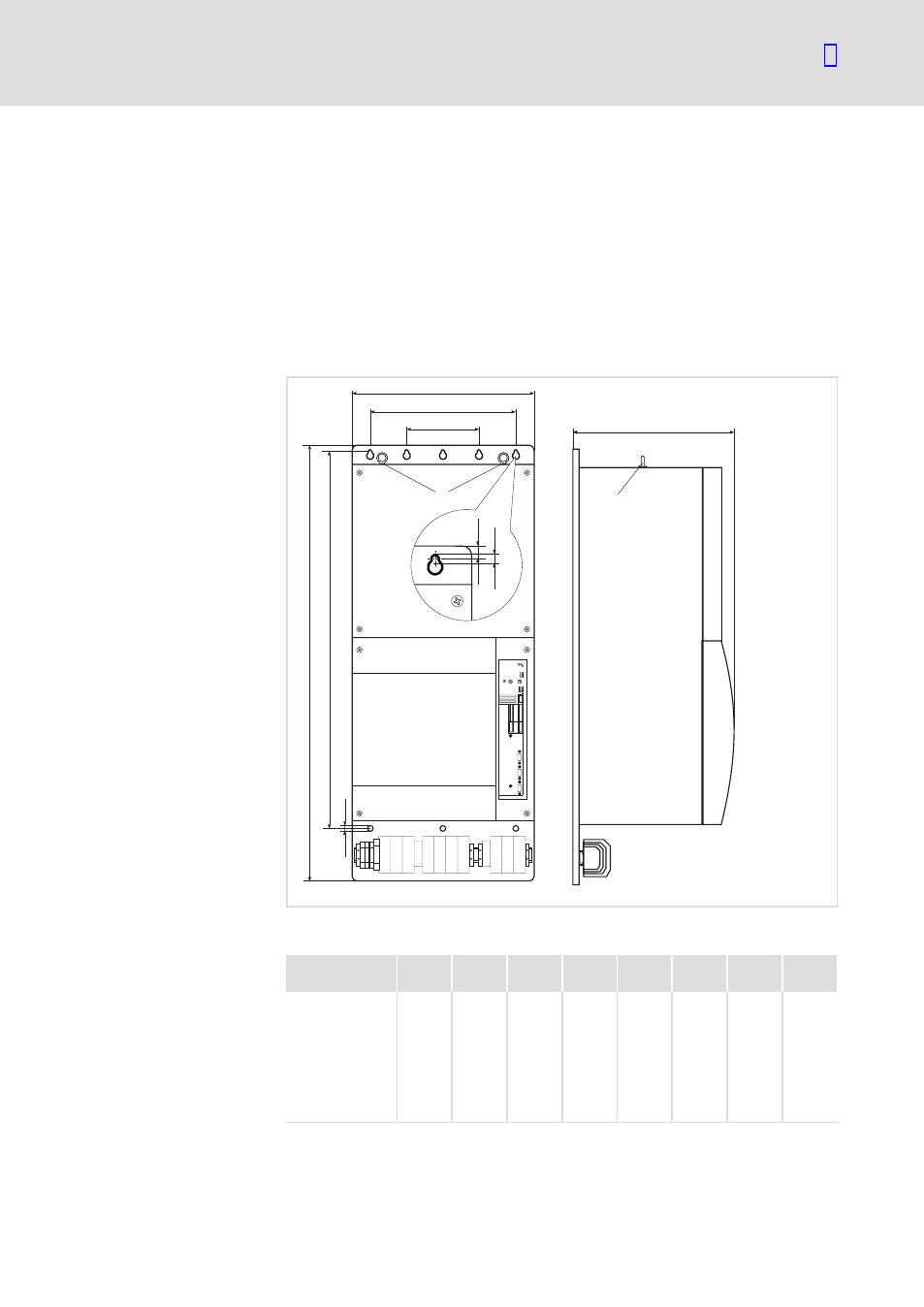

Fig. 4.2−1 Dimensions
0
Eyebolts
Type a
[mm]
a1
[mm]
a2
[mm]
b
[mm]
b1
[mm]
b2
[mm]
c
[mm]
d
[mm]
EVF9335−EV
EVF9335−EVVxxx
EVF9336−EV
EVF9336−EVVxxx
EVF9337−EV
EVF9337−EVVxxx
EVF9338−EV
EVF9338−EVVxxx
500 450 225 1145 1005 15 436
9
(8Ч)
