Braking operation
Lenze brake resistors
Dimensions
12.2
12.2.2
l
12.2−2
EDSVF9383V EN 7.1−04/2012
12.2.2
Dimensions
c3
c1
c2
b
b1
a2
a3
a4
a
a1
e
e1
c
Achtung!
Caution!
6.5 x 15.5
> 100 mm
> 200 mm
> 25 mm
> 25 mm
9300VEC041
Fig. 12.2−1

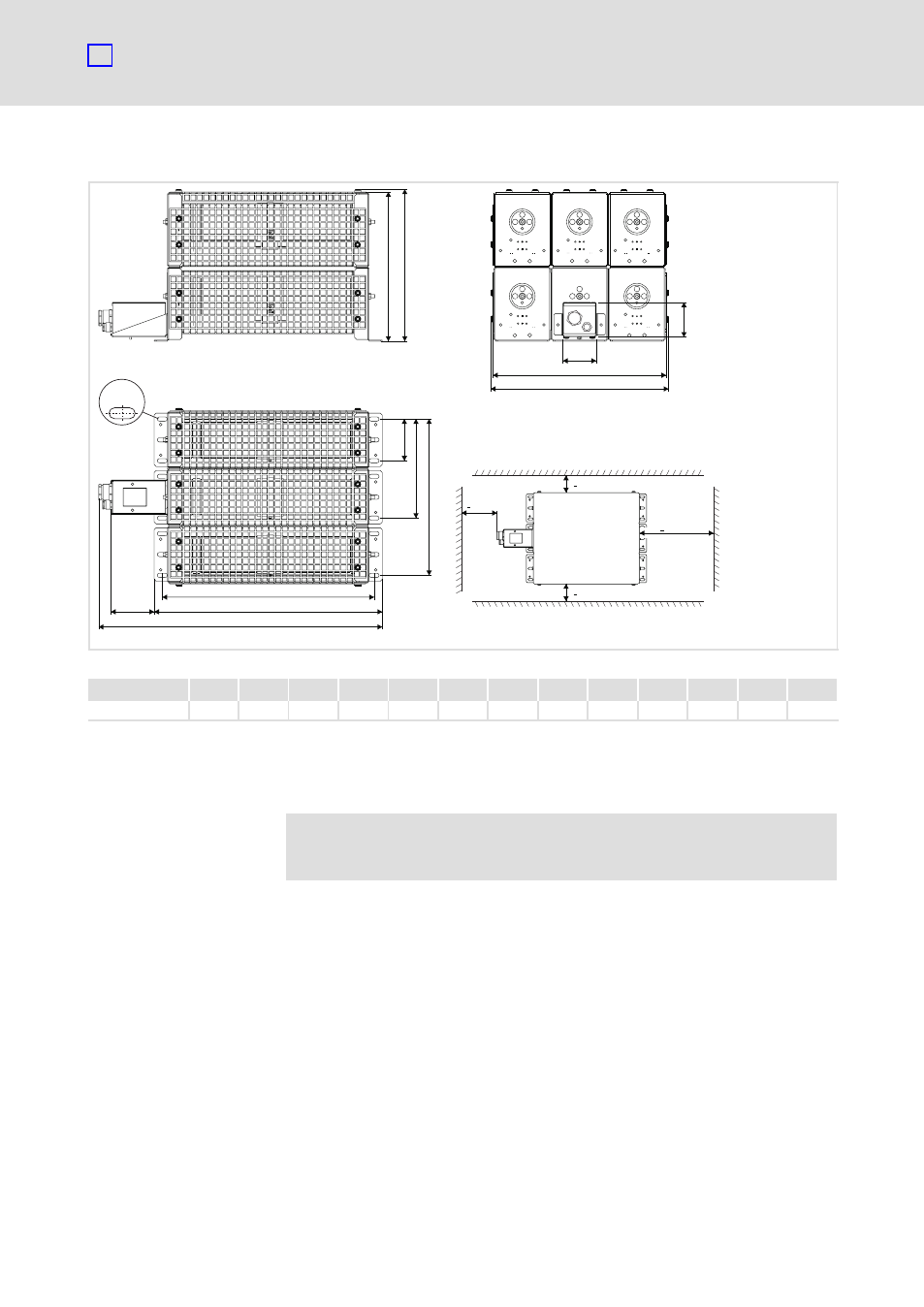

Dimensions of the ERBD015R04K0 brake resistor
Type
a
a1
a2
a3
a4
b
b1
c
c1
c2
c3
e
e1
ERBD015R04K0
273
266
240
152
64
233
229
640
550
526
66.5
51
53
All values in [mm]
12.2.3
Selection
(
Stop!
The value must not fall below the lowest permissible resistance.
Connect several brake resistors of type ERBD015R04K0 in parallel to get the
brake resistance that matches your application.
The number of resistors to be connected in parallel is calculated with 1/4 x
of the required continuous power (round the result).
