Profibus Modules User Manual

EO 09-0009

11.12 View the Configuration
The configuration can be displayed in several tables. The following tables are available:
Device Table

Address Table (Occupation of the process image memory in the Horner PROFIBUS-DP Master)
Selecting the menu View > Address Table, View > CRL Table or View > OD Table the following
windows may appear to select the Master device.













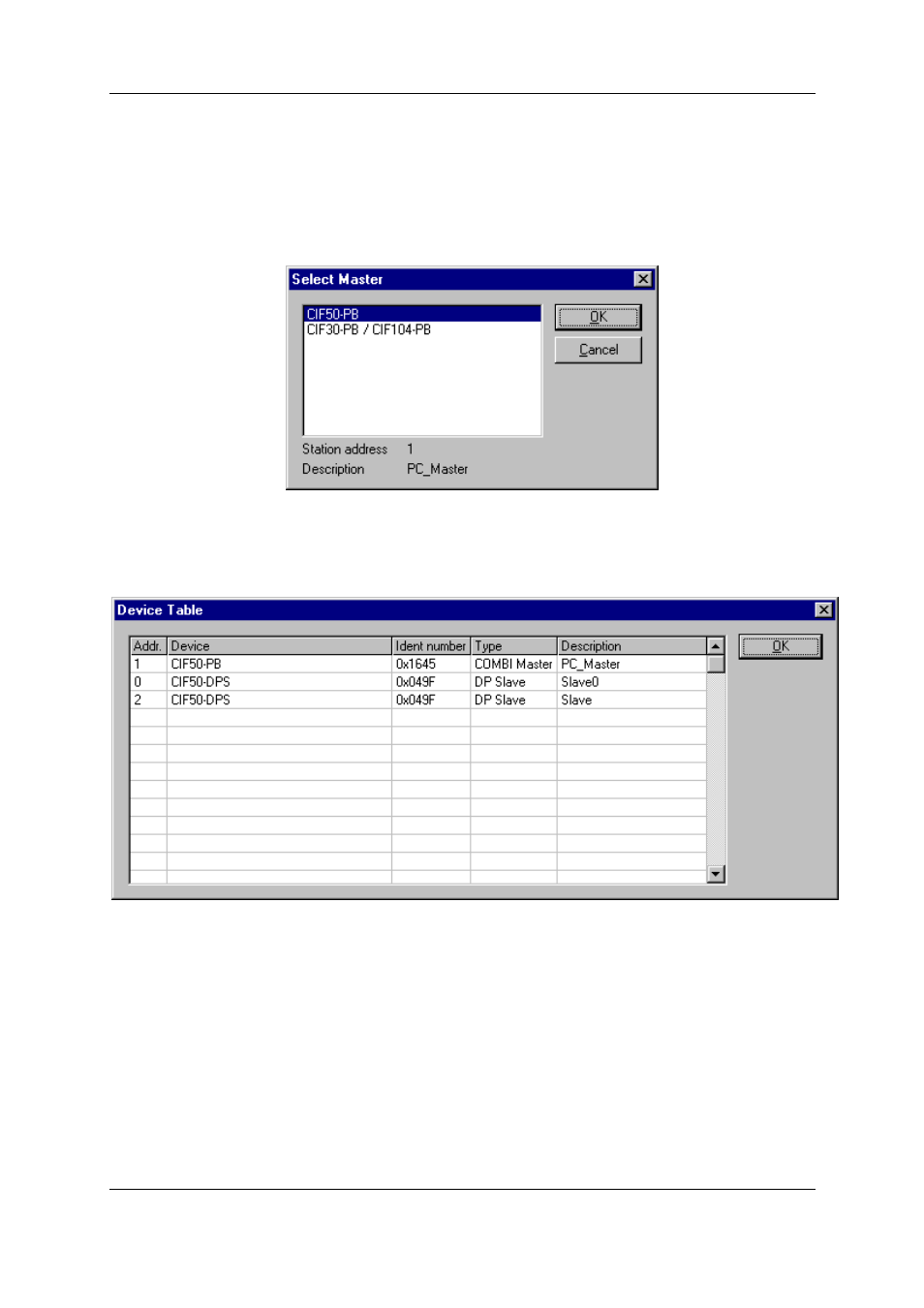

Figure 68: View and Select Master


11.13 Device Table
The View > Device Table menu shows the list of all devices that have been inserted.















Figure 69: View > Device Table
