Online Functions

MAN0575-04-EN

PAGE 54 of 97

© Horner APG.This drawing is the property of Horner APG. And shall not be disclosed or reproduced except as specifically authorised.

Profibus Modules User Manual

EO 09-0009

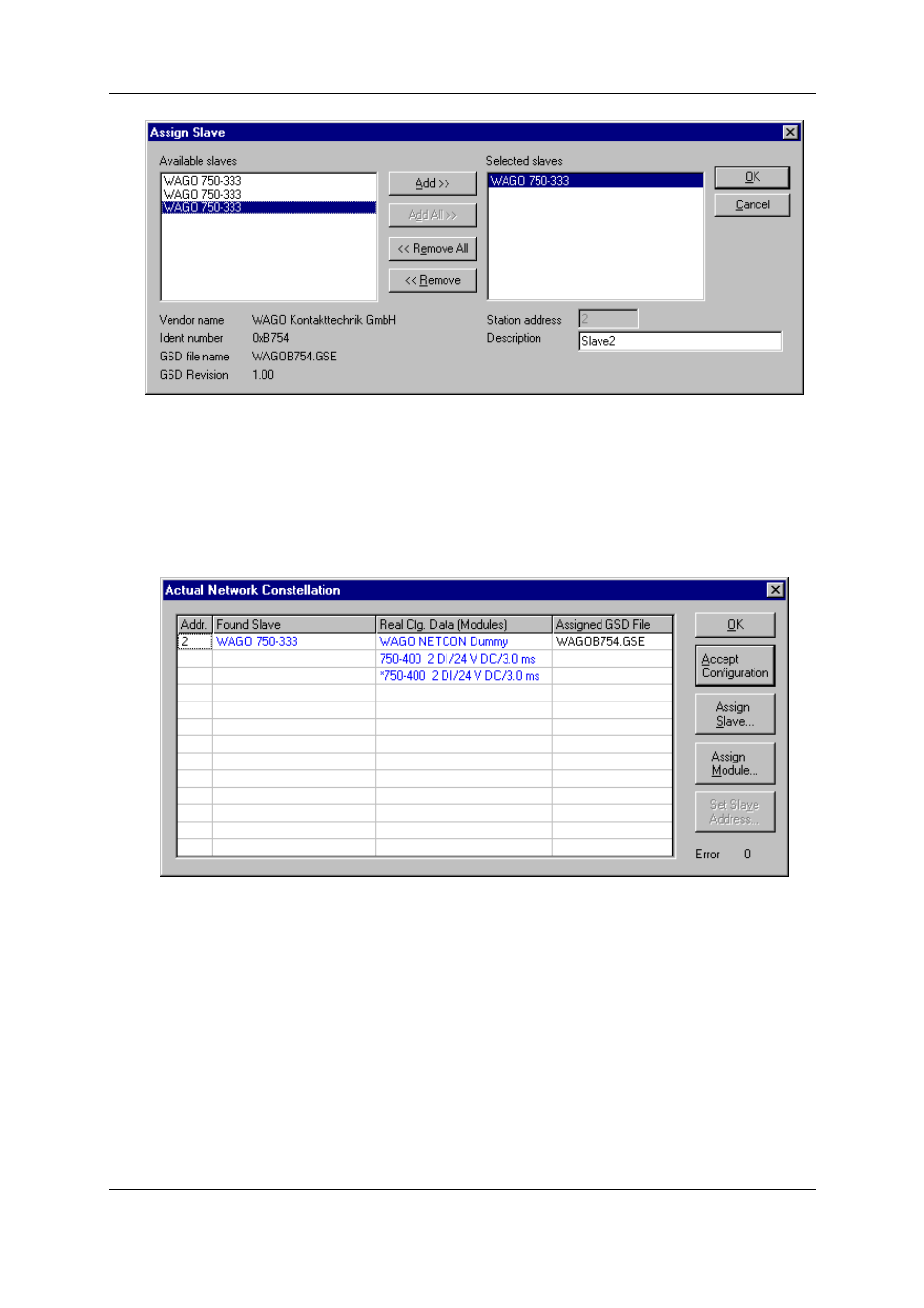

Figure 39: Online > Automatic Network Scan > Assign Slave


All devices found during the Automatic Network Scan appear in the Selected Slaves. By clicking the
Remove button a device may be removed and another device may be insert in the Actual Network
Configuration.
For this select a device by clicking on it. Click the Add button to put it into the right list. By pressing
the OK button the device is assigned to the Actual Network Configuration:
















Figure 40: Change of the GSD against a GSE file


This picture shows a change of the WAGOB754.GSD for the WAGOB754.GSE.

8.7 Assign

Module

It may be that more than one Configuration Data for a device was found during the network scan.
Clicking the button Assign Module in the Network Scan window allows the selection of suitable
modules for the assigned GSD file.
