9.4 Compare

Configuration

The configuration can be read from the DP Slave via the PROFIBUS in debug mode. This information
is displayed in the upper part of the window Compare Configuration.
In the lower part of the window, the configuration is displayed and compared as set in the HSystem
Configurator.

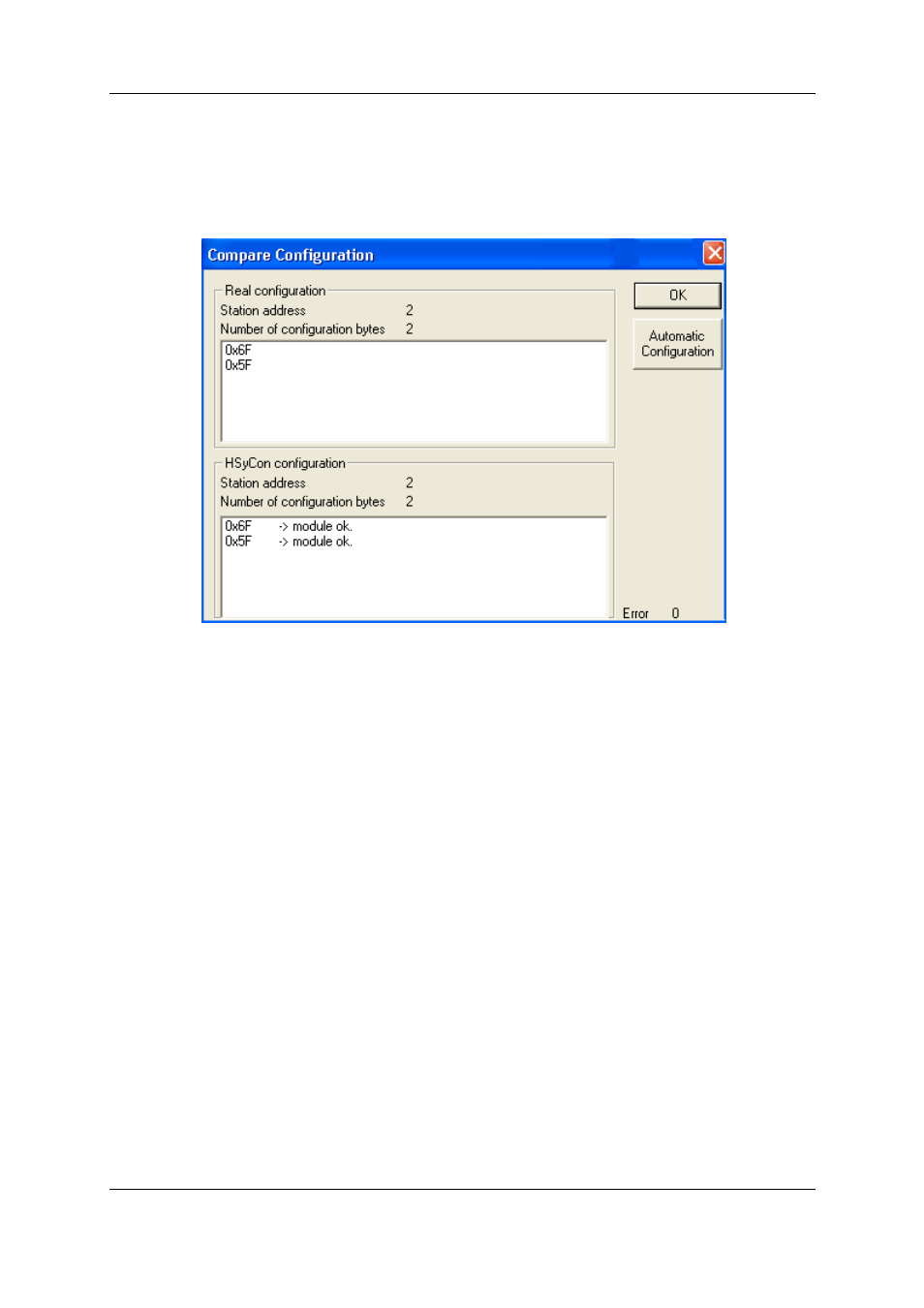

Figure 48: Online > Device Diagnostic > Compare Configuration



Note: Some DP Slaves only give default configuration when read out via the PROFIBUS. To use this
function the DP Slave must support it.
