Profibus Modules User Manual

EO 09-0009

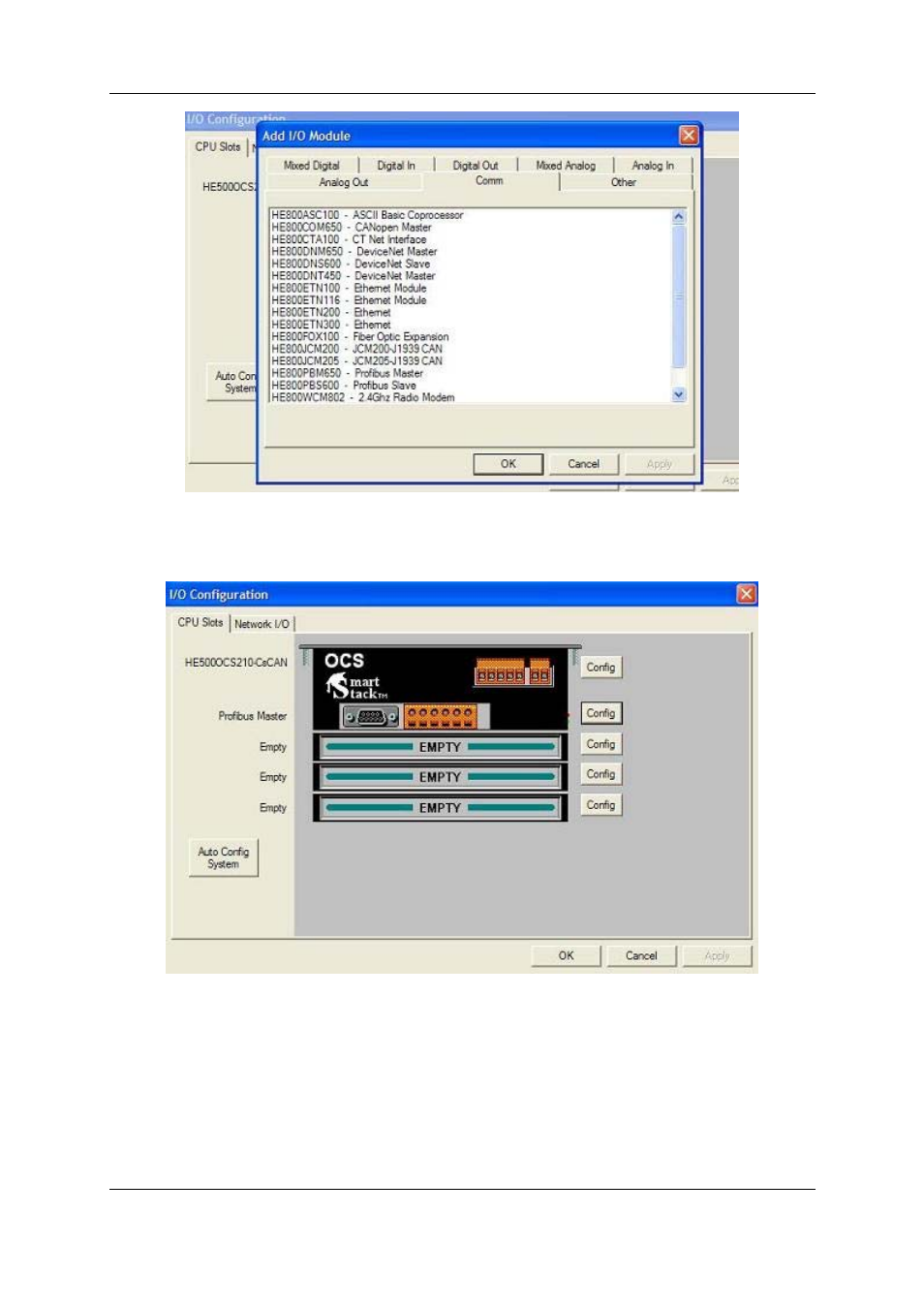

Figure 3.3

The selected module is now visibly attached to the main unit and can be configured.

Figure 3.4

Select the CONFIG button adjacent to the module. Then select the MODULE SETUP tab.
