Getting Started

MAN0575-04-EN

PAGE 13 of 97

© Horner APG.This drawing is the property of Horner APG. And shall not be disclosed or reproduced except as specifically authorised.

Profibus Modules User Manual

EO 09-0009

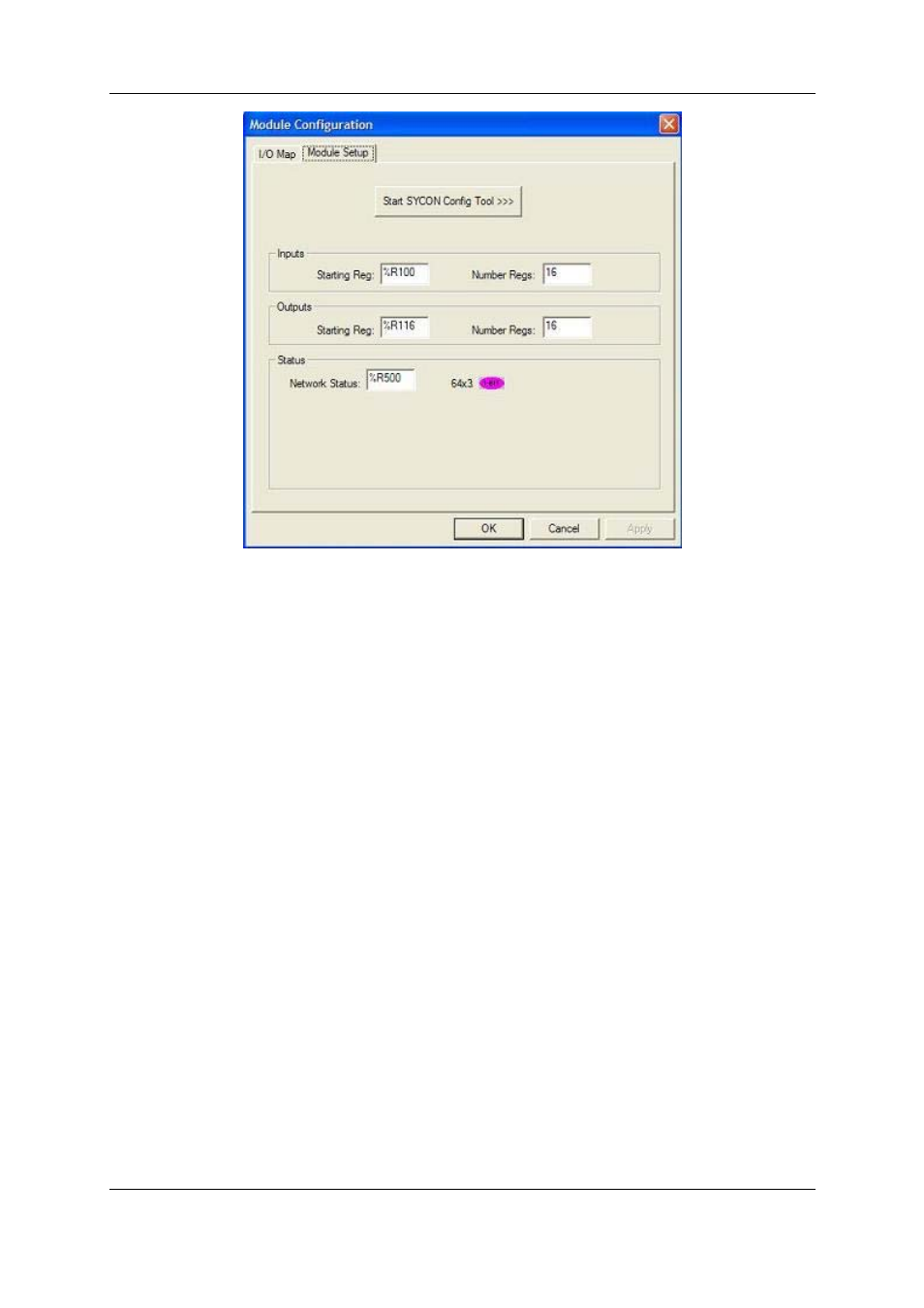

Figure 3.5

Configure the Inputs and Outputs.

NOTE:

INPUTS:
means data coming FROM the Network VIA the PBM/PBS Module to the OCS Registers.

OUTPUTS:
means data going TO the NETWORK VIA the PBM/PBS Module from the OCS Registers.

In Figure 3.5 above, For both Inputs and Outputs, 16 %R registers are used. The OCS %R registers
are retentive, general purpose, 16 bit registers.
















It is VERY important that the number of registers used for both Inputs and Outputs in Cscape
is identical to the number setup in the Hsycon software when setting up the PBM650 and
PBS600 modules. See Figure 3.6 below.
