CH9: Diagnostics

MAN0575-04-EN

PAGE 65 of 97

© Horner APG.This drawing is the property of Horner APG. And shall not be disclosed or reproduced except as specifically authorised.

Profibus Modules User Manual

EO 09-0009

9.5

Extended DP Slave Diagnostic

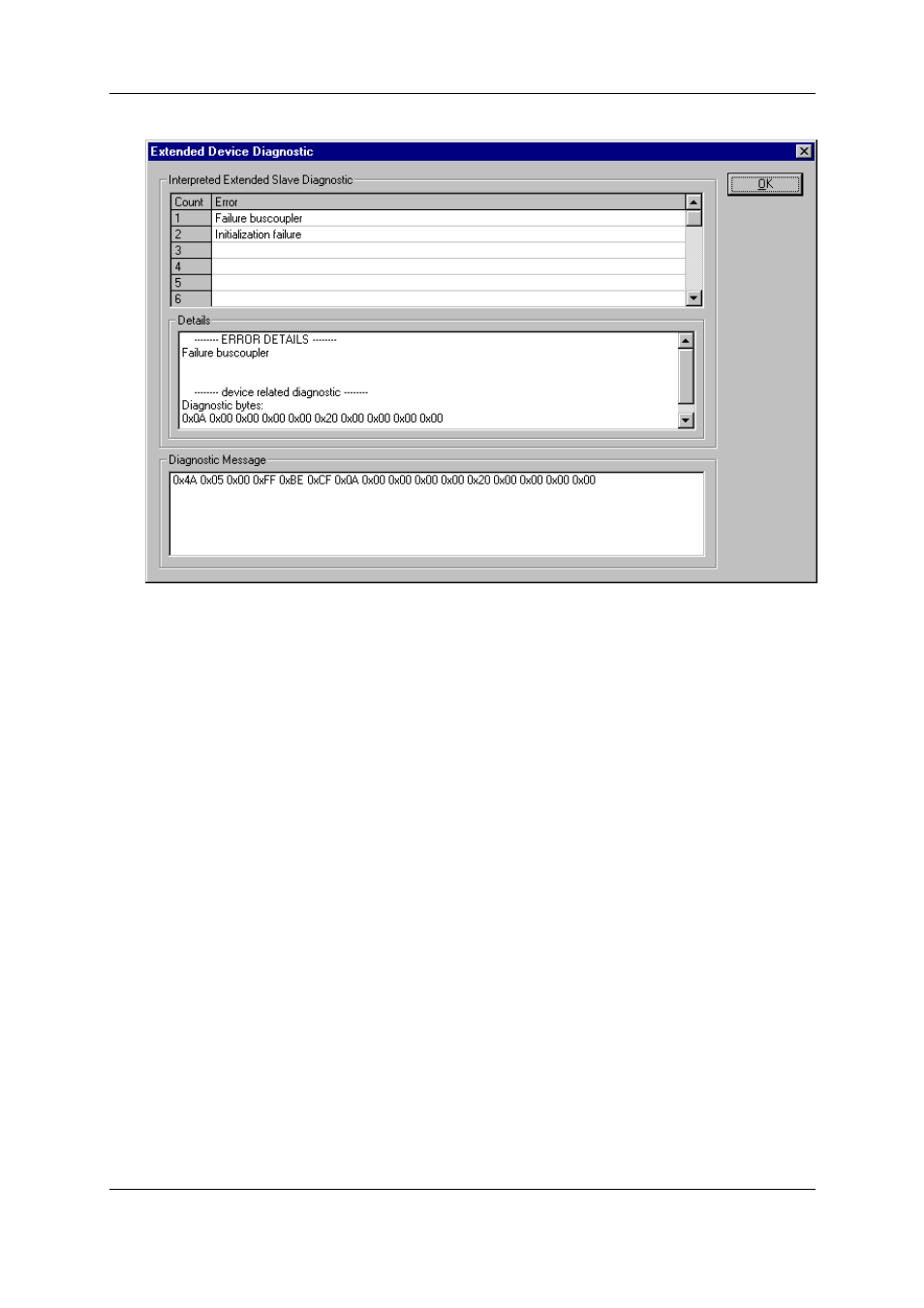

Figure 49: Device Diagnostic (PROFIBUS-DP extended diagnostic)


The Extended Device Diagnostic window shows a diagnostic telegram as a Hex dump. Here, the
first 6 Bytes are the standard diagnostic Bytes as described in section PROFIBUS DP Device
Diagnostic.

The Extended Device Diagnostic starts at the 7

th

Byte. This is manufacturer specific and can contain

Station related diagnostic.

Modul related diagnostic.

Channel related diagnostic.

The middle region of the window shows details and the top region the diagnostic report in clear text to
the extent given in the GSD file.

Note: To evaluate the extended (manufacturer specific) diagnostic read the device description of the
manufacturer.
