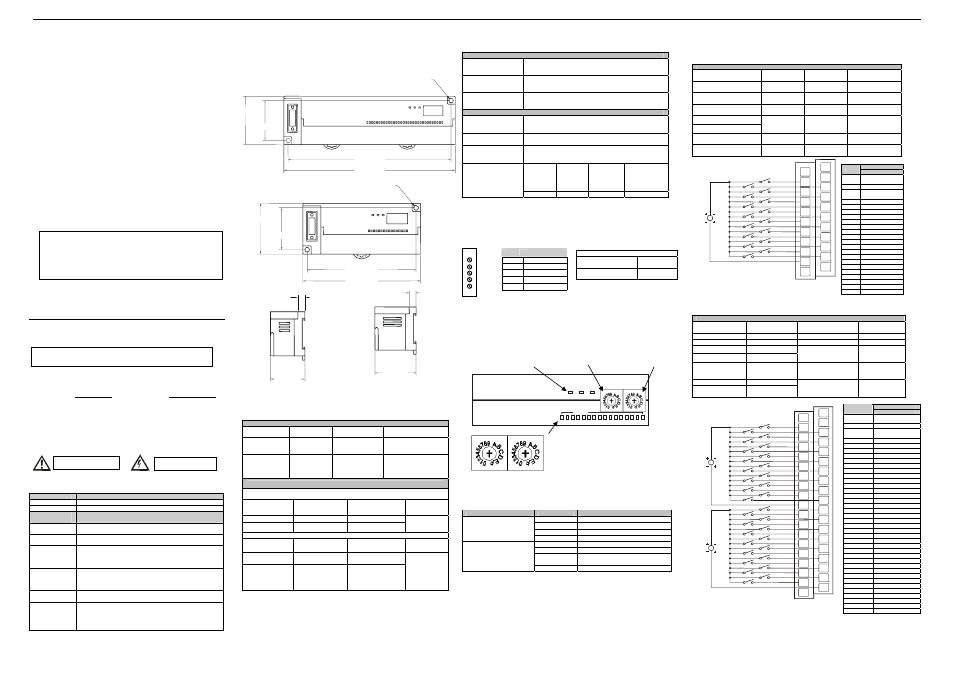

Horner APG SmartStix HE559 User Manual
Smartstix, Remote i/o for the ocs/rcs family, Dqm601

MAN0519-10
_______
Specifications / Installation
_________________________________________________________________________________________________________________________________________________________________________________________________________
02/24/2009 Page 1 of 3
ECN # 952
SmartStix
™
User Manual for the CsCAN
Versions (HE550 or HE559) of:
DQM601
DQM606
DQM701
DQM706
DIM610
DIM710
DIQ811
DIQ816
DQM602
Remote I/O for the
OCS/RCS Family
20 February 2009
MAN0519-10
1 Technical
Support
For user manual updates and technical assistance, contact Technical Support:
North America: (317) 916-4274
or visit our website at www.heapg.com.
Europe: (+) 353-21-4321-266
or visit our website at www.horner-apg.com.
2
Installation / Safety
a. All applicable codes and standards need to be followed in the installation of this product.
b. For I/O wiring (discrete), use the following wire type or equivalent: Belden 9918, 18 AWG
or larger.
c. For detailed installation and programming information, refer to the Control Station
Hardware Manual.
3
Model Numbers
Model Prefix
Description
HE550
CsCAN model with non-removable terminal strip
HE559
CsCAN model with removable terminal strip
Long or Short
Dimension
Description
DIM610
(Short)
16 DC Inputs (24VDC, positive/negative logic)
DIM710
(Long)
32 DC Inputs (24VDC, positive/negative logic)
DQM601 / 606*
(Short)
16 DC Outputs (24VDC, negative logic, 0.5A)
(Note: If using DQM601 with a non-removable terminal strip, the
output rating is 0.1A.)
(* DQM606 uses positive logic.)
DQM701 / 706**
(Long)
32 DC Outputs (24VDC, negative logic, 0.5A)
(Note: If using DQM701 with a non-removable terminal strip, the
output rating is 0.1A.)
(** DQM706 uses positive logic.)
DQM602
(Long)
16 Relay Outputs (250VAC, 30VDC, 2.0A)
DIQ811 / 816***
(Long)
16 DC Inputs (24VDC, positive/negative logic)
16 DC Outputs (24VDC, negative logic, 0.5A)
(Note: If using DIQ811 with a non-removable terminal strip, the
output rating is 0.1A.)
(*** DIQ816 uses positive logic.)
4 Dimensions
a. Long Dimensions
SmartStix modules come in two sizes depending upon the model number. See
Section 3 to determine if a module has long or short dimensions.
b. Short Dimensions
c. Terminal Strips
5 General
Specifications
General Specifications
Storage
Temperature
-25
° to 70° C
Operating and
Storage Humidity
5 to 95% Non-condensing
Operating
Temperature
0
° to 55° C
Pollution degree
2 or lower
Atmosphere
Free from
corrosive gases
and excessive
dust
Cooling method
Self-cooling
Vibration
Occasional Vibration
Frequency Acceleration Amplitude
Sweep
Count
10
≤ f < 57 Hz
- 0.075
mm
57
≤ f ≤ 150 Hz
9.8 m/s
2
{1G} -
10 times in
each direction
for X,Y,Z
Continuous Vibration
Frequency Acceleration Amplitude
Sweep
Count
10
≤ f <
57 Hz
- 0.035
mm
57
≤ f ≤
150 Hz
4.9 m/s
2
{0.5G} -
10 times in
each direction
for X,Y,Z
Shocks
Maximum shock
acceleration
147 m/s
2
{15G}
Duration Time
11 ms.
Pulse Wave
Half sine wave pulse (3 times in each of X, Y, Z directions)
Noise Immunity
Square wave impulse
noise
AC: ± 1,500VDC
DC: ± 900VDC
Electrostatic
Discharge
Voltage: 4kV (contact discharge)
Radiated
electromagnetic field
27 – 500MHz, 10V/m
Severity
level
All power
modules
Digital I/Os
(Ue
≥24V)
Digital I/Os
(Ue < 24 V)
Analog I/Os
Communication
I/Os
Fast Transient
Burst Noise
Voltage
2 kV
1 kV
0.25 kV
6 Network
Cable
For detailed wiring information, refer to the Control Station Hardware Manual. A handy
checklist is provided that covers panel box layout requirements and minimum clearances. See
Section 1 for our web address.
Pin
Description
RED
1 V+
WHT
2 CAN_H
NC
3 No
Connection
BLU
4 CAN_L
BLK
5 V-
7 ID
Switches
(Setting CsCAN Network Ids)
CsCAN Network IDs are set using the hexadecimal number system from 01 to FD. The decimal
equivalent is 1-253. Refer to Section 10, which shows the decimal equivalent of hexadecimal
numbers. Set a unique Network ID by inserting a small Phillips screwdriver into the two identical
switches. Note: The CsCAN Baud Rate for SmartStix I/O is fixed at 125KBaud
8 LEDs
a. Diagnostic LED Indicators
Diagnostic LED
State
Meaning
Solid Red
RAM or ROM test failed
Blinking Red
I/O test failed
Blinking Green
Module is in power-up state
MS: (indicates fault status of
Module )
Solid Green
Module is running normally
Solid Red
Network Ack or Dup ID test failed
Blinking Red
Network ID test failed
Blinking Green
Module is in Life Expectancy default
state
NS: (indicates fault status of
Network)
Solid Green
Network is running normally
b. Status LED Indicators
The Power Status LED illuminates Red when power is applied to the module. There are I/O Status
LED indicators for each of the Digital I/O points, which illuminate Red when an I/O point is ON.
9 SmartStix
Modules
a.
DIM610: 16 DC IN, Positive / Negative Logic
DIM610 Specifications
Number of input points
16
OFF to ON
Response
0 - 3ms. or less
Rated Input Current
7mA
ON to OFF
Response
0 - 3ms. or less
ON Voltage Level
19VDC or less
Common
Terminal
16 points / COM
OFF Voltage Level
6VDC or less
Operating
Indicator
LED turns on during
ON state of input
Input Characteristics
Bidirectional
Isolation Method
Photo Coupler
External
Connections
Terminal block
connector (M3 x 6
screws)
Rated Voltage
11 – 25 VDC
Altitude for
use
Up to 2,000m
Internal power
Consumption (mA)
200mA
Weight
5.6 oz. (159 g)
b.
DIM710: 32VDC IN, Positive / Negative Logic
DIM710 INPUTS
Number of input
points
32
OFF to ON Response
0 - 3ms. or less
Rated Input Current
7mA
ON to OFF Response
0 - 3ms. or less
ON Voltage Level
19VDC or less
Common Terminal
16 points / COM
OFF Voltage Level
6VDC or less
Isolation Method
Photo Coupler
Operating Indicator
LED turns on
during ON state
of input
Input
Characteristics
Bidirectional
External Connections
Terminal block
connector (M3 x
6 screws)
Rated Voltage
11 – 25 VDC
Internal power
Consumption (mA)
300
Weight
8.36oz. (237 g)
