CH9: Diagnostics

MAN0575-04-EN

PAGE 58 of 97

© Horner APG.This drawing is the property of Horner APG. And shall not be disclosed or reproduced except as specifically authorised.

Profibus Modules User Manual

EO 09-0009

CHAPTER 9 : DIAGNOSTIC FUNCTIONS



9.1 Live

List

First, the desired device must be chosen with a left mouse click on the symbol of the device. Then,
select the Online > Live List menu to get an overview over all active devices at the PROFIBUS
network.

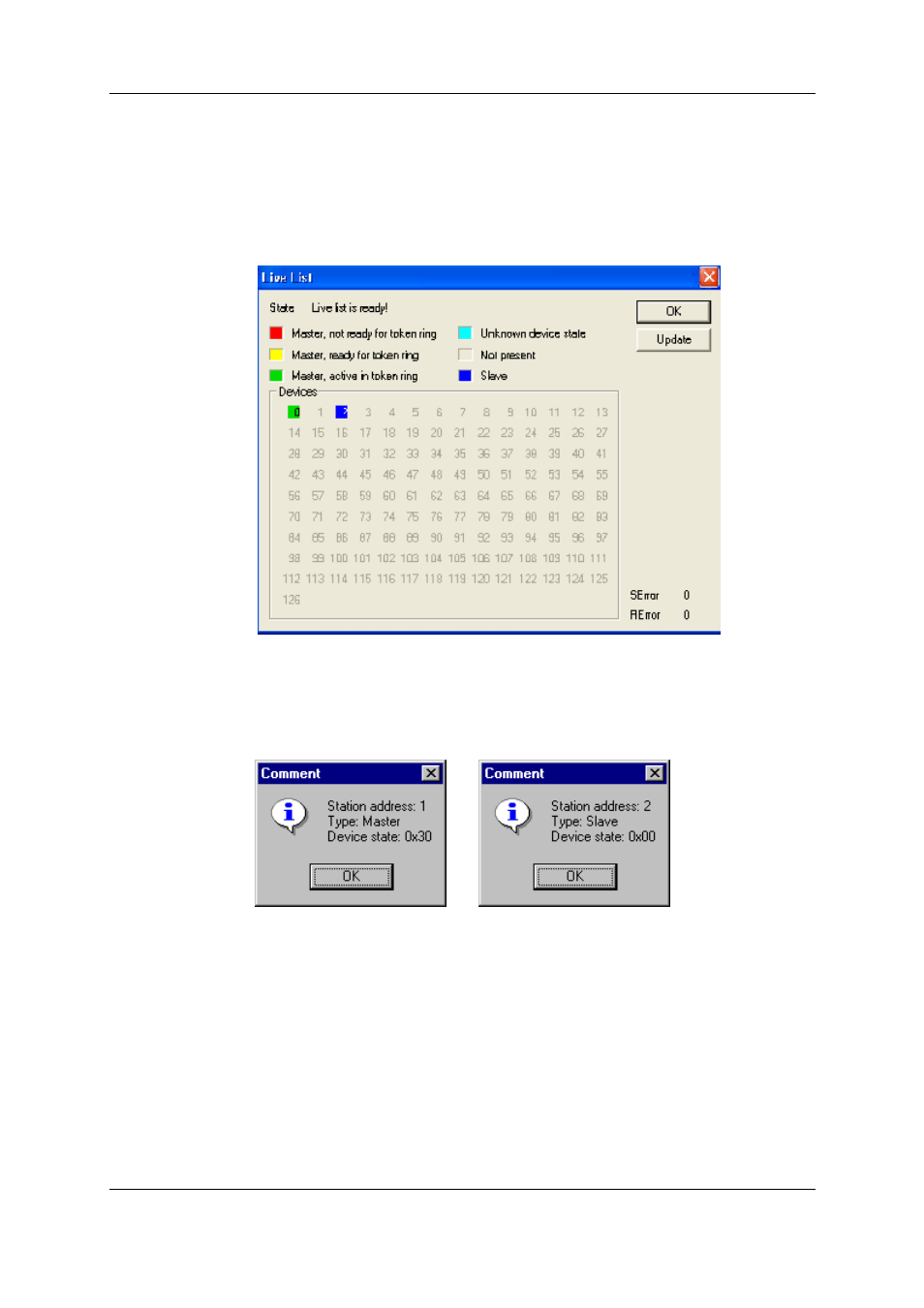

Figure 44: Online > Live List

A green number shows a Master and a blue number a Slave, whereby the number indicates the
Station address. The meaning of the other colours is given in the list above the table.
A click on a coloured number brings up its device type and status of the station.

Figure 45: Device type and device status of a Master and a Slave

The display is not automatically updated as this function loads the PROFIBUS network. However, the
Live List can be renewed with the Update button.

9.2

Debug Mode (PROFIBUS-DP)

First the Master device must be chosen with a left mouse click on the symbol of the Master device.
Then, select the Online > Start Debug Mode menu. The System Configurator cyclically interrogates
the status of the network communication on the module and the individual condition of the device.
To end the Debug Mode select the menu Online > Stop Debug Mode.
When the debug session is started, the configuration window changes into the debug window. The
devices and the line between them are displayed in green or red colour depending on the established
network communication.
