Profibus configuration

MAN0575-04-EN

PAGE 23 of 97

© Horner APG.This drawing is the property of Horner APG. And shall not be disclosed or reproduced except as specifically authorised.

Profibus Modules User Manual

EO 09-0009

4.4 Master

Configuration


The Master-specific configuration is carried out in the following window. Set the focus on the Master
(left mouse click) and then select the Settings > Master Configuration menu or double click on the
symbol of the Master to be configured, the following window will open.

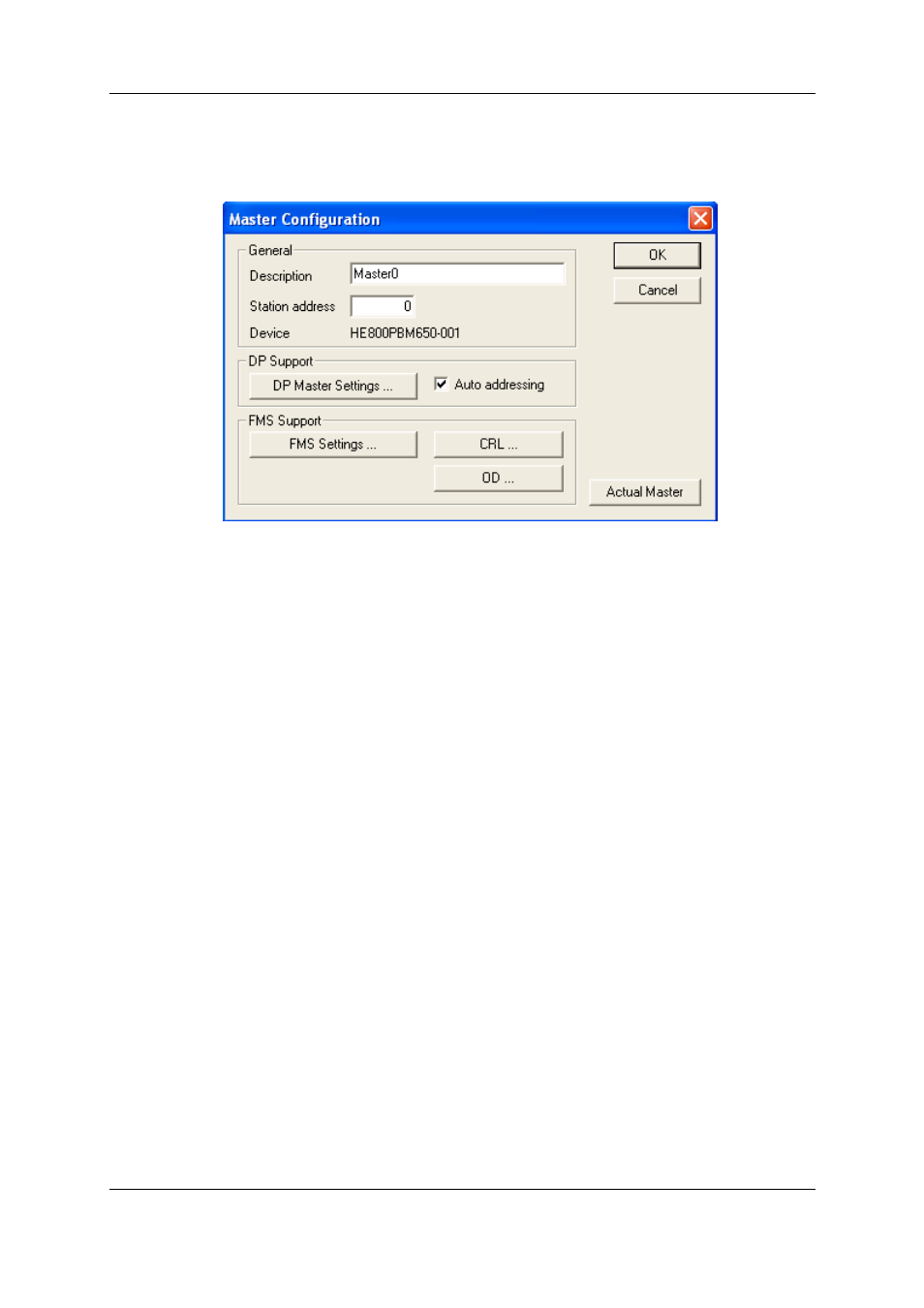

Figure 2: Settings > Master Configuration

The following can be set in this Master Configuration window:

• A

(symbolic)

Description of the Master

• The

Station address of the Master

• Selection of the Master as the Actual Master (for example as the download target)

The following parameters may be set for PROFIBUS-DP:

• Open the DP Master Settings window

• Activate or deactivate the automatic addressing (Auto addressing) for this DP Master.
