Director Element Manager user guide 39
Cooling fan module
Double-click a fan module on the Rear view to display the FRU Properties dialog box for the module.
This option is also available when you click the fan module and select Product > FRU on the menu
bar.
SBAR Card menu
Double-click a serial crossbar (SBAR) to display its FRU Properties dialog box. Right-click an SBAR
card to display the following options:
• FRU Properties
• Enable Card Beaconing
• Switchover
These options are also available when you click the SBAR card and select Product > FRU on the
menu bar.
For details see ”
SBAR Card menu ” on page 60.
Port Card view
Use this feature to display the Port Card view for a port:
• Double-click a port card in the Hardware view.
• Right-click a port card and click Open Port Card View.

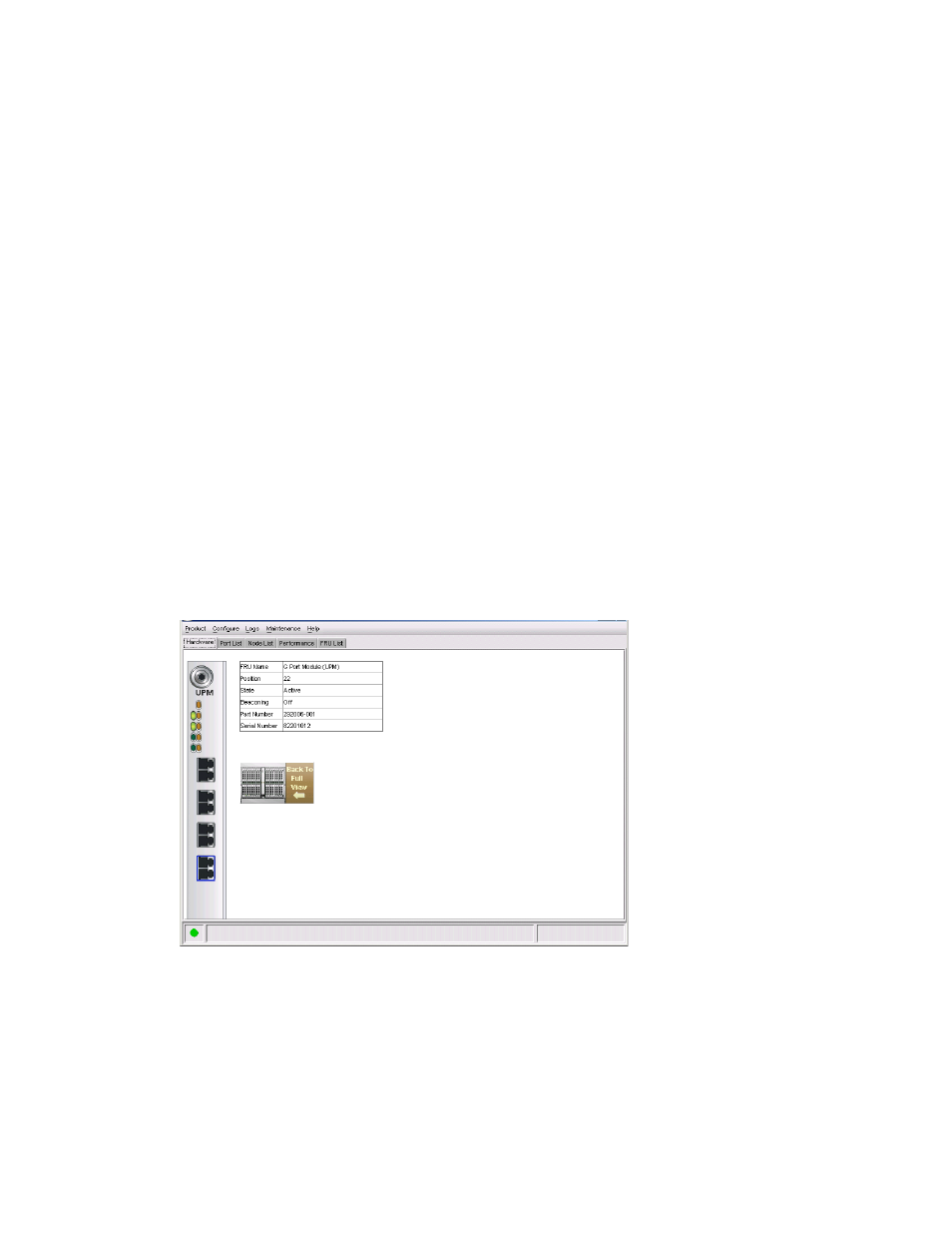

The Port Card view is displayed, as shown in Figure 7 .
Figure 7 Port Card view
