Optional features

182

The primary choice for data movement will be from the Source Device in port 14 and out port 45 on

Switch 1, in port 11 and out port 21 on Switch 2, and through Switch 3 to either Destination Device

A or B.

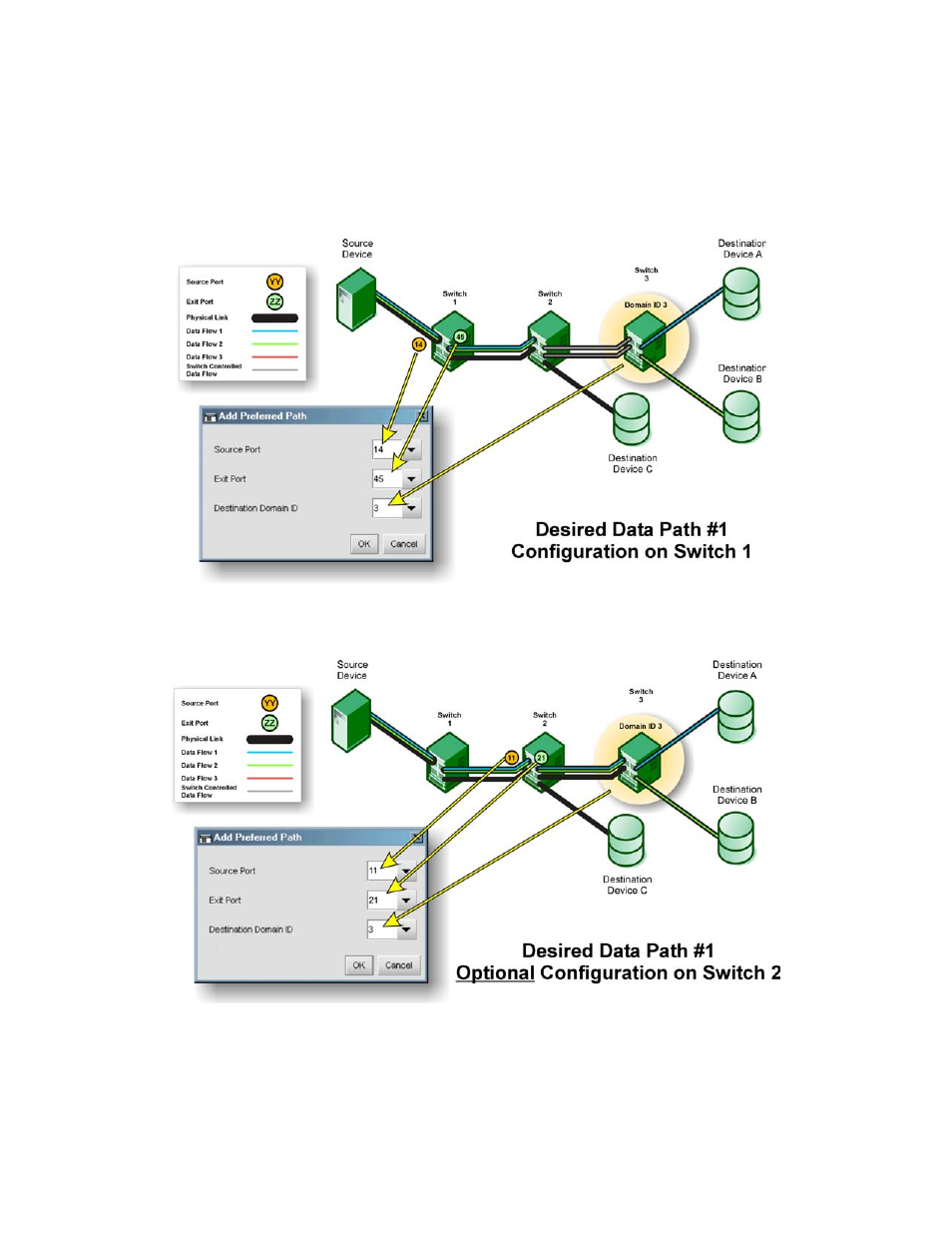

Figure 85

Specifying preferred path for switch 1

Figure 86

Specifying preferred path for switch 2
