Director Element Manager user guide 25
Opening the Element Manager
You can access the Element Manager for a director through the HAFM in either of two ways:
• In the HAFM application, double-click a director icon on the HAFM Physical/Topology Map, as
shown in Figure 2 on page 25.

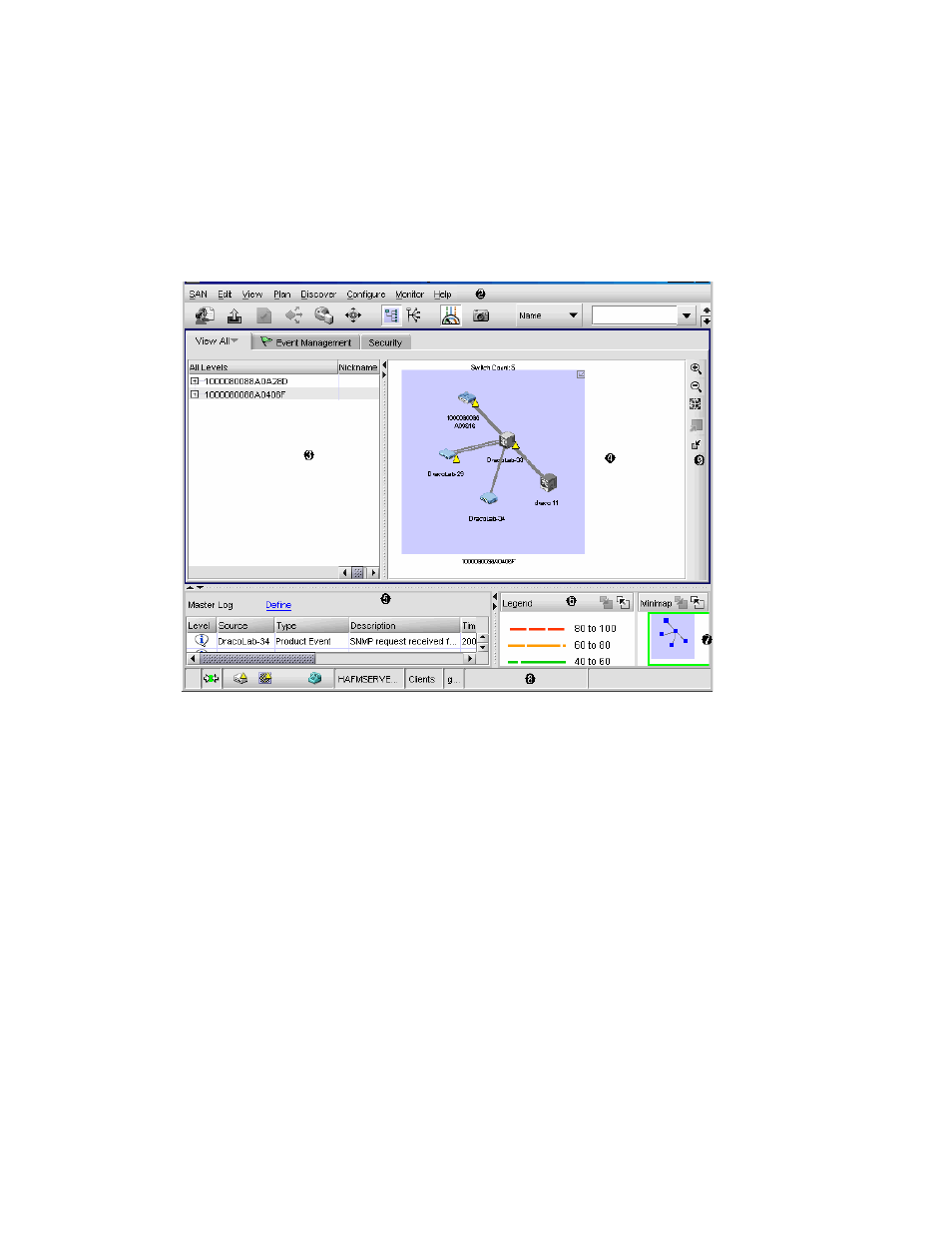

Figure 2 HAFM application desktop
The Element Manager window is displayed, showing the Hardware view for the selected
director. (See Figure 3 on page 26 or Figure 4 on page 27.)
• Right-click a director icon on the HAFM Physical/Topology Map. A pop-up menu is displayed.
Click Element Manager.
The Element Manager window is displayed, showing the Hardware view for the selected
director. (See Figure 3 on page 26 or Figure 4 on page 27.)
1 Menu bar
2 Toolbar
3 Product list
4 Physical/Topology map
5 Master log
6 Connection utilization legend
7 Minimap
8 Status bar
9 Toolbox
