Configuring ports (FICON management style)

To configure ports in FICON Management Style:

NOTE:

You cannot configure port names in the Configure Ports dialog box in FICON

Management Style. Use the Configure Addresses–“Active” dialog box.

1.

Select Configure > Ports on the menu bar.

The Configure Ports dialog box is displayed, as shown in

Figure 47

.

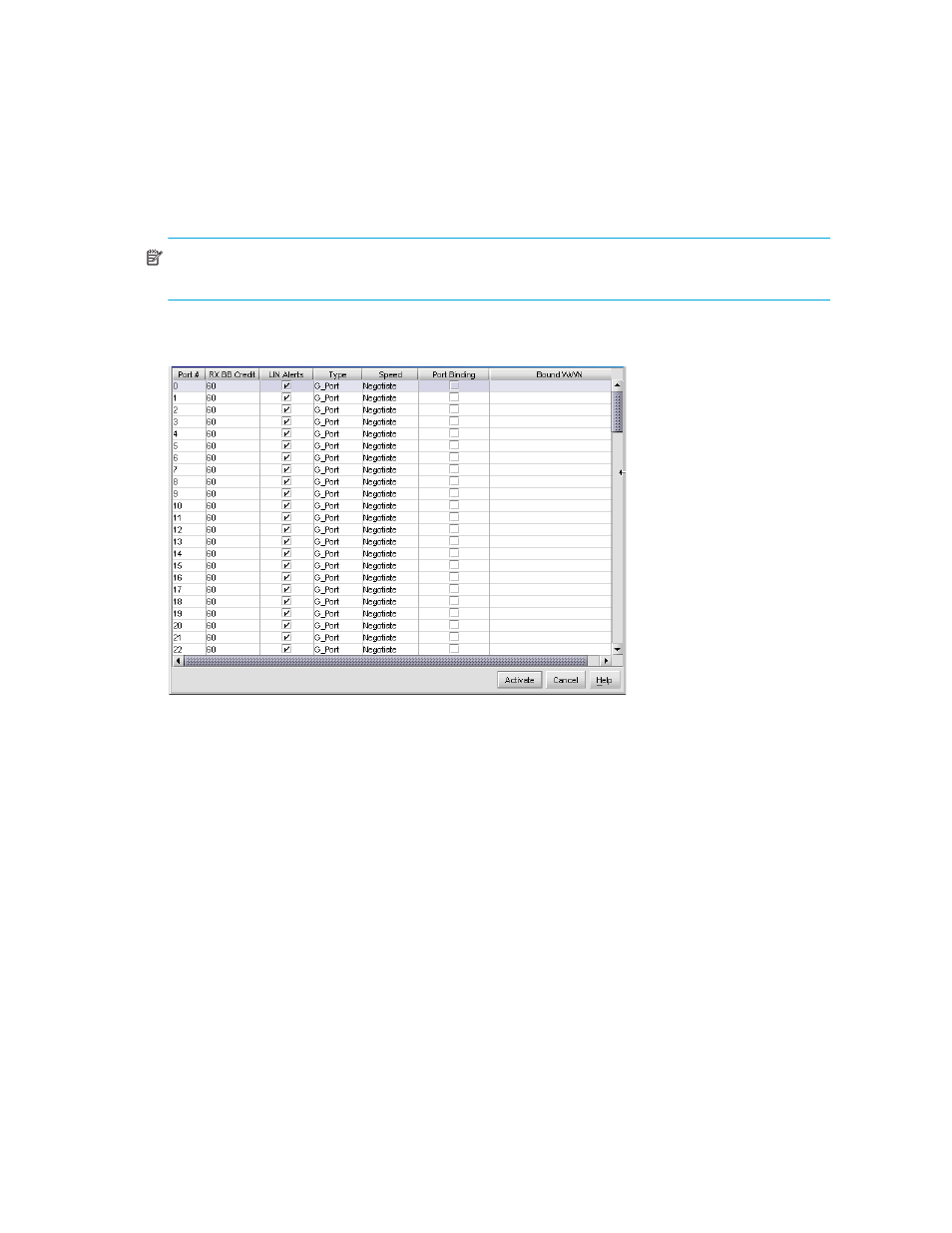

Figure 47

Configure Ports dialog box (FICON Management Style)

Ports are numbered from 0-63 on the Director 2/64, and 0–127 and 132–143 on the Director

2/140. Note that for the Director 2/140, ports 128–131 are internal ports and not available

for external connections.

2.

Click the check box in the 10-100 km column to enable or disable extended distance buffering

for the port.

3.

If a director supports BB Credit, the RX BB Credit column replaces the 10-100km column.

Use this to set minimum and maximum allowable port BB credit values as follows:
