The message displays what ports are involved in the swap, enables port beaconing on each,
and blocks the ports.
7.
Click Next to complete the operation, block ports, and enable beaconing.
Click Cancel and neither action takes place and the dialog box is closed.
The wizard Instructions box displays the next step, as shown in
.
Figure 79

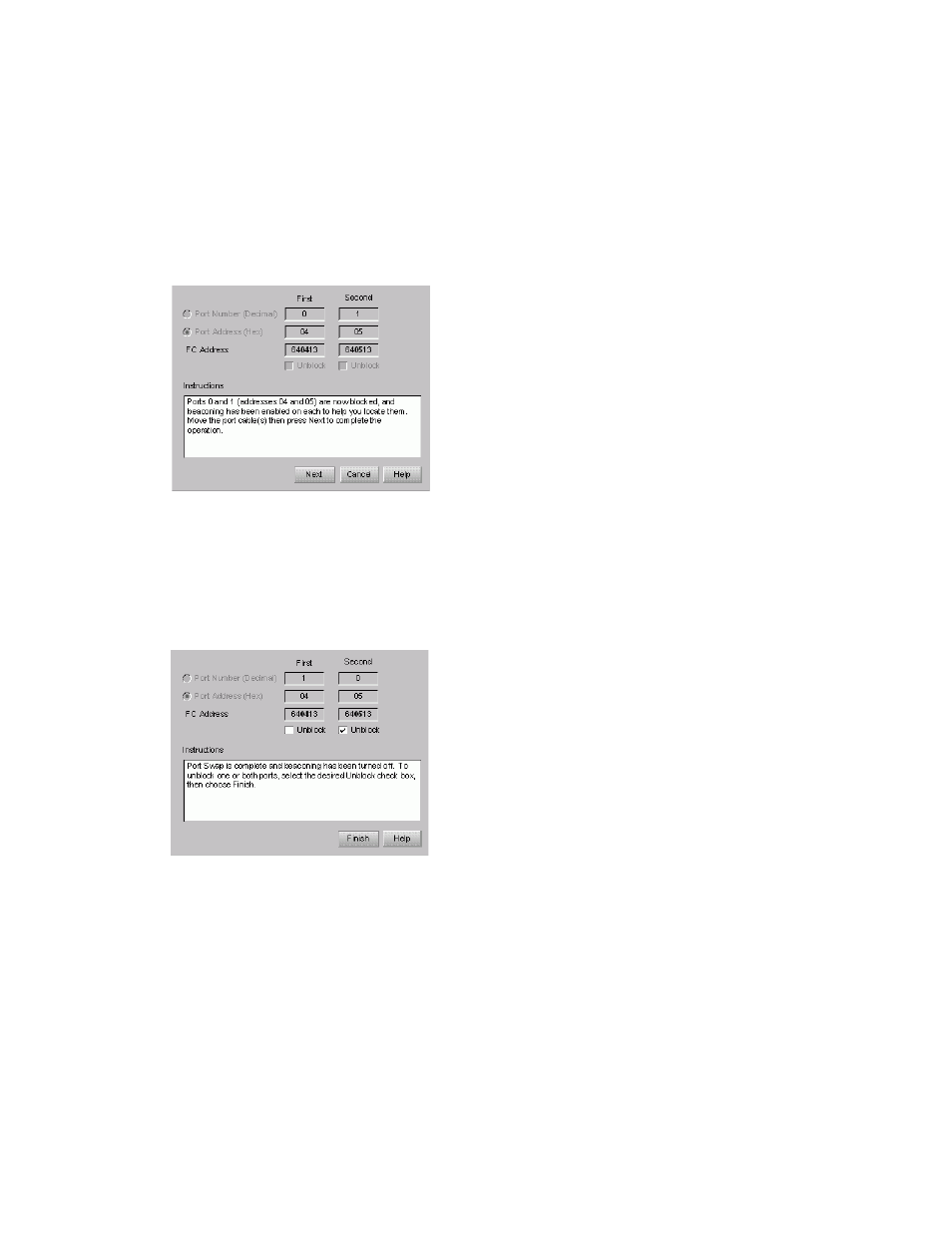

Swap Ports dialog box (step 3)
The message displays that the ports are blocked and that beaconing is enabled. The port cables
can be swapped during this step.
8.
Click Next to complete the operation and beaconing stops.
If you click Cancel, beaconing stops, but the ports remained blocked.
The wizard Instructions box displays the next step, as shown in
.
Figure 80
Swap Ports dialog box (step 4)
The message displays that the port swap is complete.
9.
Select the ports to unblock and click Finish.
