HP MPX200 Multifunction Router User Manual

Page 82

background image

5.

Set up Discovery Addressing for the software initiator:
a.

Repeat Step 4 to open the iSCSI initiator Properties dialog box.

b.

Click the Dynamic Discovery tab.

c.

Click Add to add a new iSCSI target.

The Add Send Target Server dialog box is displayed. See

“Add Send Target Server dialog

box” (page 82)

.

d.

Enter the iSCSI IP address of the MPX200.

e.

Click OK.

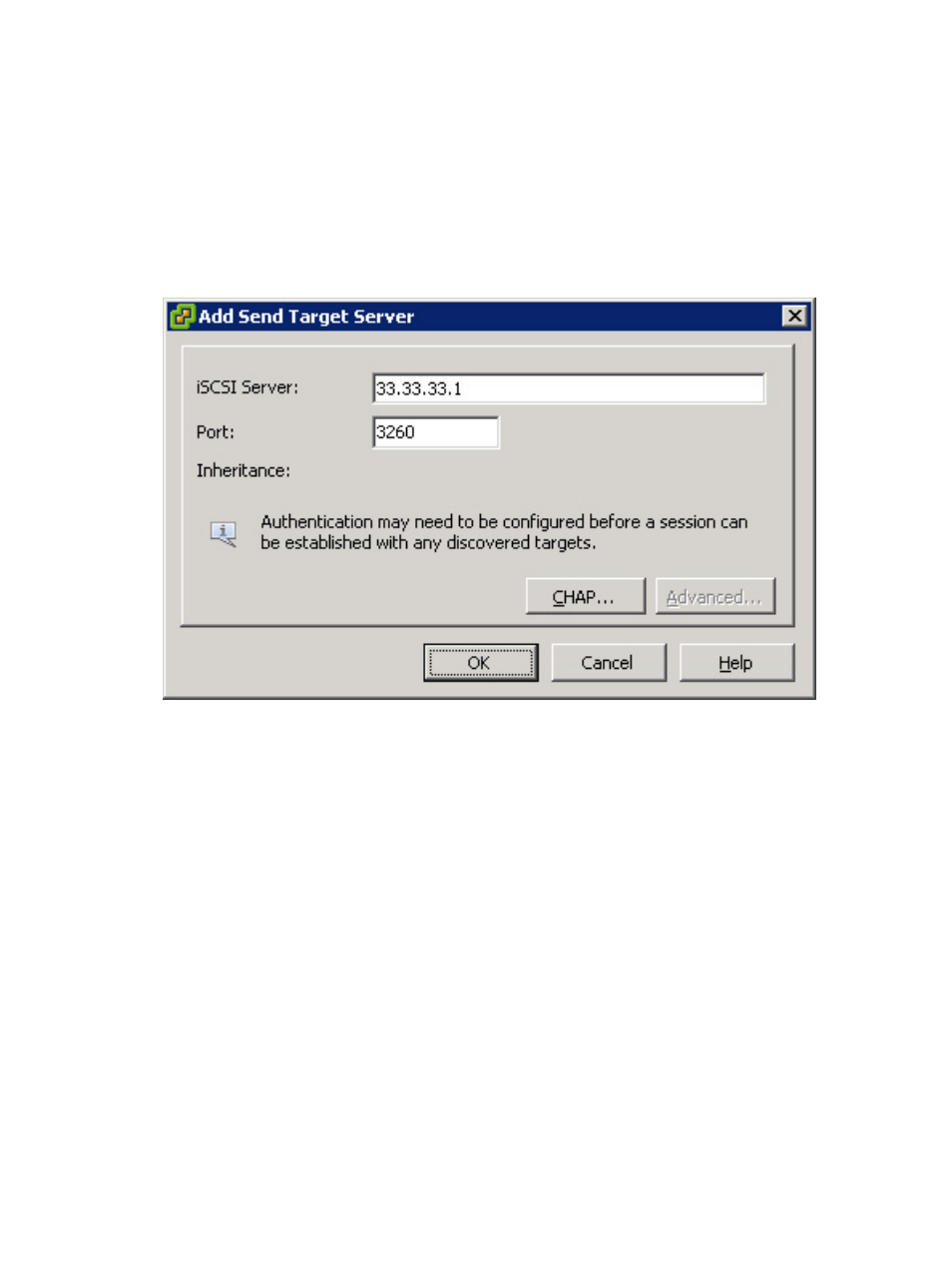

Figure 78 Add Send Target Server dialog box

82

MPX200 iSCSI configuration rules and guidelines
