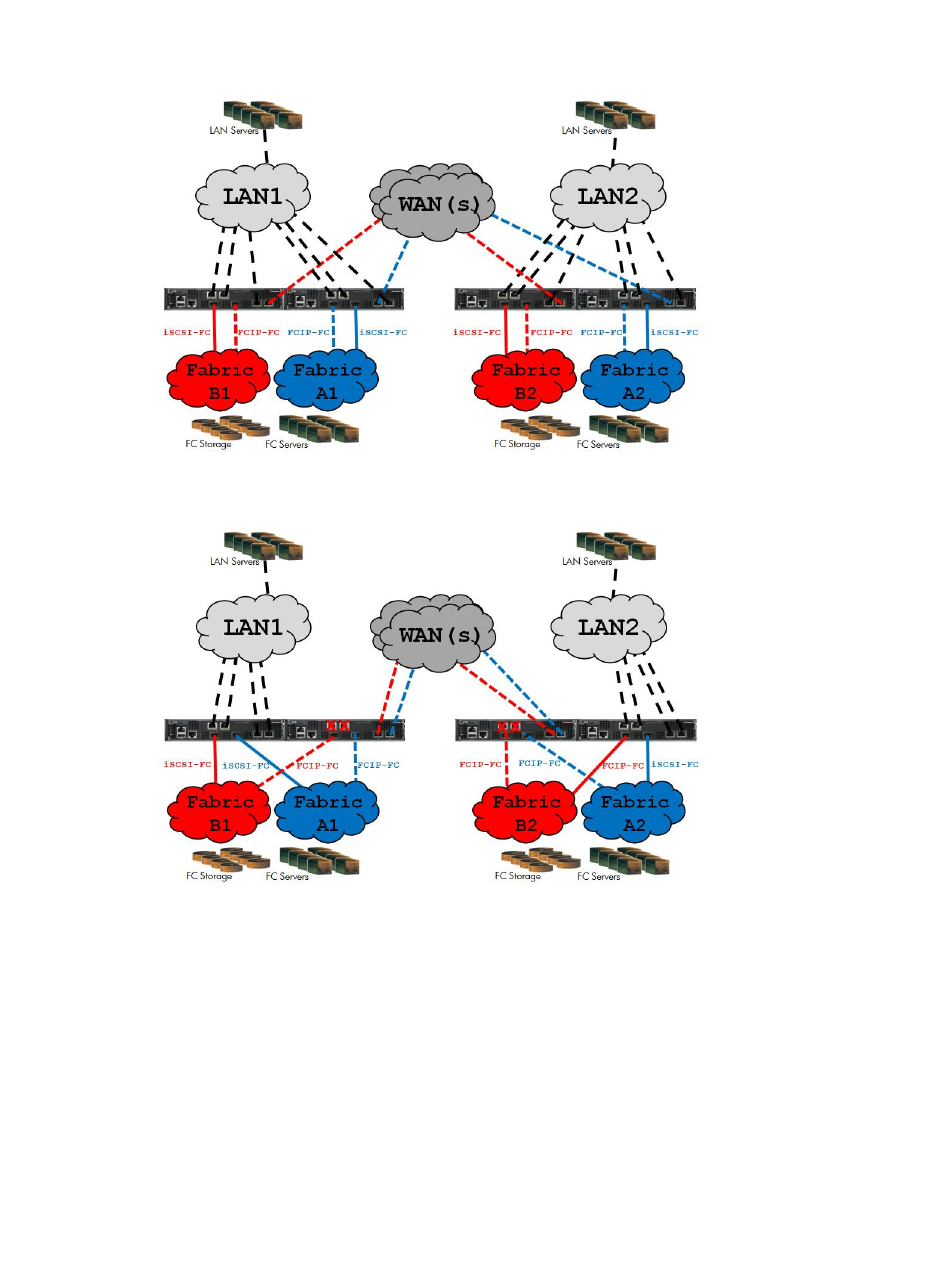

Figure 102 MPX200 simultaneous iSCSI and FCIP, both local and remote
Figure 103 MPX200 iSCSI and FCIP dedicated blades, both local and remote
HP Continuous Access 3-site configurations
This section describes the following HP Continuous Access 3-site configurations:
•
HP Continuous Access 3-site configuration with four MPX200 routers
•
HP Continuous Access 3-site configuration with six MPX200 routers
•
HP Continuous Access 3-site configuration with eight MPX200 routers
•
3-site configuration with six gateways and full inter-site connectivity
The first three configurations provide a fan-in or fan-out relationship between the sites. The fourth
configuration provides a peer-to-peer relationship between all sites.
Figure 104 (page 116) shows connectivity for three sites using four MPX200 routers, which implement
the minimum-level and lowest-cost connectivity for a 3-site configuration. Figure 105 (page 117)
MPX200 iSCSI/FCIP configurations 115
