HP MPX200 Multifunction Router - Manual (Page 72)

e. Test the connection from the initiator to the iSNS server by clicking Verify iSNS. If
successful, click Save.
If necessary, from the iSNS server, make the appropriate edits to add the Xtend SAN
iSCSI Initiator to any iSNS discovery domains that include MPX iSCSI targets.
f. Click Discover Targets, and then click Discover by iSNS.
A list of MPX targets appears under Discovered Targets ( Figure 67 (page 72) ).

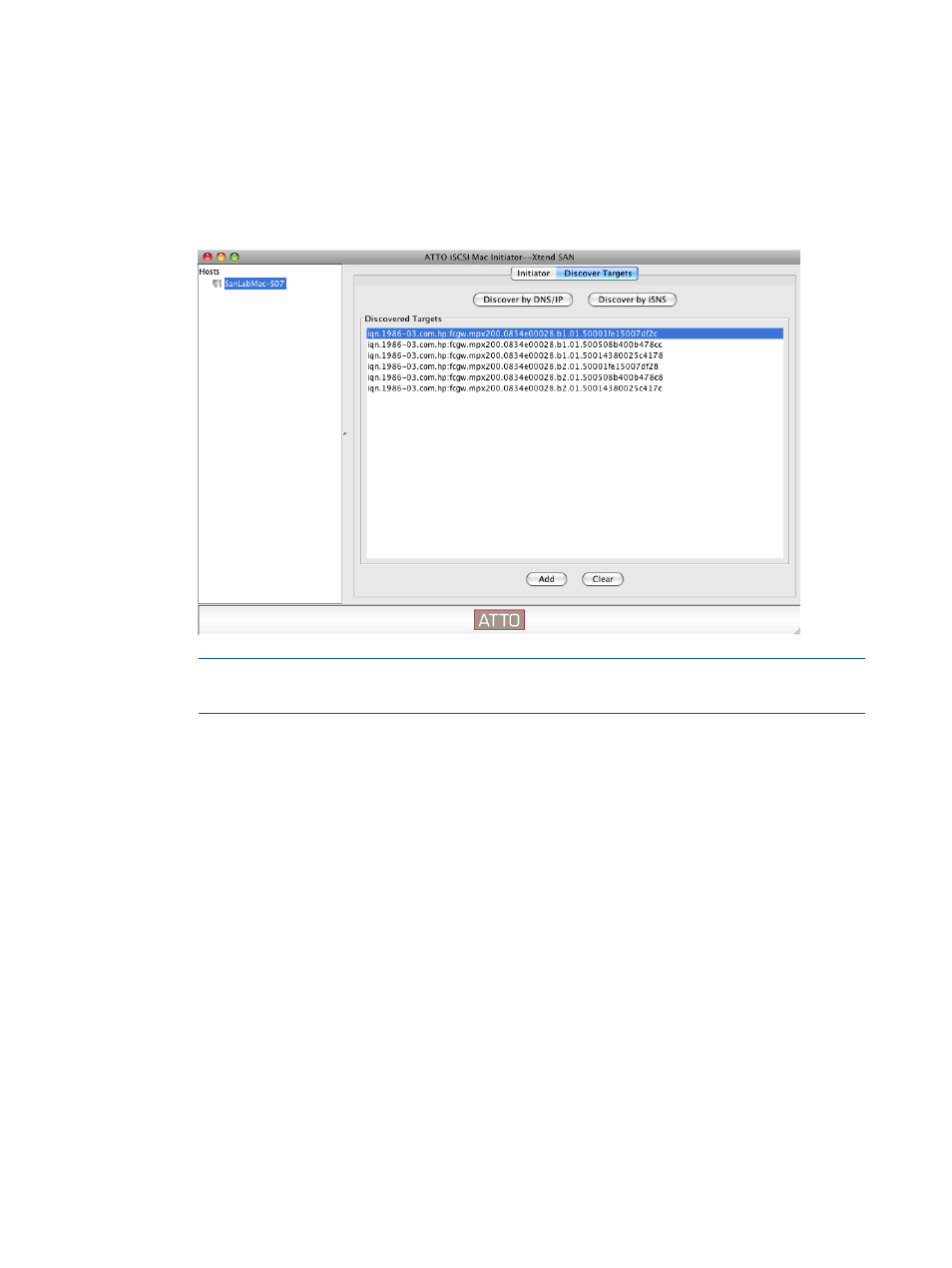

Figure 67 Discovered Targets
NOTE: The MPX iSCSI port may present several iSCSI targets to the Xtend SAN iSCSI
Initiator. Select only one target from the list.
g. Select the newly added target under Host name in the left pane.
h. Select the Visible check box to allow the initiator to display the target status
(
Figure 68 (page 73) ).
i. Select the Auto Login check box to configure the initiator to automatically log in to the
iSCSI target at system startup.
72 MPX200 iSCSI configuration rules and guidelines
