6 Managing MPX200 iSCSI for XP24000/20000

This chapter describes management procedures for configuring and managing MPX200 iSCSI
with XP24000/20000 storage systems. For more information, see

“MPX200 iSCSI configuration

rules and guidelines” (page 52)

.

Setting up the MPX200 management port

Access to the MPX200 CLI is required for initial setup. Connect to the CLI through one of the
following:

RS-232 serial port (115200/8/n/1)

Telnet

SSH

By default, the management port obtains a DHCP address. If the management port cannot obtain
a DHCP address, you must set a static IP address. HP highly recommends using static IP addresses
to retain connectivity.

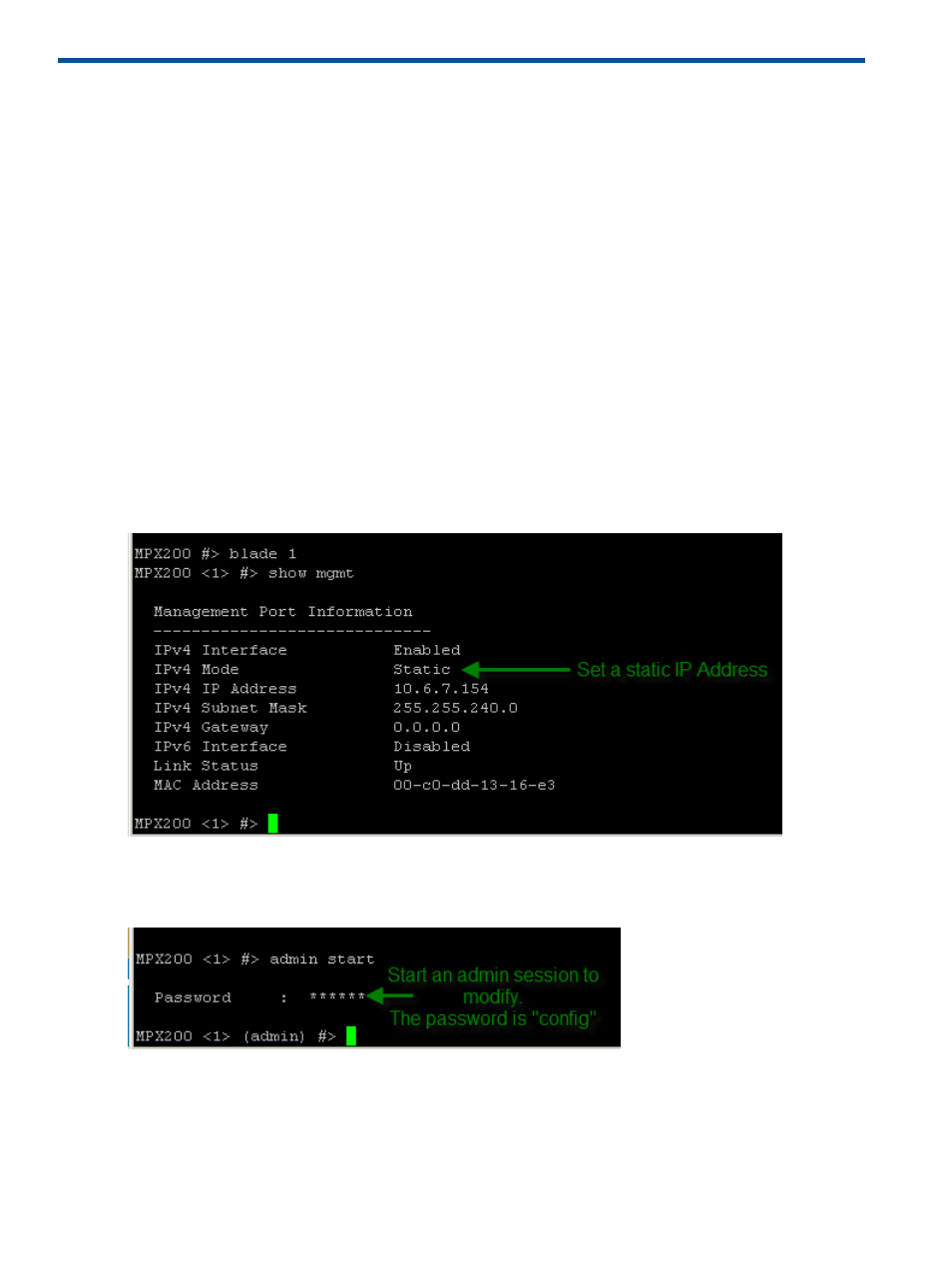

When connected, select the blade to manage by using the blade <1 | 2> command (see

Figure 41 (page 46)

).

Figure 41 The blade # command

Use the admin start command to change settings (see

Figure 42 (page 46)

).

Figure 42 The admin start command

Use the set mgmt command to setup the management port IP address (see

Figure 43 (page 47)

).
