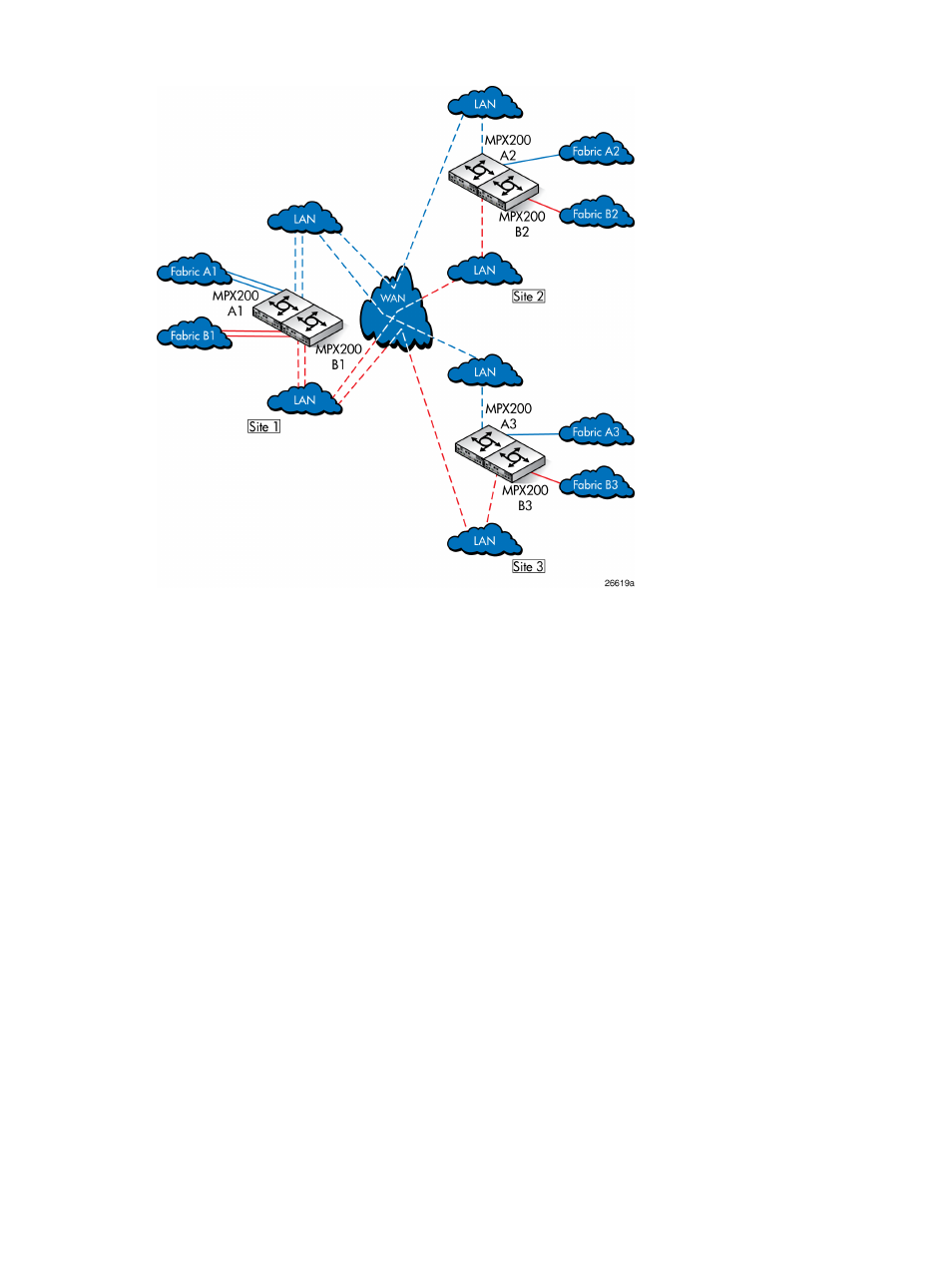

Figure 105 HP Continuous Access 3-site configuration with six MPX200 routers

3-site configuration with eight MPX200 routers

The configuration in

Figure 106 (page 118)

provides the highest 3-site redundancy, with a dedicated

MPX200 pair for all long-distance links to all three sites.

MPX200 iSCSI/FCIP configurations

117
