HP MPX200 Multifunction Router User Manual

Page 148

background image

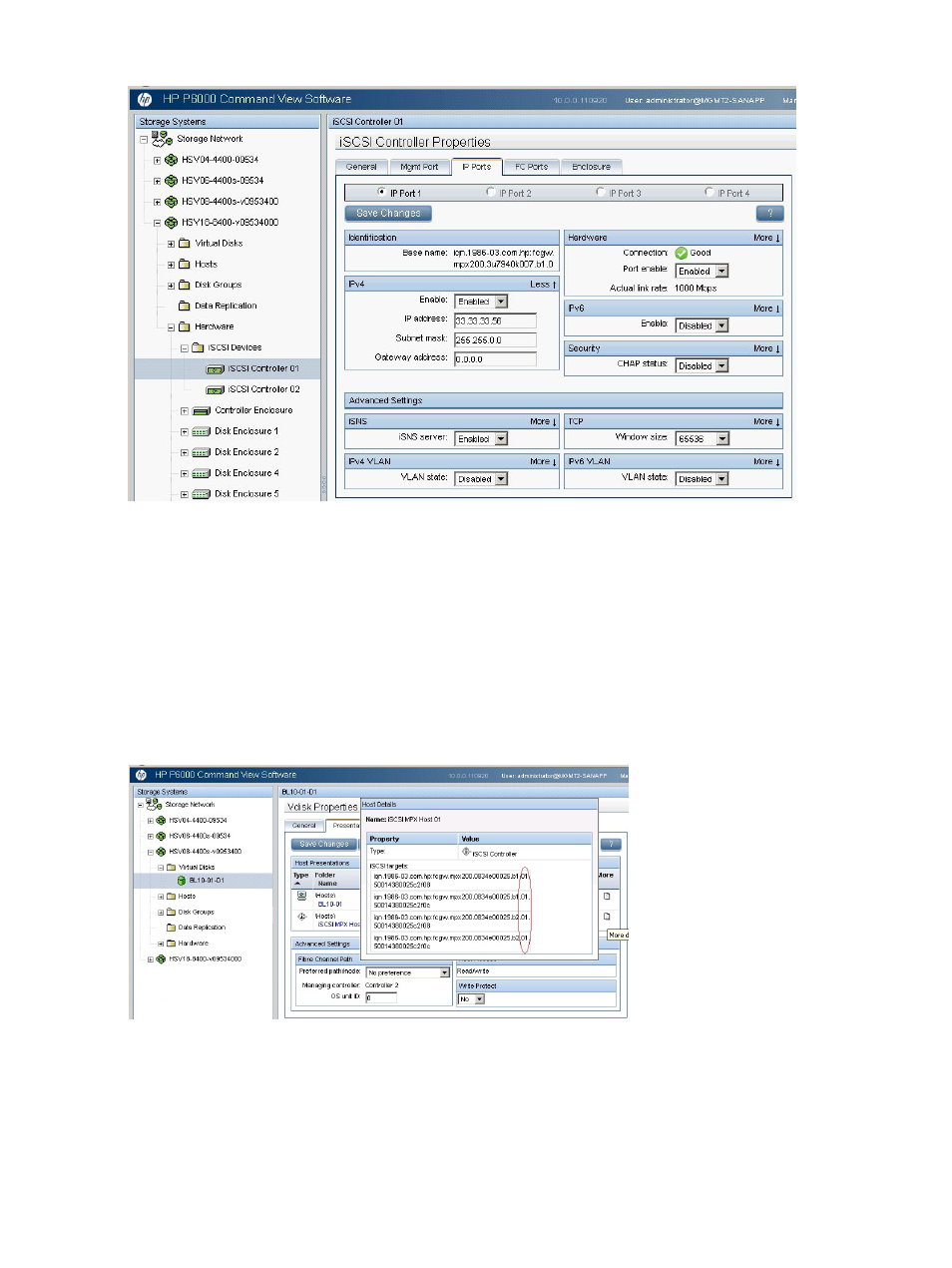

Figure 128 iSCSI controller properties: IP Ports tab

Initiator logs in to MPX200 iSCSI target, but P6000 EVA-assigned LUNs do not
appear on initiator

Solution 1: The initiator must log in to the target to which the P6000 EVA LUN was assigned.

Solution 2: The P6000 EVA LUN was assigned to a different iSCSI host than was expected.

P6000 EVA-presented virtual disk not seen by initiator

Solution: The initiator must log in to the appropriate iSCSI target. Match the virtual disk presentation
properties to the initiator’s target login. See

Figure 129 (page 148)

and

Figure 130 (page 149)

.

Figure 129 Virtual disk properties: Host details

148

Diagnostics and troubleshooting
