HP MPX200 Multifunction Router User Manual

Page 33

background image

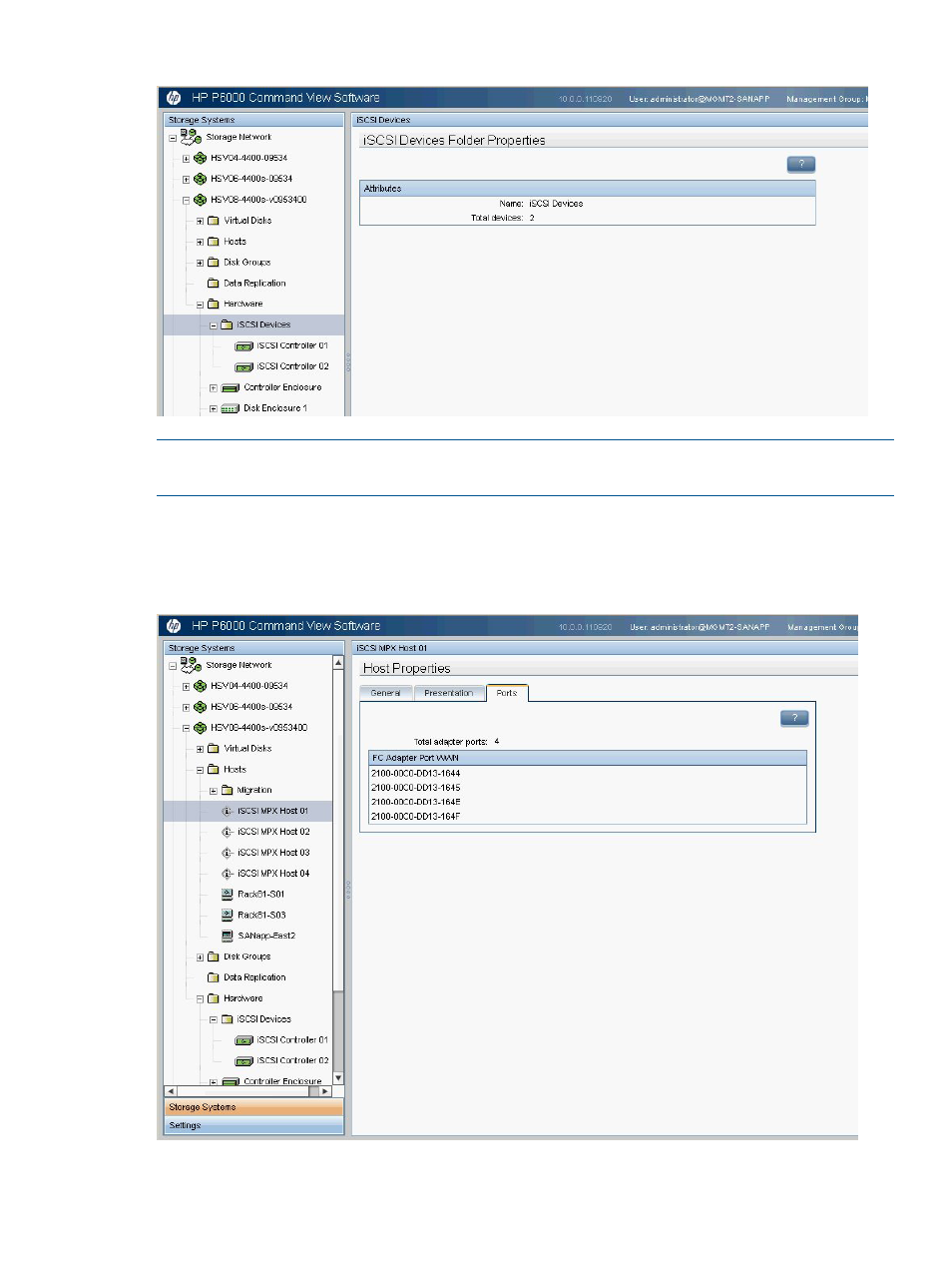

Figure 20 iSCSI devices folder properties

NOTE:

HP recommends that you set a static IP address on the management port to ensure

connectivity.

After the discovery is complete, the MPX200s appear in the iSCSI Devices folder as iSCSI Controller
01 and iSCSI Controller 02. The four iSCSI MPX200 hosts appear in the Hosts folder (see

Figure 21 (page 33)

). The ports associated with each host consist of the VPGs from each blade.

Figure 21 Host properties

Figure 22 (page 34)

shows the iSCSI Controller Properties Mgmt Port tab on the iSCSI Controller

Properties page.

HP P6000 Command View discovery

33
