HP MPX200 Multifunction Router User Manual

Page 50

background image

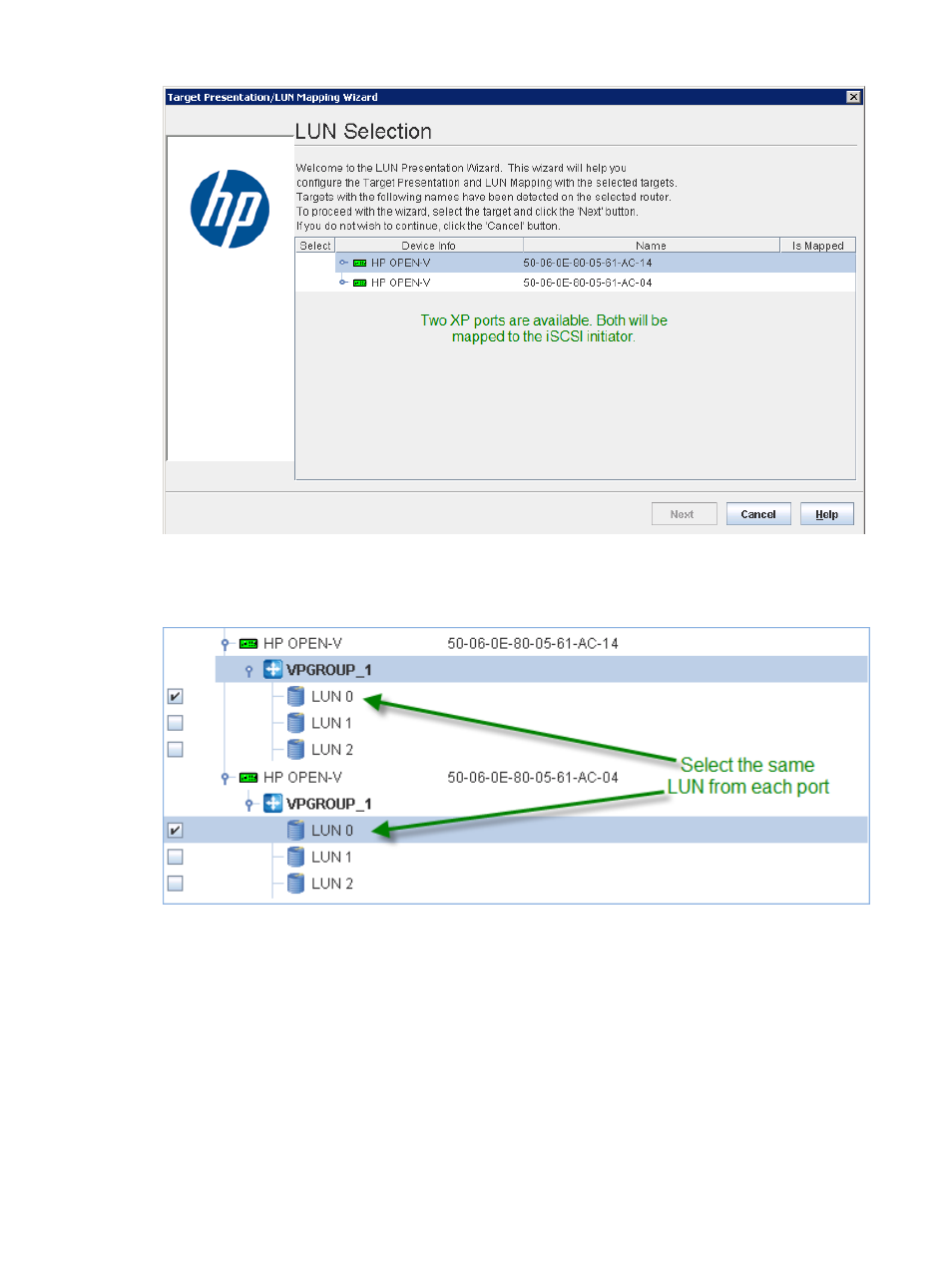

Figure 47 LUN Selection window

6.

Expand the desired ports and select the same LUN from each (see

Figure 48 (page 50)

).

Figure 48 Expanded ports

7.

Select the initiator and finish (see

Figure 49 (page 51)

).

50

Managing MPX200 iSCSI for XP24000/20000
