- 7 -

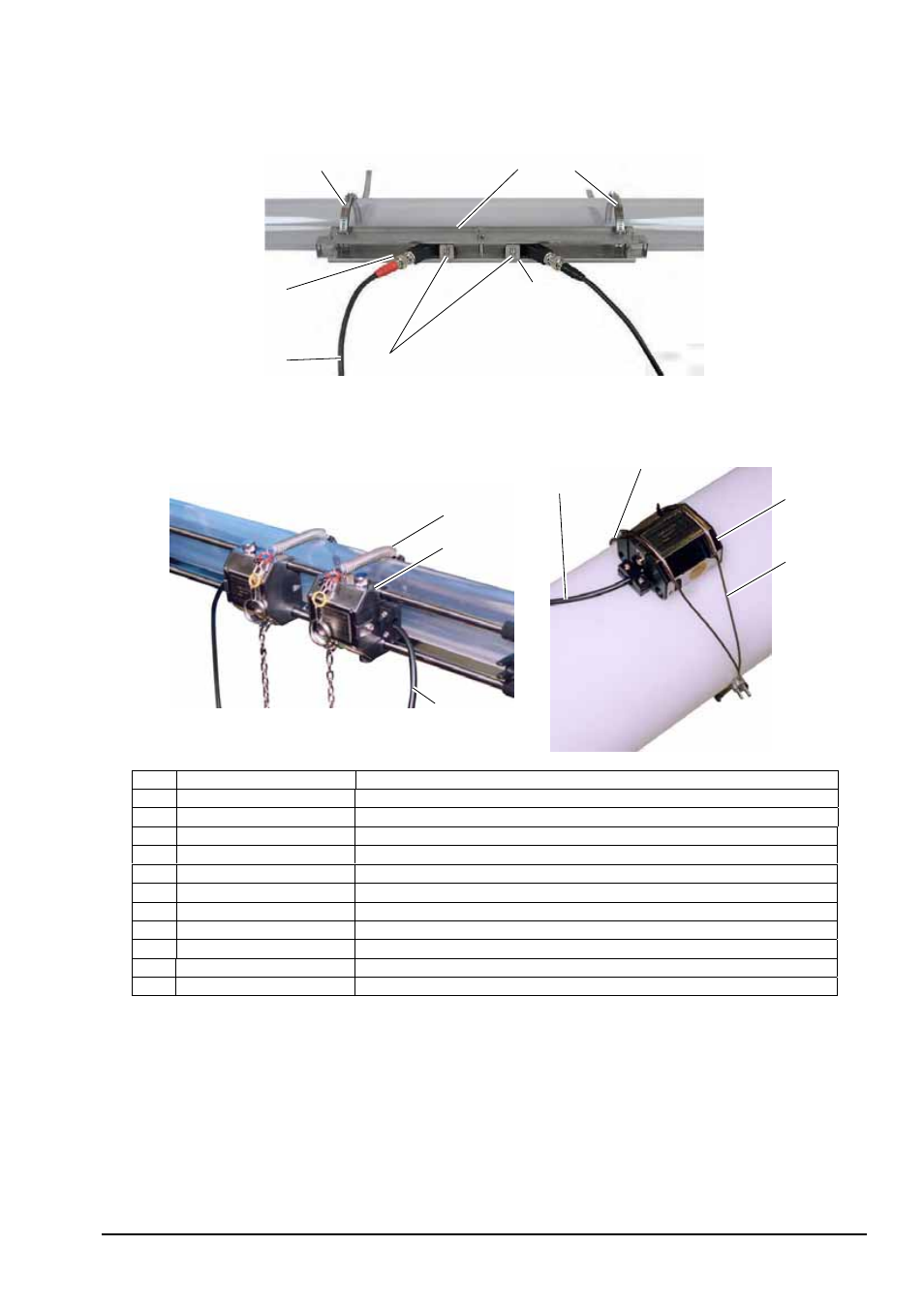

1.4.2. Detector (SX3 Series)
SX3-A0/B0
1 3 3
7
6
2
5
9
8
7
8
10
7
11
No. Name Description
1 Frame for small size Fastens the sensor unit on pipe.
2 Sensor unit Sends and receives an ultrasonic wave.
3 Stainless steel belt Fastens the frame on pipe.
4 Spring fixture Removes the play of stainless steel belt.
5 Scale For reading the sensor mounting spacing
6 Fastening hole For positioning and fastening the sensor units
7 Signal cable Transmits send/receive signals.
8 Small size detector Sends and receives an ultrasonic wave.
9 Chain Fastens the detector on pipe.
10 Wire rope Fastens the detector on pipe.
11 Mounting spring Removes the play of wire rope.
SX3-C0/D0
