SIP overview

7

SIP packet flow

Figure 40

demonstrates the basic operation of SIP; location of an endpoint, signal of a desire to

communicate, negotiation of session parameters to establish the session, and tear-down of the
session after completion.

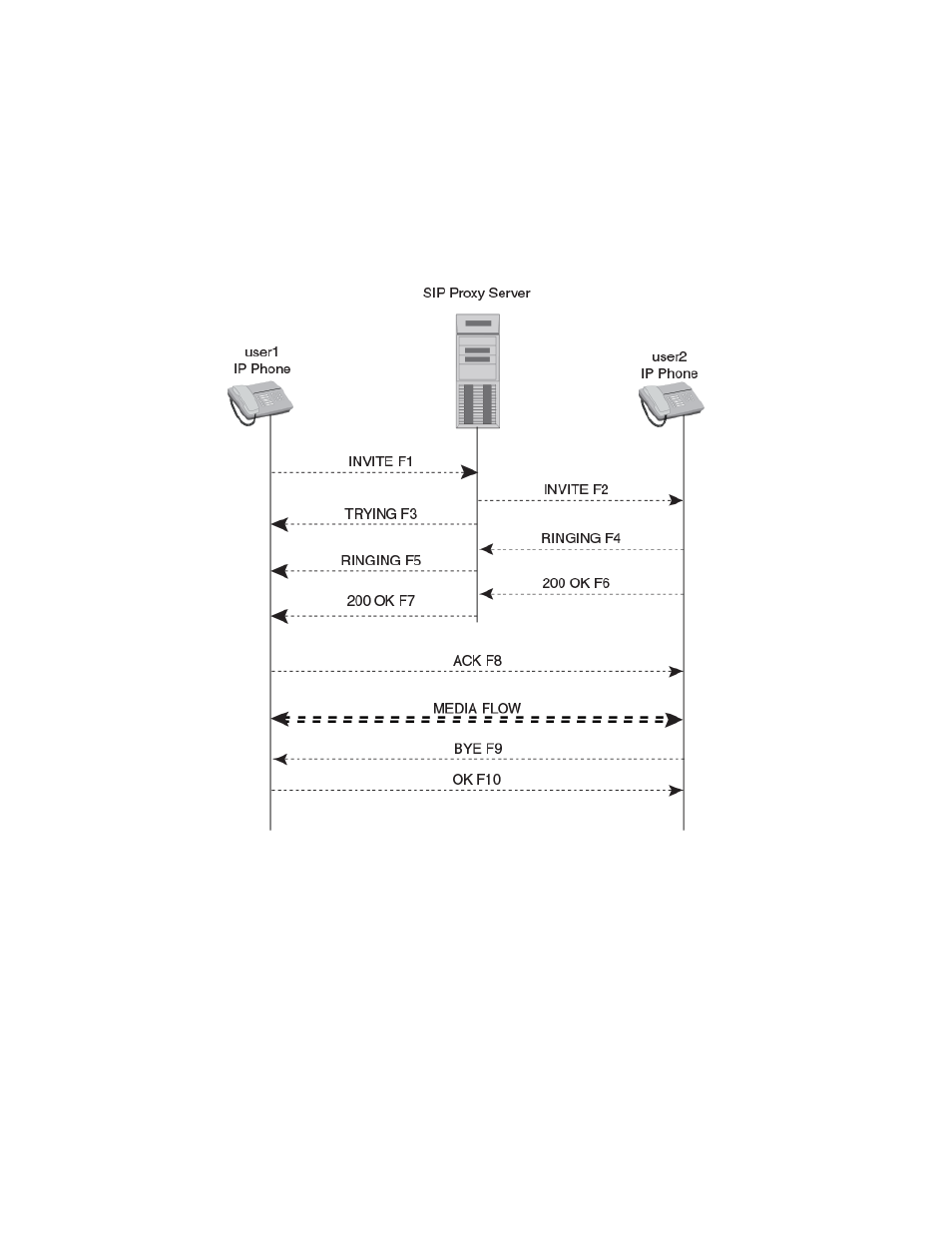

FIGURE 40

SIP packet flow

The example in

Figure 40

shows packet exchange between two SIP clients, also known as User

Agent Clients (UACs). In the figure each message is labeled with the letter "F" and a number for
reference. The session established between the two end-clients is facilitated by the SIP proxy
server. User1 "calls" User2 using a SIP identity, a type of Uniform Resource Identifier (URI) called a
SIP URI. The SIP URI is similar to an e-mail address, typically containing a username and a host
name. In this case, it is sip:[email protected], where brocade.com is the domain of User1's SIP
service provider.
