321
Appendix
 Absolute Reset of A Synchro Controller
If you have specified the synchro specification at the time of order, the controller has been shipped with
their parameters set for the synchro specification.
To perform an absolute reset, however, the parameters must be changed.
The explanation given below is based on the operation in the PC software. Read the operation manual for
the PC software before performing an absolute reset.
1. Synchro Axes
Synchro axes consist of a master axis and a slave axis. The axis with the smaller axis number
becomes the master axis.
Program commands are valid only for the master axis (issuance of commands to the slave axis is
prohibited).
Absolute reset can be performed using the standard procedure or special procedure. Which
SURFHGXUHWRXVHLVGHWHUPLQHGE\WKHYDOXHVVHWIRUWKHPDVWHUD[LVDQGVODYHD[LVLQ³$[LVVSHFLILF
SDUDPHWHU1R(QFRGHU$%6,1&W\SH´
9DOXHVLQ³$[LVVSHFLILFSDUDPHWHU1R(QFRGHU$%6,1&W\SH´
Master axis Slave axis
Absolute reset method
1 1 Special procedure
1 0 Standard procedure
0 0
(If the master axis and slave axis are both set to ³´LWPHDQVERWKD[HVDUHRIWKHLQFUHPHQWDO
specification.)

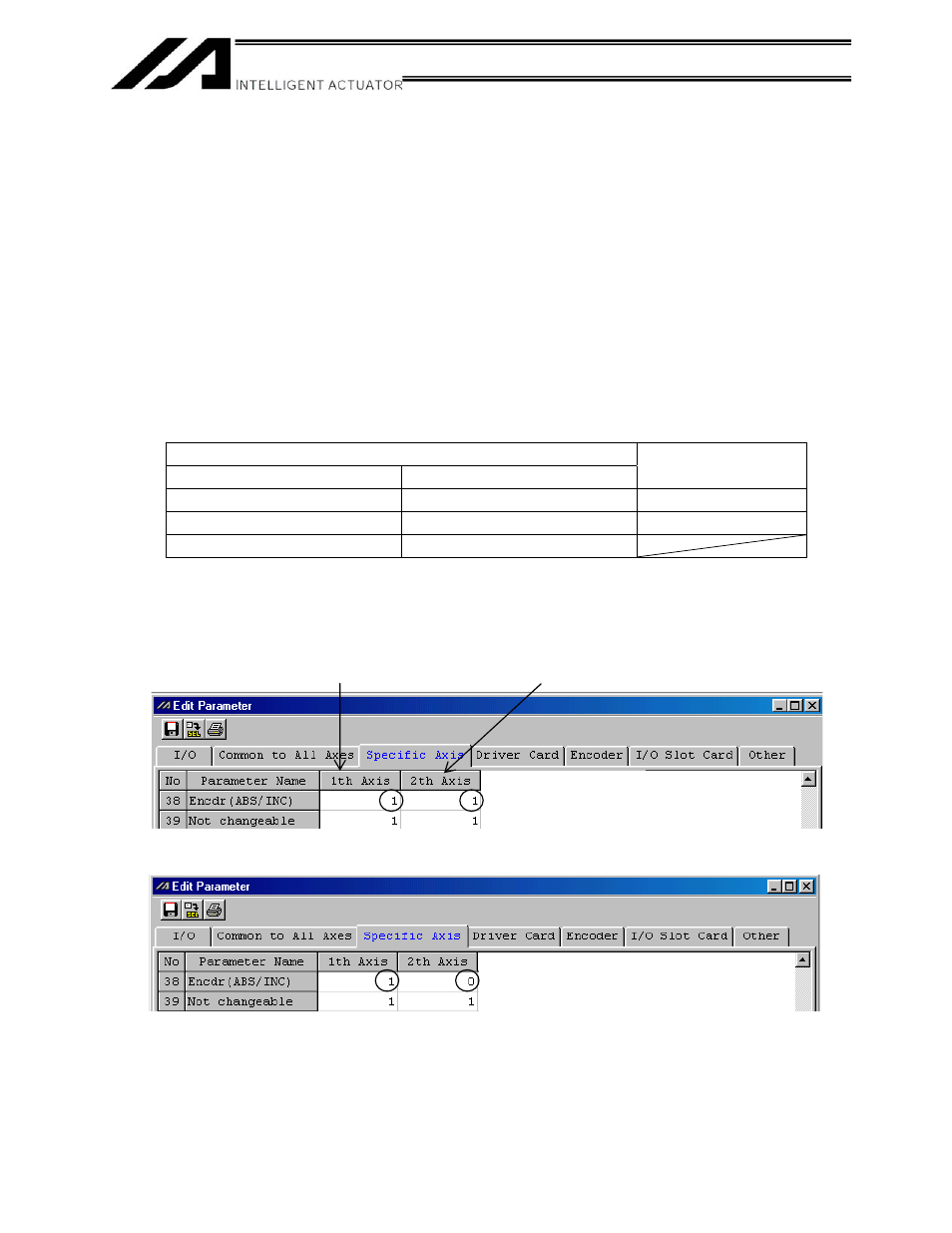

([DPSOH $EVROXWHUHVHWRIDD[LV controller using the special procedure
([DPSOH $EVROXWHUHVHWRIDD[LV controller using the standard procedure
Master axis (one with the smaller axis number) Slave axis
