11
Part 1 Installation
(2) Fuse holder
(general-purpose type only)
This half-cut fuse holder is used to protect overcurrent in the AC input
part. It prevents inflow of abnormal current generated by ground fault, etc.,
and uses a slow-blow fuse specified by IAI.
Overview of Fuse Holder Specifications
n o i t p i r c s e D m e t I
Holder F-22001-A1 by Sato Parts
Fuse type TWO 250V20A by Fuji Terminal
Melting
characteristics
Slow-blow
* With a compact type, the fuse holder is mounted on the board. Type: FGMT5
AC250V10A by Fuji Terminal

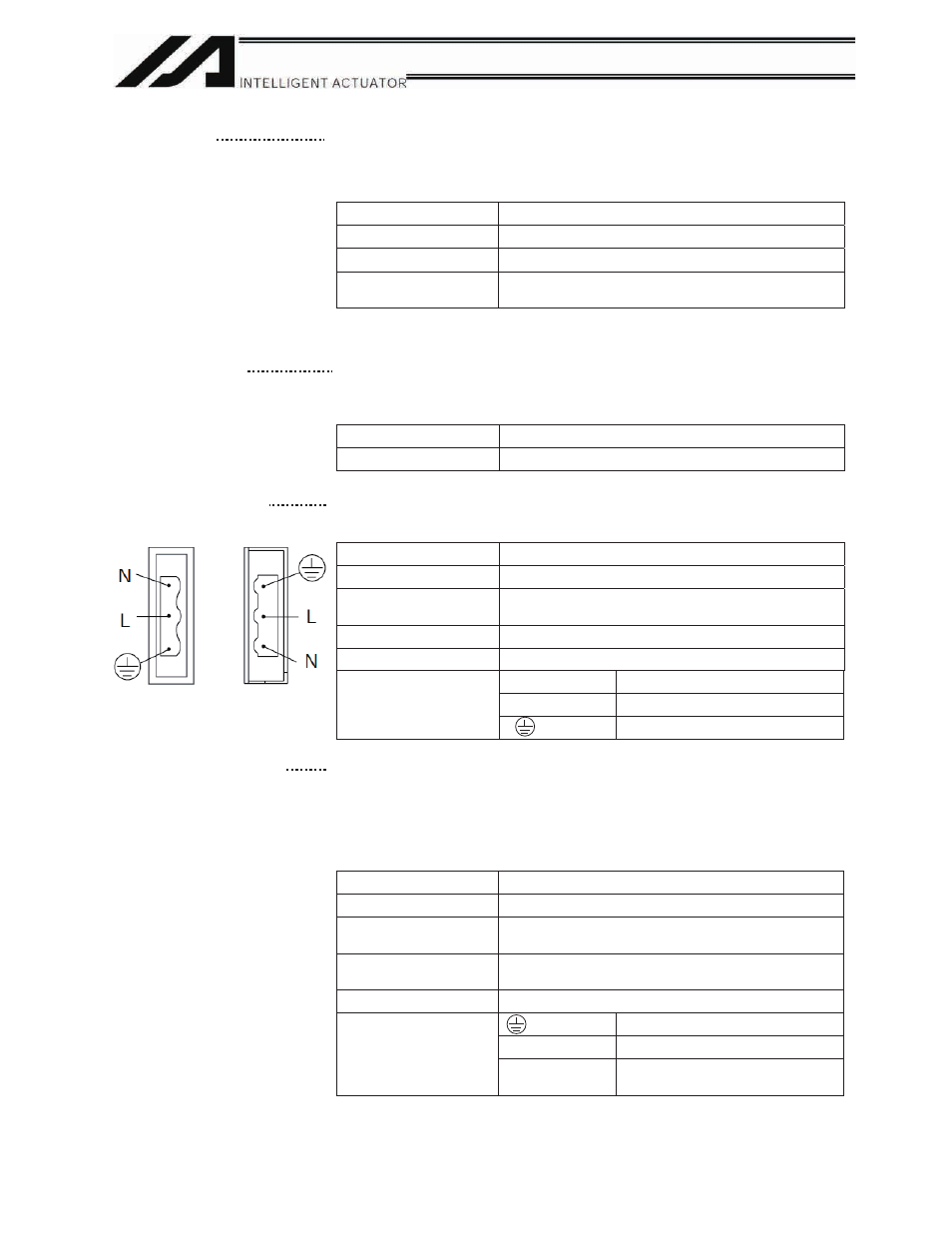

100/200-VAC, single-phase input connector.
AC Power Connector Specifications
w e i v r e v O m e t I
Connector name POWER
Connector GMSTB2.5/3-STF-7.62 by Phoenix Contact
3-pin, 2-piece connector
Supported cable size 1.25 ~ 2.5 mm
2
(AWG12 ~ 16)
Connected to AC power source
N AC power input, N side
L AC power input, L side
Terminal symbol
PE (Protective grounding line)
(5) External regenerative
unit connector
This connector is used to connect a regenerative resistance unit that may
be required when the controller is used in a high-speed/high-load
environment, etc., and the built-in regenerative resistance capacity is not
sufficient. Whether or not an external regenerative resistance is necessary
will be determined by the specific application such as axis configuration.
External Regenerative Unit Connector Specifications
w e i v r e v O m e t I
Connector name RB
Connector GIC2.5/3-STF-7.62 by Phoenix Contact
3-pin, 2-piece connector
Cable size 1.0 mm
2
(AWG17 or equivalent), included in the
external regenerative box
Connected to External regenerative box
Grounding terminal
RB– Regenerative resistance –
Terminal symbol
RB+
Regenerative resistance +
(Motor-driving DC voltage)
An insufficient regenerative resistance capacity will cause “E65, F63: Regenerative
resistance temperature error.” An insufficient regenerative resistance capacity is
also suspected when “E88: Power system error (Other)” occurs.
*
Type K
(General-purpose Type)
Type J
(Compact Type)
(3) Circuit Protector This is a surge protector for the overcurrent protection of XSEL-KE AC input.
It prevents inflow of abnormal current generated by ground fault.
(4) AC input connector
Overview of Circuit Protector Specifications
Overview m e t I
Circuit Protector SER-F-11-62-10A-BWT by Sanken-Airpax
