Camera dimensions

PIKE Technical Manual V5.1.2

58

Pike W270 (2 x 1394b copper)

This version has the sensor tilted by 270 degrees clockwise, so that it views
downwards.

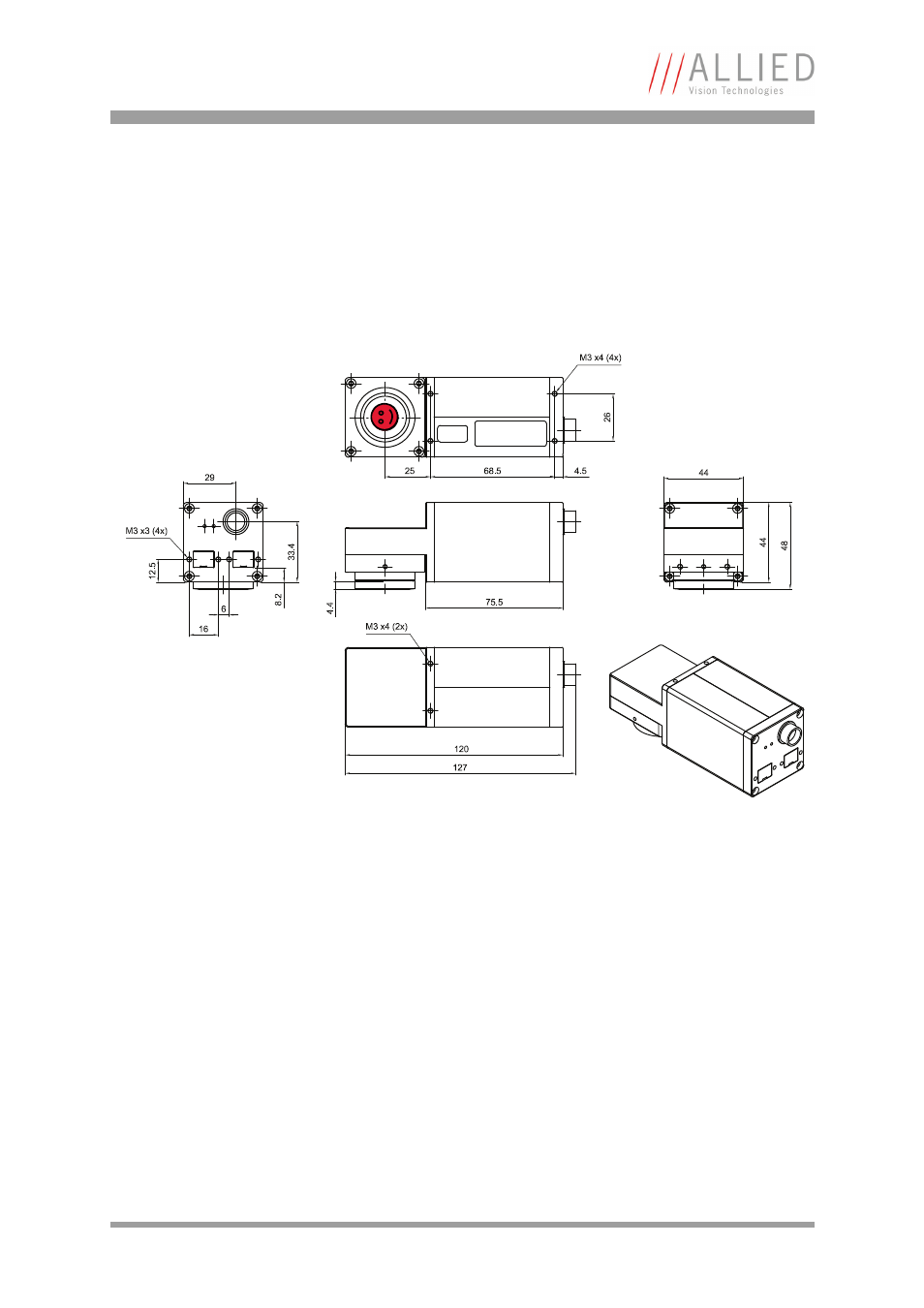

Figure 14: Pike W270 (2 x 1394b copper)
