Video formats, modes and bandwidth
PIKE Technical Manual V5.1.2
285
AOI frame rates maxBPP=11000, single-tap, sub-sampling

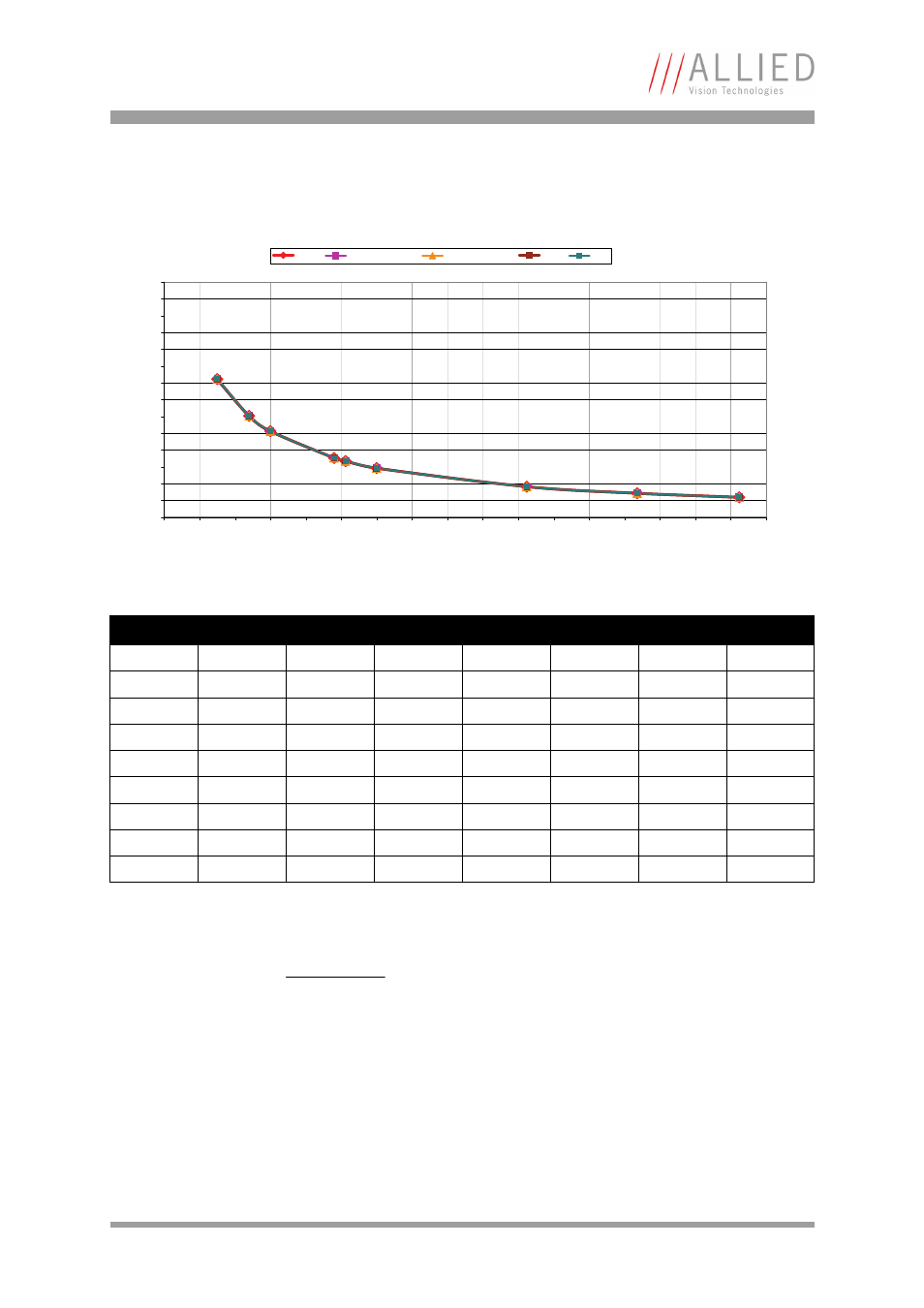

Figure 144: Pike F-1600 [width=4872] (max BPP = 11000, single-tap, sub-sampling)
AOI height CCD RAW8 RAW12 RAW16 YUV411 YUV422 RGB8
3248 1.184 1.18 1.18 1.18 1.18 1.18 1.18
2672 1.422 1.42 1.42 1.42 1.42 1.42 1.42
2048 1.817 1.81 1.81 1.81 1.81 1.81 1.81
1200 2.921 2.92 2.92 2.92 2.91 2.91 2.91
1024 3.343 3.34 3.34 3.34 3.33 3.33 3.33
960 3.528 3.52 3.52 3.52 3.52 3.52 3.52
600 5.123 5.12 5.12 5.12 5.11 5.11 5.11
480 6.033 6.03 6.03 6.03 6.01 6.01 6.01
300 8.221 8.22 8.22 8.22 8.18 8.18 8.18
Table 126: Pike F-1600 [width=4872] (maxBPP=11000, single-tap, sub-sampling)
Note

CCD = theoretical max. frame rate (in fps) of CCD
maxBPP: for explanation and configuration see Chapter
Maximum ISO packet size on page 355
Frame rate = f(AOI height) *PIKE F-1600* (maxBPP=11000; single-tap; sub-sampling)
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
0 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400
AOI height / pixel
Fr
ame
rate / fps
RAW8 RAW12, YUV411 RAW16, YUV422 RGB8 CCD
