Video formats, modes and bandwidth
PIKE Technical Manual V5.1.2
270
PIKE F-505: AOI frame rates
AOI frame rates with max. BPP = 8192
Formula 15: Pike F-505: theoretical max. frame rate of CCD

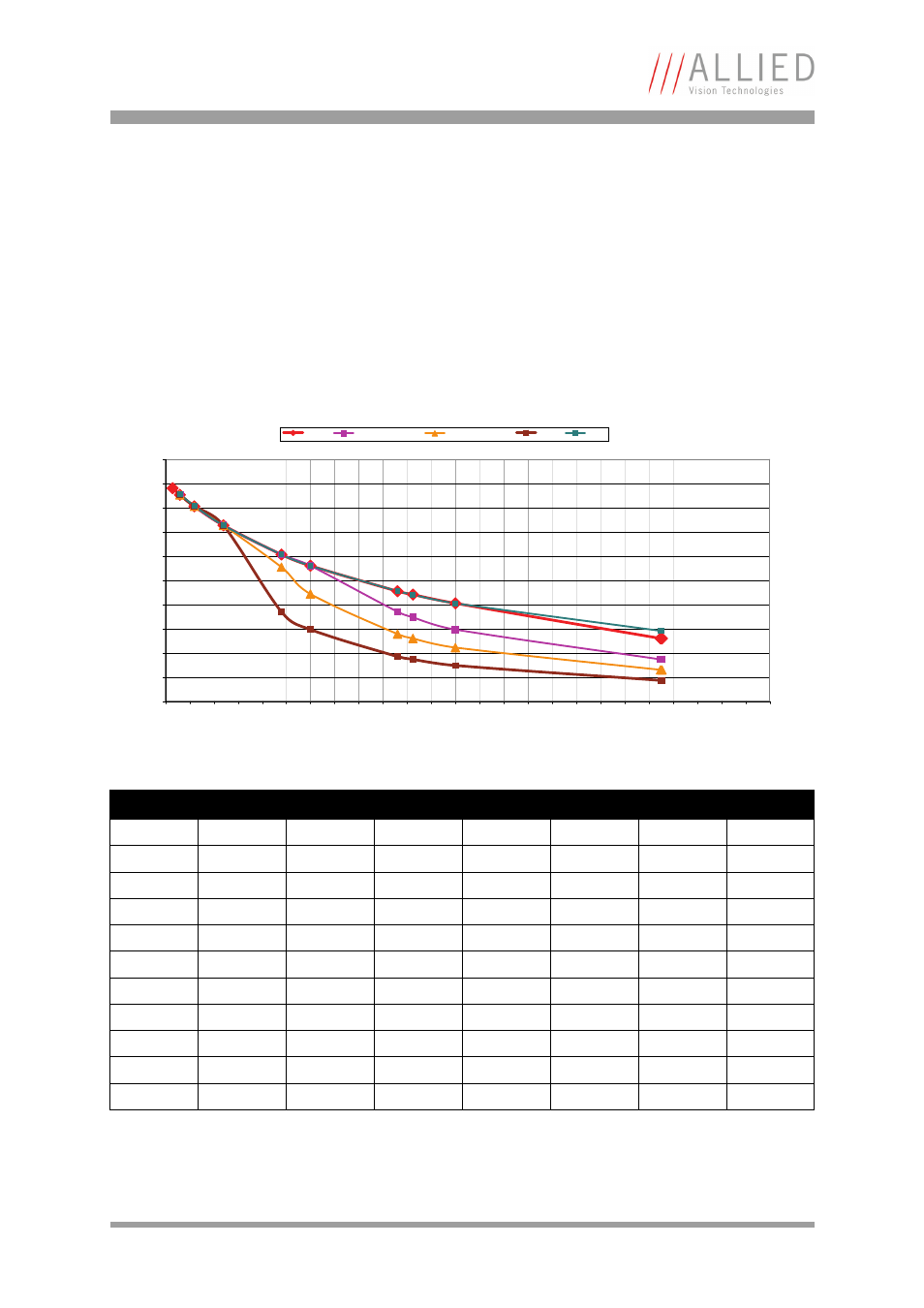

Figure 126: Frame rates Pike F-505 as function of AOI height [width=2452] (max BPP = 8192)
AOI height CCD RAW8 RAW12 RAW16 YUV411 YUV422 RGB8
2054 14.54 13 9 7 9 7 4
2048 14.57 13 9 7 9 7 4
1200 20.27 20 15 11 15 11 7
1024 22.06 22 17 13 17 13 9
960 22.79 22 18 14 18 14 9
600 28.02 28 28 22 28 22 15
480 30.35 30 30 28 30 28 18
240 36.37 36 36 36 36 36 36
120 40.39 40 40 40 40 40 40
60 42.74 42 42 42 42 42 42
30 44.03 44 44 44 44 44 44
Table 114: Frame rates Pike F-505 as function of AOI height (pixel) [width=2452] (maxBPP=8192)
max. frame rate of CCD
1
636μs AOI height 33.10μs

2069 AOI height –   10.34μs  + +
-----------------------------------------------------------------------------------------------------------------------------------------------
=
Frame rate = f(AOI height) *PIKE F-505* (max BPP = 8192)
0
5
10
15
20
25
30
35
40
45
50
0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500
AOI height / pixel
Fr
ame r
a
te / fps
RAW8 RAW12, YUV411 RAW16, YUV422 RGB8 CCD
