Description of the data path
PIKE Technical Manual V5.1.2
168
Editor Check box / buttons Description

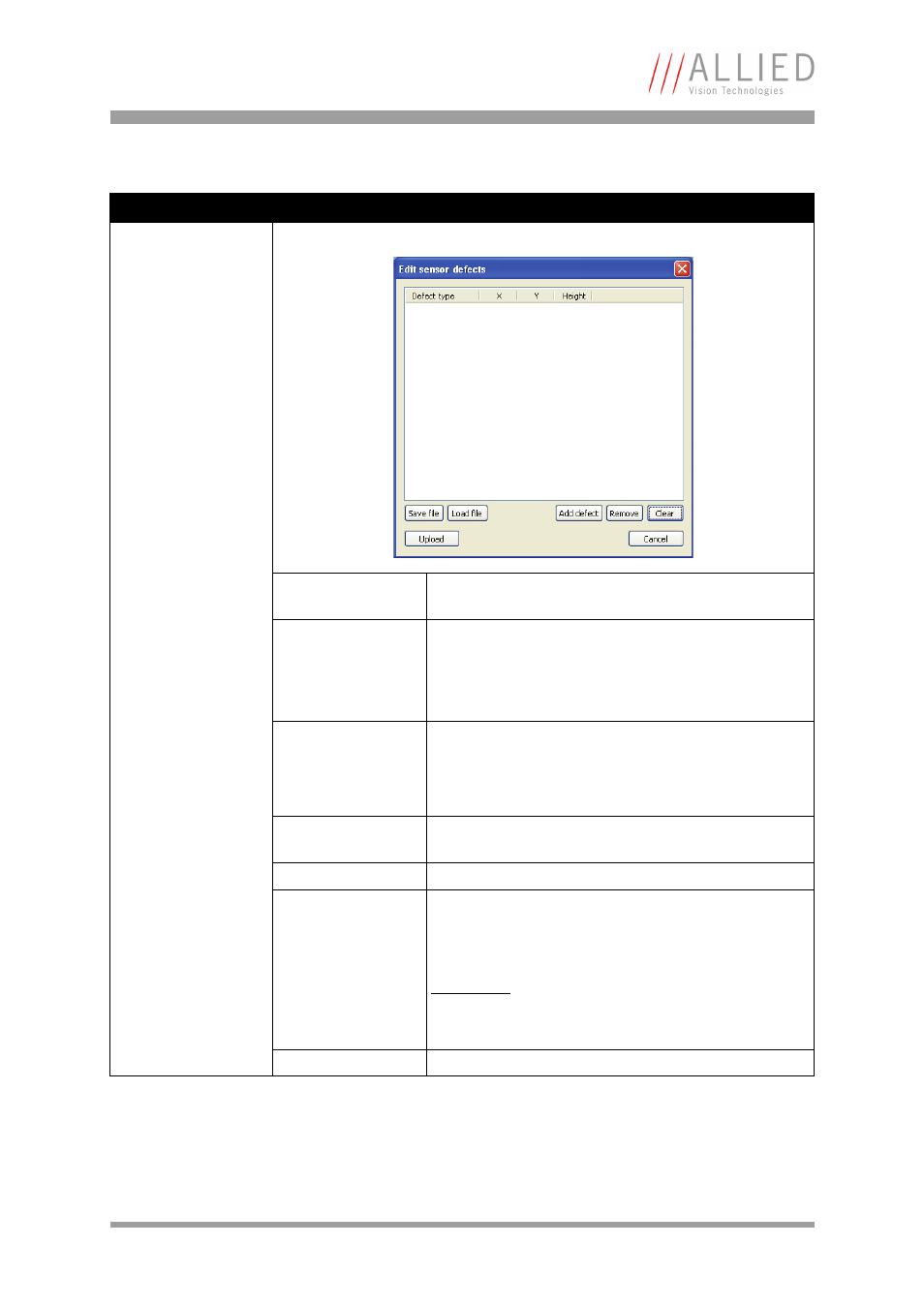

Edit defect pixels
Save file Saves defect pixel data in a CSV file (AVT-own defect pixel
file).
Load file An Open dialog opens.
Choose the following file type:
• AVT defect files (*.csv) [defect values are loaded
into the Edit sensor defects dialog]
Add defect Here you can add more defect pixels manually. For a
single defect pixel enter X and Y value.
For a column enter X value only (whole column defect) or
X and Y value and height (partial column defect).
Remove Mark one or more defect pixels and click Remove to
delete defect pixels.
Clear Deletes all defect pixels from the editor.
Upload Changed defect pixel data are loaded into the camera. If
you clicked Clear, the defect pixel map in the camera is
deleted.
Cancel Cancels all actions done in the editor.
Table 52: SmartView Edit settings: Adv 4 tab (Defect pixel correction editor)
Info

We strongly recommend to save the
defect pixel map (stored in the camera)
into a csv file, before uploading data.
