Page 57

Camera dimensions

PIKE Technical Manual V5.1.2

Pike W90 S90 (1394b: 1 x GOF, 1 x copper)

This version has the sensor tilted by 90 degrees clockwise, so that it views
upwards.

The sensor is also rotated by 90 degrees clockwise.

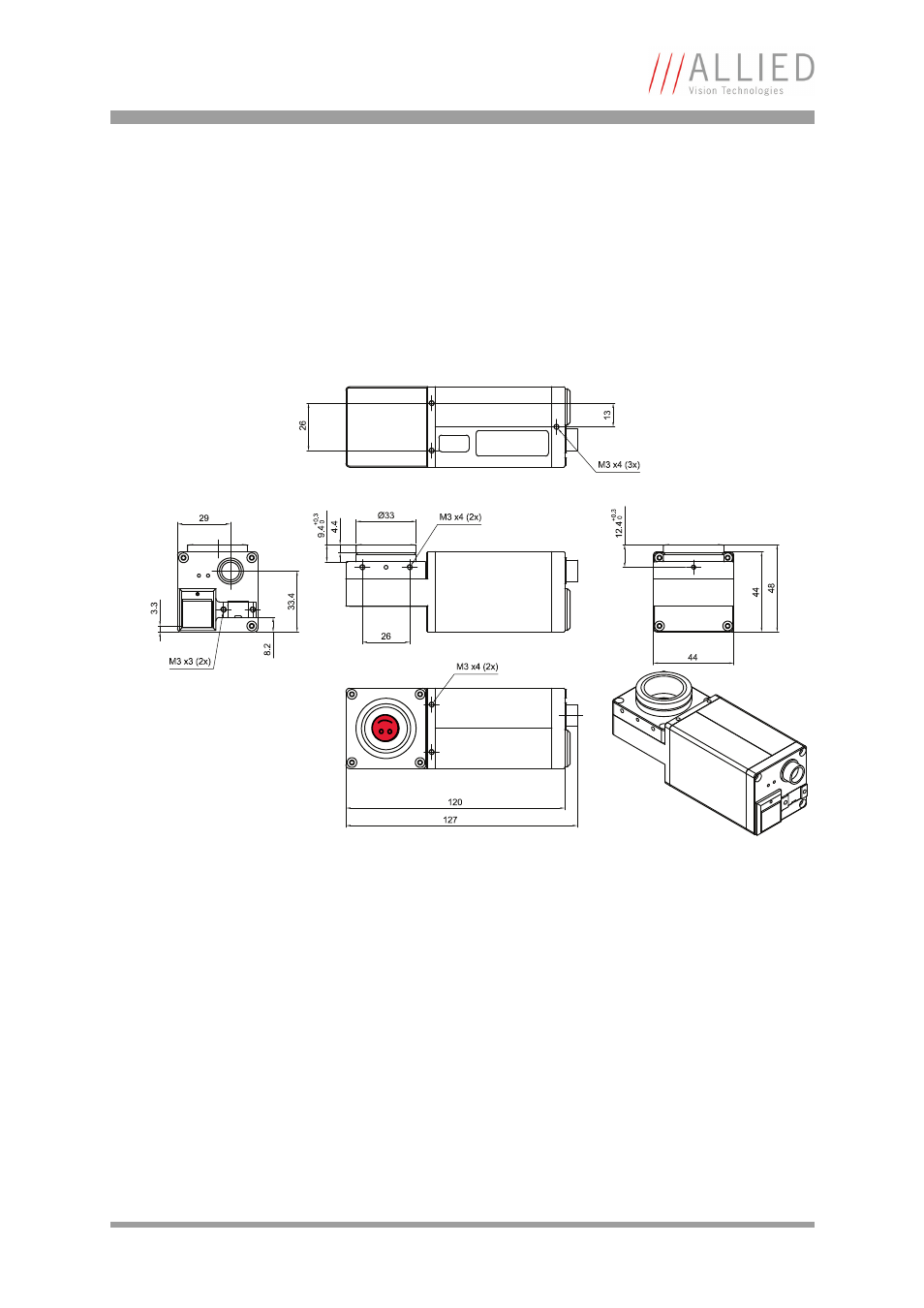

Figure 13: Pike W90 S90 (1394b: 1 x GOF, 1 x copper)
