Camera interfaces
PIKE Technical Manual V5.1.2
114
Status LEDs
On LED (green)
The green power LED indicates that the camera is being supplied with sufficient
voltage and is ready for operation.
Status LED
The following states are displayed via the LED:

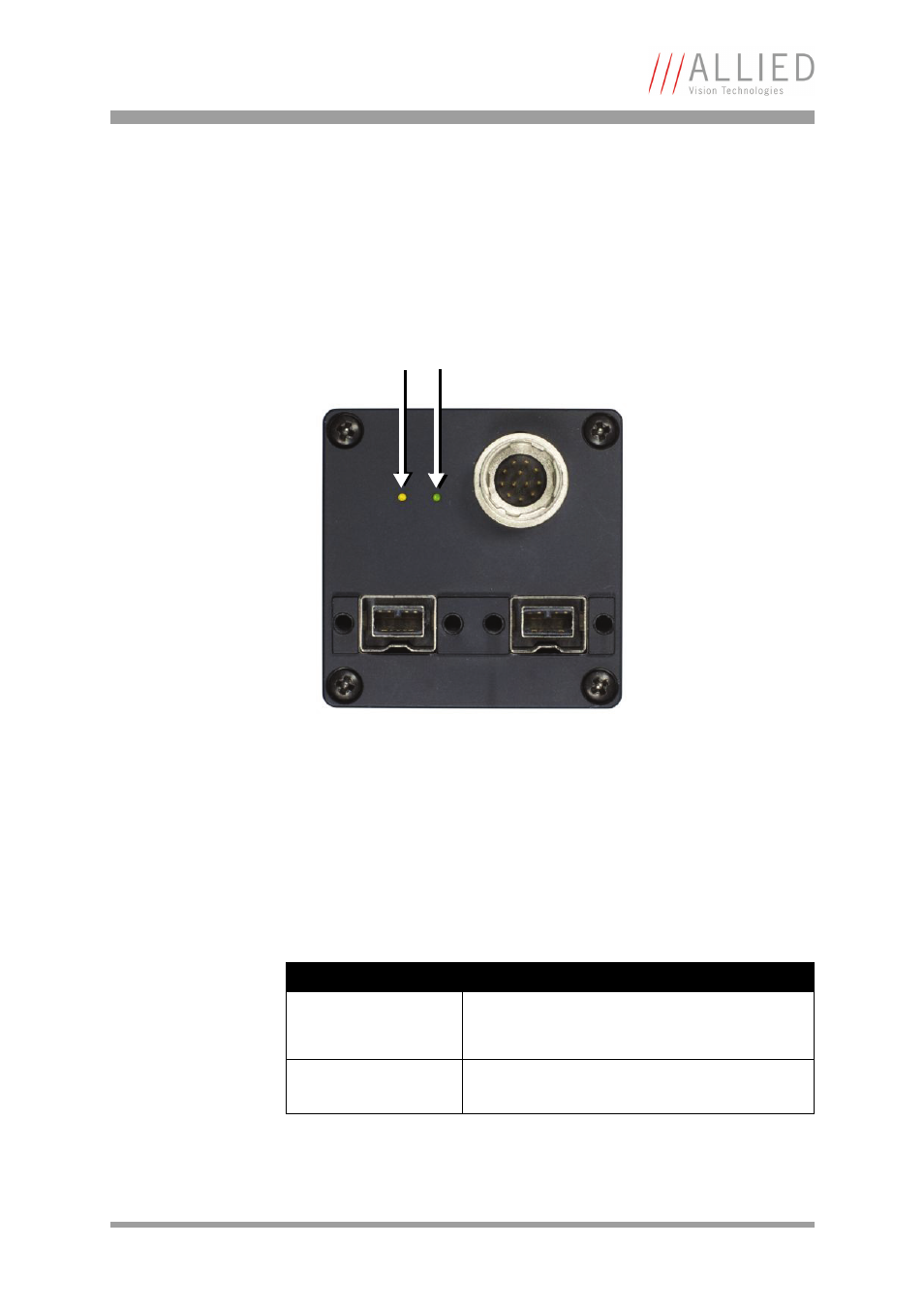

Figure 59: Position of status LEDs
State Description
Com/S1 (green) Asynchronous and isochronous data transmission
active (indicated asynchronously to transmission
via the 1394 bus)
Trg/S2 (yellow) LED on - waiting for external trigger
LED off - triggered / internal sync
Table 23: LED indication
Status LEDs
Yellow
(Trg/S2) Green
(Com/S1)
