Video formats, modes and bandwidth
PIKE Technical Manual V5.1.2
263
PIKE F-145: AOI frame rates (no sub-sampling)
Formula 8: Pike F-145: theoretical max. frame rate of CCD (no sub-sampling)

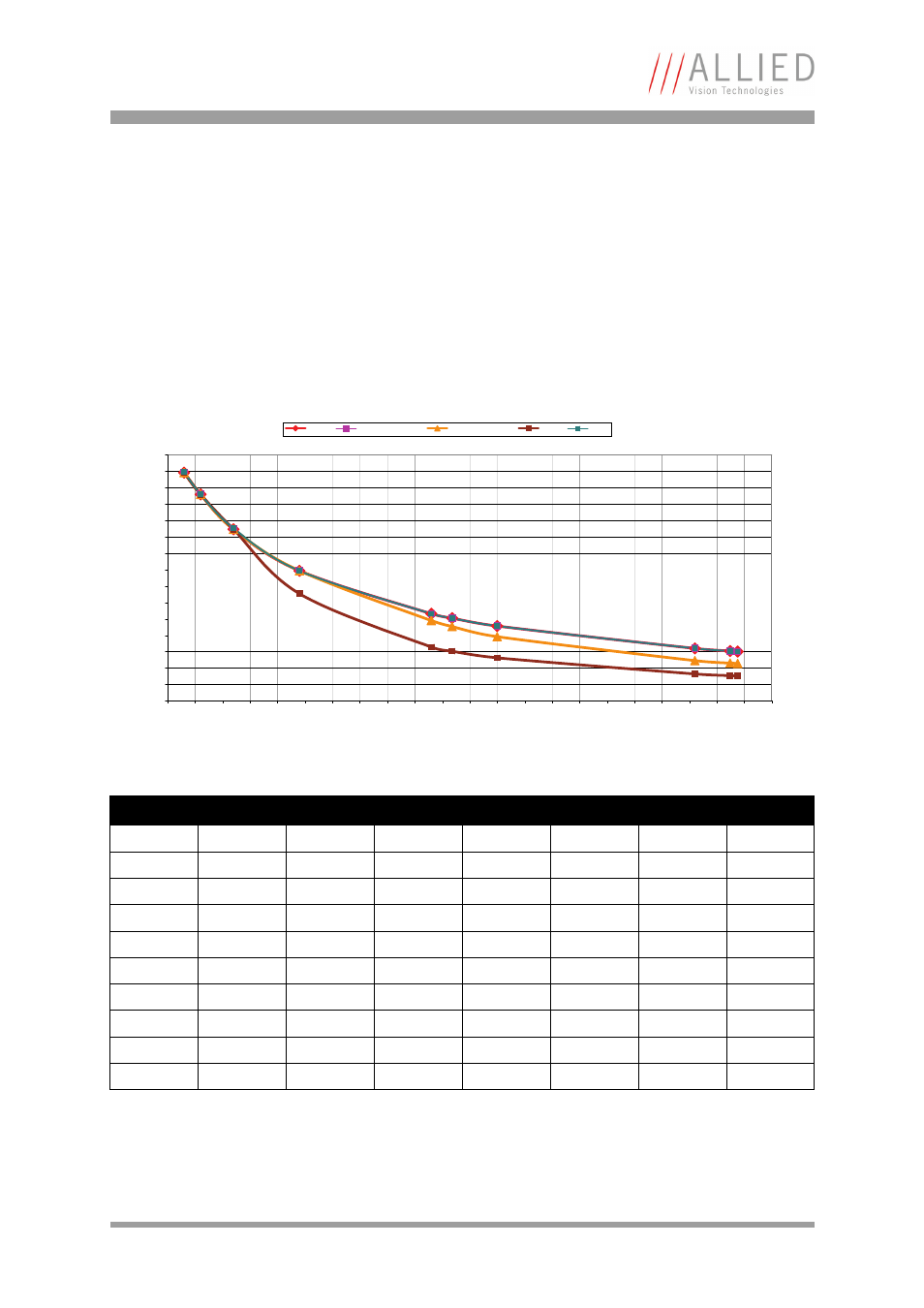

Figure 123: Frame rates Pike F-145 as function of AOI height [width=1388]
AOI height CCD RAW8 RAW12 RAW16 YUV411 YUV422 RGB8
1038 30.01 30 30 23 30 23 15
1024 30.34 30 30 23 30 23 15
960 31.95 31 31 25 31 25 16
600 45.54 45 45 39 45 39 26
518 50.42 50 50 45 50 45 30
480 53.06 53 53 49 53 49 33
240 79.25 79 79 79 79 79 65
120 105.21 105 105 105 105 105 105
60 125.83 125 125 125 125 125 125
30 139.49 139 139 139 139 139 139
Table 105: Frame rates (fps) of Pike F-145 as function of AOI height (pixel) [width=1388]
max. frame rate of CCD
1
242μs AOI height 31.80μs

1051 AOI height –   5.85μs  + +
--------------------------------------------------------------------------------------------------------------------------------------------
=
Frame rate = f(AOI height) *PIKE F-145*
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
0 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100
AOI height / pixel
Fr
ame r
a
te
/
f
p
s
RAW8 RAW12, YUV411 RAW16, YUV422 RGB8 CCD
