Configuration of the camera
PIKE Technical Manual V5.1.2
346
Delayed Integration enable
A delay time between initiating exposure on the sensor and the activation edge
of the IntEna signal can be set using this register. The on/off flag activates/
deactivates integration delay. The time can be set in μs in DelayTime.
Note

• Only one edge is delayed.
• If IntEna_Out is used to control an exposure, it is possi-
ble to have a variation in brightness or to precisely time a
flash.

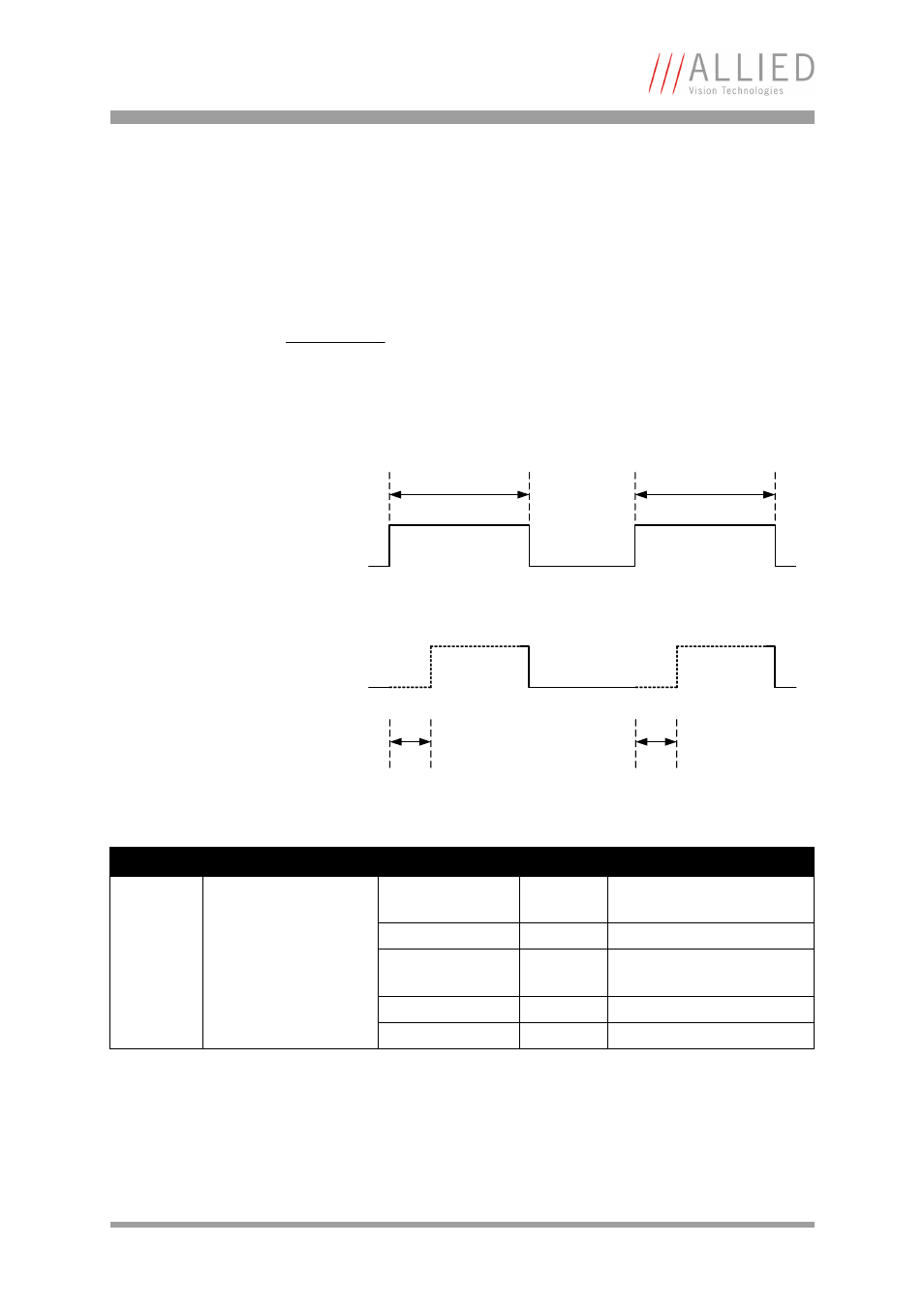

Figure 151: Delayed integration timing
Register Name Field Bit Description
0xF1000340 IO_INTENA_DELAY Presence_Inq [0] Indicates presence of this
feature (read only)
--- [1..5] Reserved
ON_OFF [6] Enable/disable integration
enable delay
--- [7..11] Reserved
DELAY_TIME [12..31] Delay time in μs
Table 165: Advanced register: Delayed Integration Enable
Integration time Integration time
IntEna_real
IntEna_out
Delay
time
Delay
time
