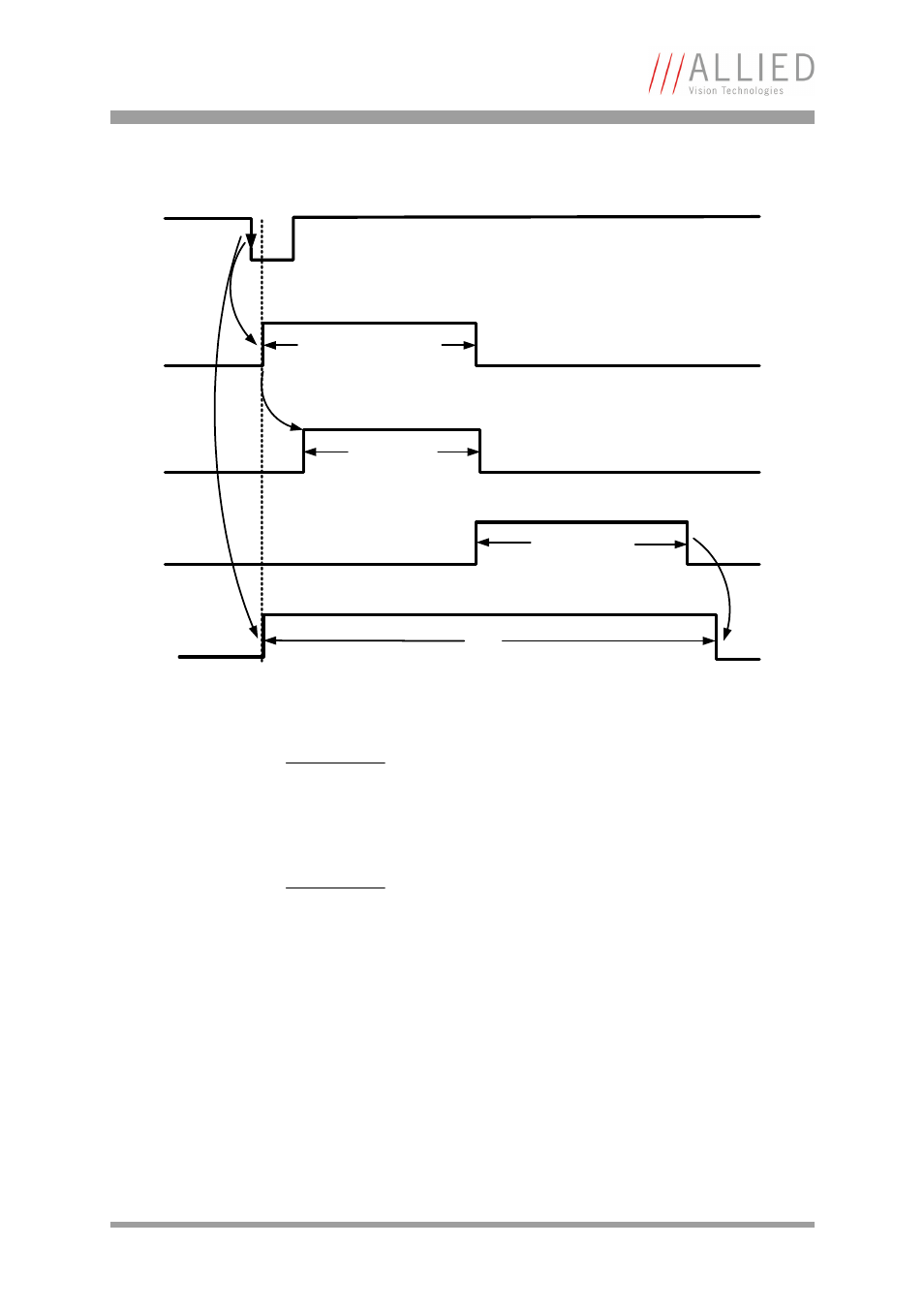

Figure 63: Output impulse diagram
Note

The signals can be inverted.
Caution

Firing a new trigger while IntEna is still active can result in
missing image.
External Trigger Input, falling edge
Integration_Enable (IntEna)
IntEna delayed
Frame_Valid (Fval)
Busy
Delay set by register Trigger_Delay
+ offset
Delay set by register
IntEna_Delay
Trigger_Mode_0
