Video formats, modes and bandwidth
PIKE Technical Manual V5.1.2
254
In addition to the AOI, some other parameters have an effect on the maximum
frame rate:
• the time for reading the image from the sensor and transporting it into
the FRAME_BUFFER
• the time for transferring the image over the FireWire™ bus
• the length of the exposure time.

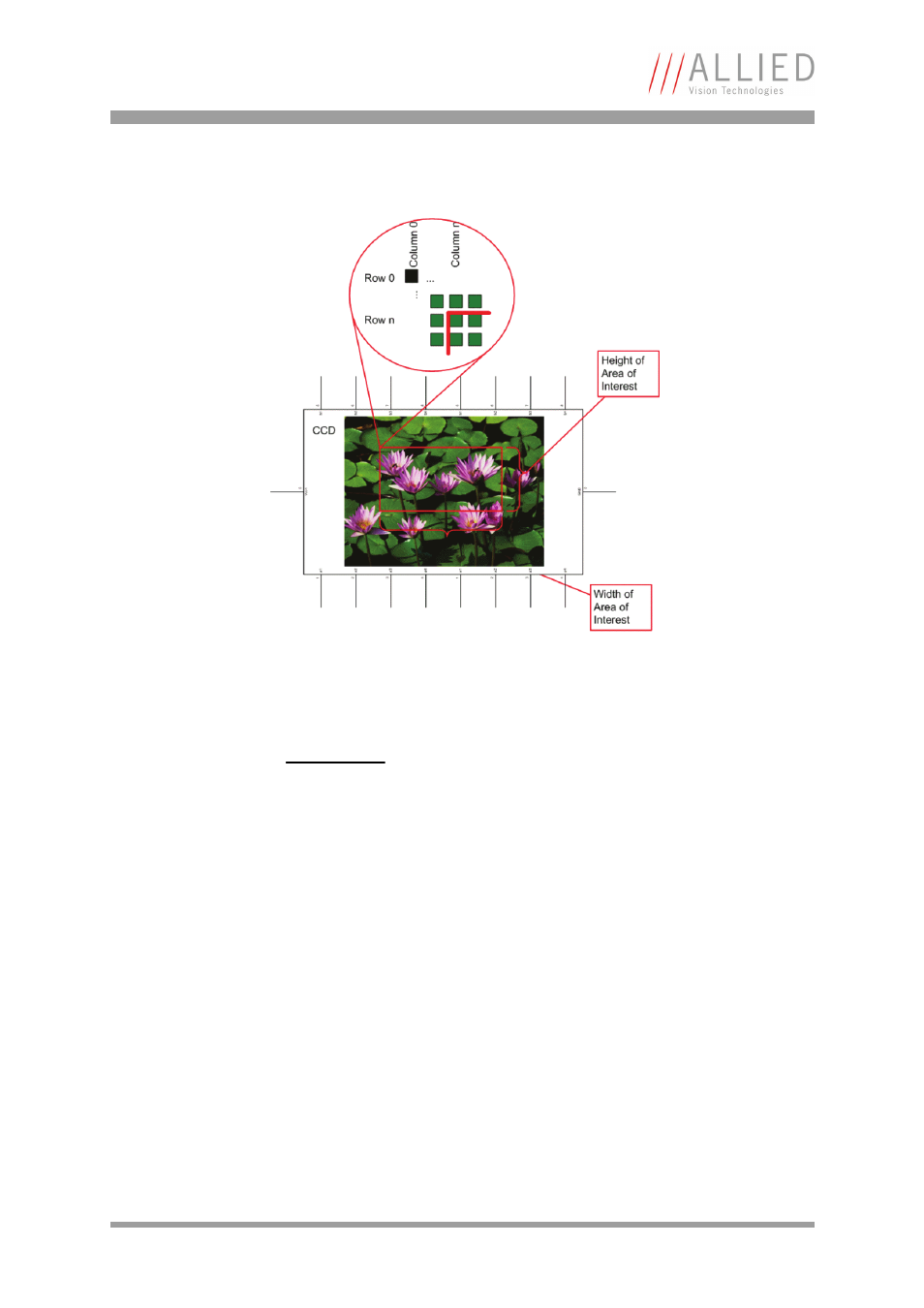

Figure 119: Area of interest (AOI)
Note

• The left position + width and the upper position + height
may not exceed the maximum resolution of the sensor.
• The coordinates for width and height must be divisible by
4.
