2 instructions, D: first register word, C: system word – Omron SYSMAC CP CP1E-N@@D@-@ User Manual
Page 398: Operand specifications
2 Instructions
2-362
CP1E CPU Unit Instructions Reference Manual(W483)
D: First Register Word

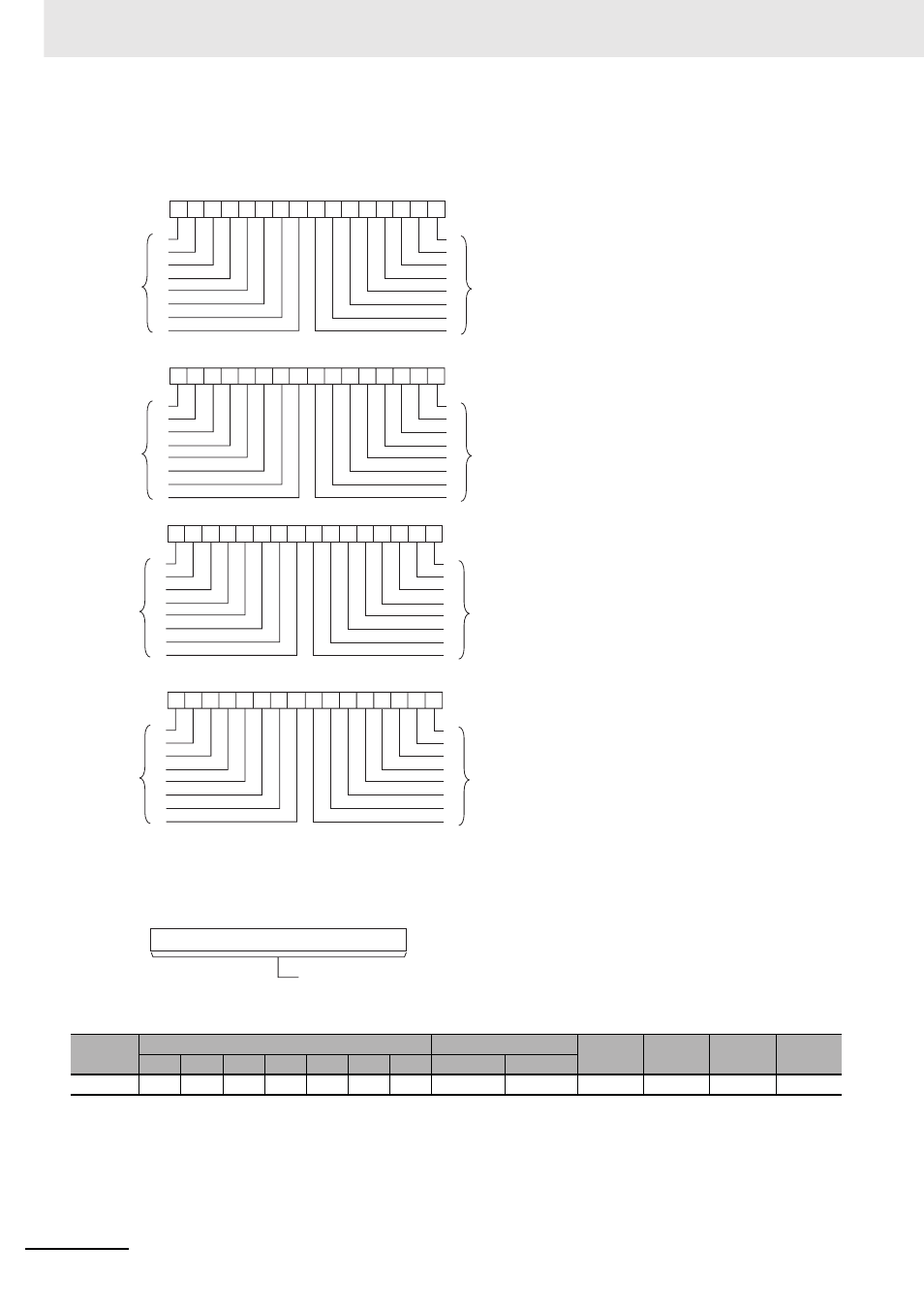

Specifies the leading word address of the 4 words that contain the data from the 8
× 8 matrix.
C: System Word
Specifies a work word used by the instruction. This word cannot be used in any other application.
Operand Specifications
Area
Word addresses
Indirect DM addresses
Constants
CF
Pulse bits
TR bits
CIO
WR
HR
AR
T
C
DM
@DM
*DM
I, O, D, C
OK
OK
OK
OK
OK
OK
OK
OK
OK
---
---
---
---
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
D
0
1
2
3
4
5
6
7
15
14
13
12
11
10
9
8
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
D+1
0
1
2
3
4
5
6
7
15
14
13
12
11
10
9
8
Bits 00 to 15 correspond to
matrix elements 0 to 15.
Bits 00 to 15 correspond to
matrix elements 16 to 31.
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
D+2
0
1
2
3
4
5
6
7
15
14
13
12
11
10
9
8
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
D+3
0
1
2
3
4
5
6
7
15
14
13
12
11
10
9
8
Bits 00 to 15 correspond to
matrix elements 32 to 47.
Bits 00 to 15 correspond to
matrix elements 48 to 63.
C
15
0
System word
(Cannot be accessed by the user.)
