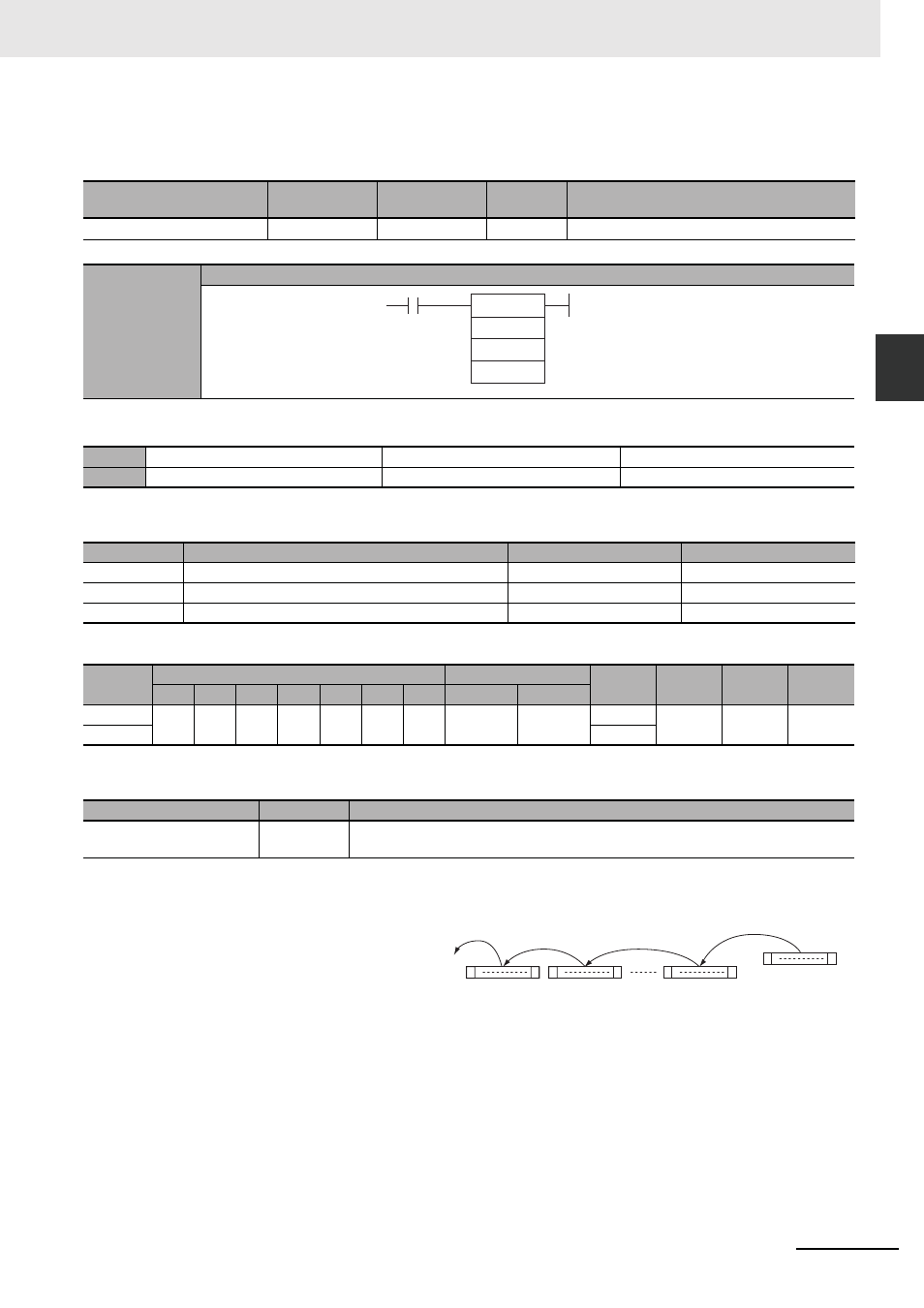

Page 167: 2 instructions, Operand specifications
2-131
2 Instructions
CP1E CPU Unit Instructions Reference Manual(W483)
Data Sh
ift I
n
stru
ctio
ns
2
WS
F
T
WSFT
Applicable Program Areas
Operands
Operand Specifications
Flags
Function
Precautions
• St and E must be in the same data area.
• When large amounts of data are shifted, the instruction execution time is quite long. Be sure that the
power is not cut while WSFT(016) is being executed, causing the shift operation to stop halfway
through.
Instruction
Mnemonic
Variations
Function
code
Function
WORD SHIFT
WSFT
@WSFT
016
Shifts data between St and E in word units.
Symbol
WSFT
Area
Step program areas
Subroutines
Interrupt tasks
Usage
OK
OK
OK
Operand
Description
Data type
Size
S
Control word
WORD
1
St
Starting word
UINT
Variable
E
End word
UINT
Variable
Area
Word addresses
Indirect DM addresses
Constants
CF
Pulse bits
TR bits
CIO
WR
HR
AR
T
C
DM
@DM
*DM
S
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
---
---
---
St,E
---
Name
Label
Operation
Error Flag
P_ER
• ON when St is greater than E.
• OFF in all other cases.
WSFT(016) shifts data from St to
E in word units and the data from
the source word S is places into
St. The contents of E is lost.
WSFT(016)
S
St
E
S: Source word
St: Starting word
E: End word
0
15
0
15
0
15
0
15
S
E
St
Lost
