2 Instructions

2-126

CP1E CPU Unit Instructions Reference Manual(W483)

Function

Hint

The same COLL(081) instruction can be used to collect data from various source words in the data
area by changing the value of Of.

Precautions

Be sure that the offset does not exceed the end of the data area, i.e., Bs and Bs+Of are in the same
data area.

Sample program

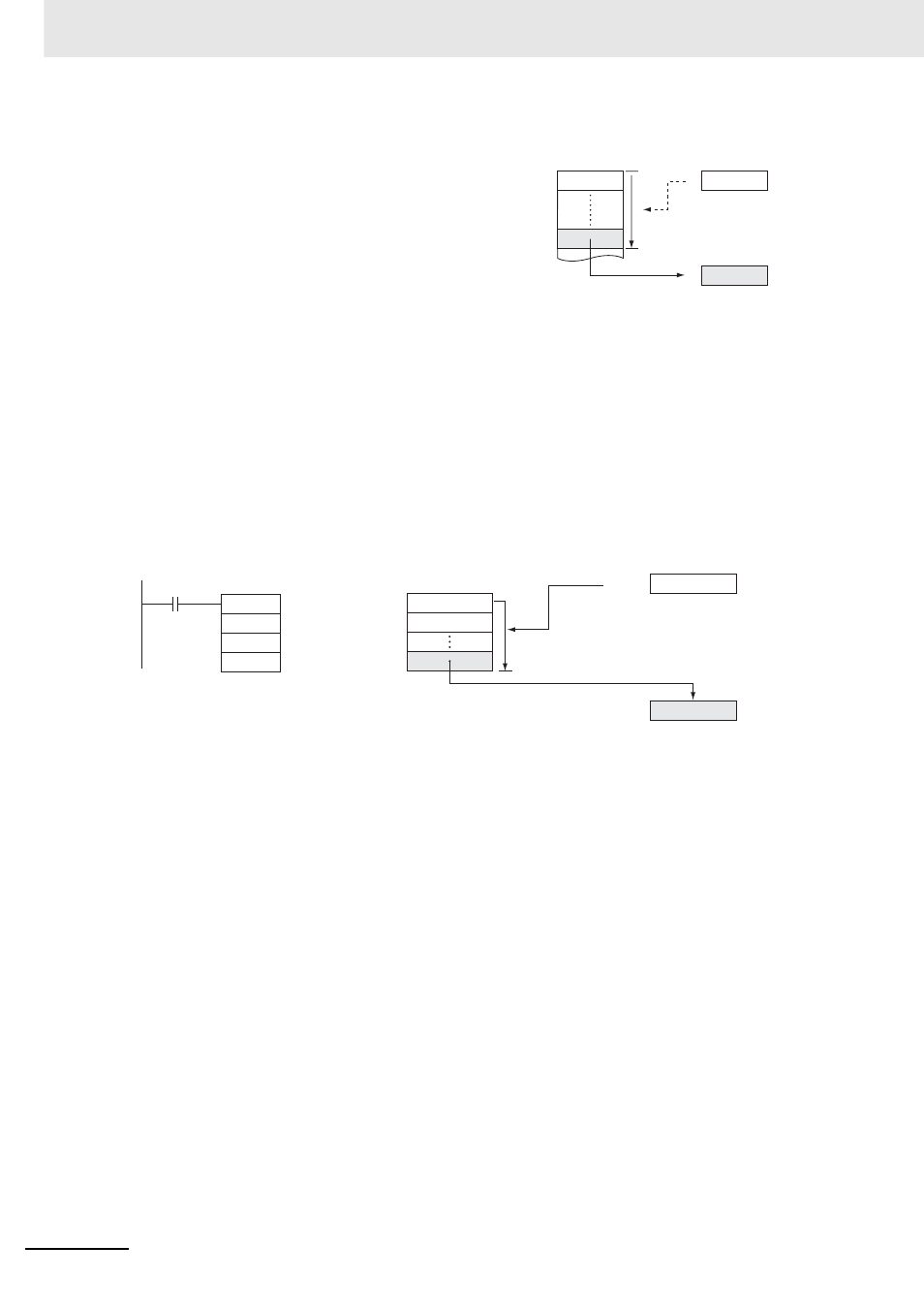

When CIO 0.00 is ON in the following example, the contents of D110 (D100 + 10) will be copied to
D300 if the content of D200 is 10 (0A hexadecimal). The contents of other words can be copied to D300
by changing the offset in D200.

COLL(081) copies the source word (calculated
by adding Of to Bs) to the destination word.

Bs

Bs+n

Of

D

n

n

COLL

D100

D200

D300

0.00

Bs

Of

D

D300

Bs:D100

D101

D110

D200 0

0

0

A

4-digit hexadecimal

Offset +10 words

Copied by COLL(081).
