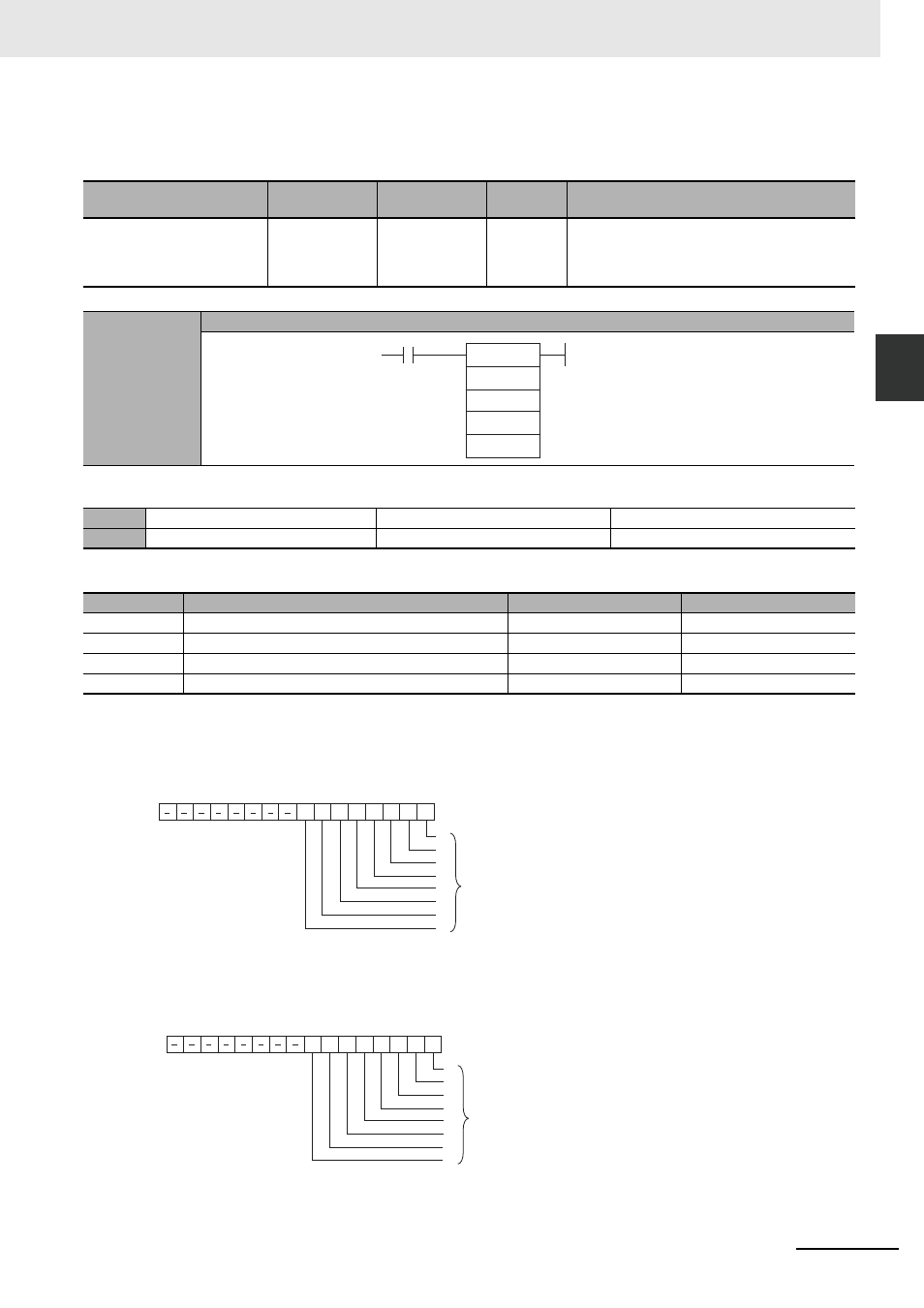

2-361
2 Instructions
CP1E CPU Unit Instructions Reference Manual(W483)
Basic
I/O U
n
it I
n
stru
ctio
ns
2
MTR
MTR
Applicable Program Areas
Operands
I: Input Word
Specify the input word allocated to the Input Unit and connect the 8 input signal lines to the Input Unit
as shown in the following diagram.
O: Output Word (Selection Signal Outputs)
Specify the output word allocated to the Output Unit and connect the 8 selection signals to the Output
Unit as shown in the following diagram.
Instruction
Mnemonic
Variations
Function
code
Function
MATRIX INPUT
MTR
---
213
Inputs up to 64 signals from an 8
× 8 matrix con-
nected to an Input Unit and an Output Unit (using
8 input points and 8 output points) and stores that
64-bit data in the 4 destination words.
Symbol
MTR
Area
Step program areas
Subroutines
Interrupt tasks
Usage
OK
OK
Not allowed
Operand
Description
Data type
Size
I
Input word
UINT
1
O
Output word
UINT
1
D
First destination word
ULINT
4
C
System word
WORD
1
I: Input word
O: Output word
D: First destination word
C: System word
MTR(213)
I
O
D
C
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
I
0
1
2
3
4
5
6
7
Bits 00 to 07 correspond to
Input Unit inputs 0 to 7.
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
O
0
1
2
3
4
5
6
7
Bits 00 to 07 correspond to
Output Unit outputs 0 to 7.
