Wiring
3 - 8
J
Transmission Cables
When the Inverter Panels is designed to be applicable to transmission connection, the Inverter Panel is pro-
vided with transmission junction terminals.
Connect the transmission cables directly to the transmission junction terminals on the input side and output
side.
Treat the transmission cables as low-current cables and separate them from high-power lines.

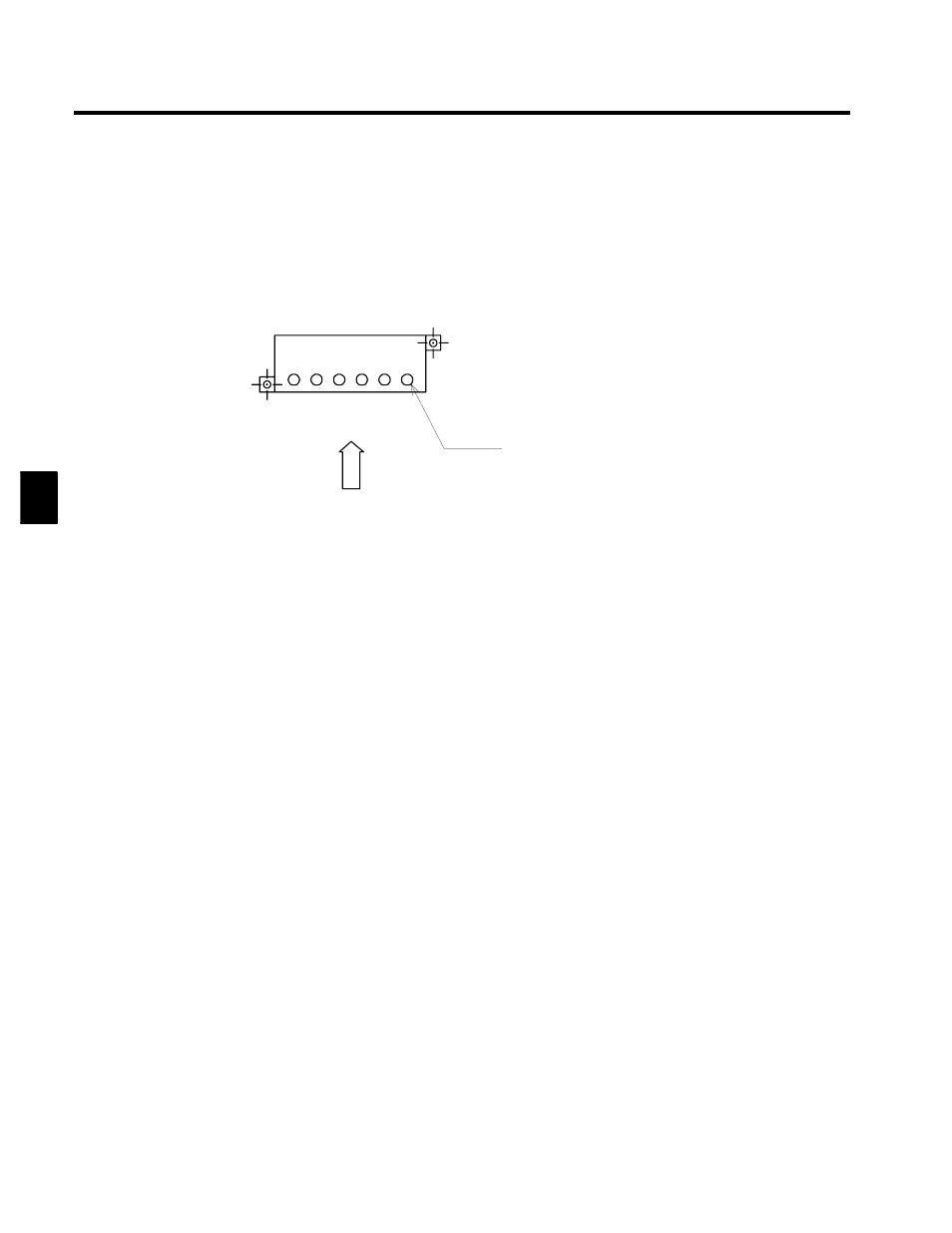

Terminal Block Arrangement
JC--215--01
Transmission Cable
IPEV--S, 1Px1.25 mm
2
4
X 3
X S
X 2
X
1
X X
E
M3.5--8L
Fig 3.3 Transmission Cable
