Dual-duct
application
This application is for a BAC-8007 controller. The controller is configured for
dual-duct operation. Dual-duct VAV requires a TSP-8001 actuator to be used
with the BC-8007 as shown in the illustration
.
Submittal sheets for several variations of this application are available from
the
Resources
page at
.

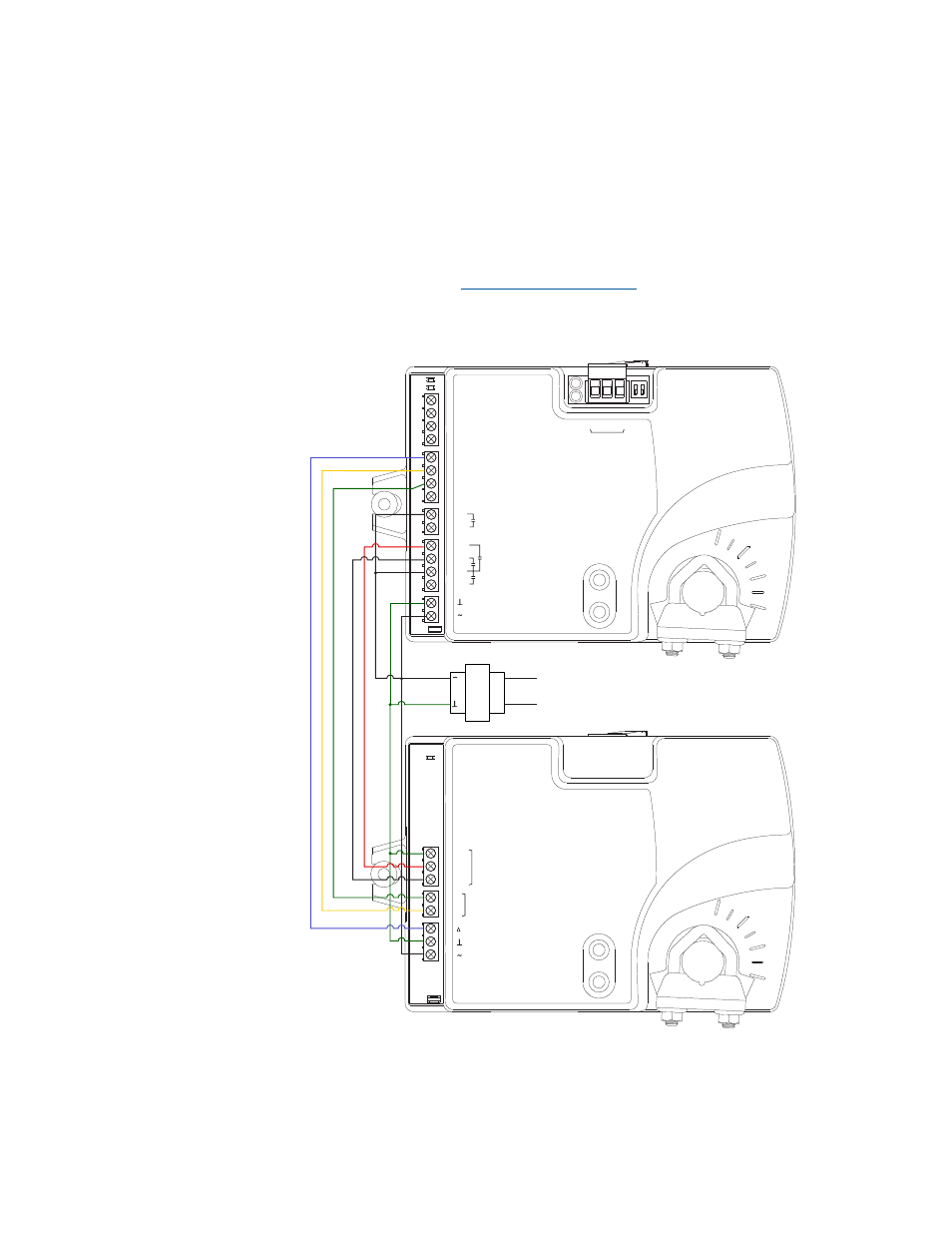

Illustration 6–6 Dual-duct wiring diagram
