Mounting

General

CTE-5100 series thermostats require a scale plate

assembly and a cover, which must be ordered

separately. To ensure accurate temperature sensing,

mount thermostats on interior walls and away from

heat sources, sunlight, windows, air vents, and air

circulation obstructions (e.g., curtains and furniture).

These thermostats may be mounted horizontally or

vertically to a standard 2 x 4" (51 x 102 mm) handy

box using a HMO-5024/5026/5030/5031 backplate or

directly to a hollow wall using an HMO-5023 kit.

Electrical Box Mounting

1. Install, but DO NOT TIGHTEN, the HMO-

5024/5026/5030/5031 backplate to a handy box

using the two 6-32 screws (included).

2. Adjust and level the backplate using the slotted

mounting hole.

3. Tighten the two mounting screws.
4. Pull all thermostat wires and cable through the

backplate and decorative trim plate opening (of

the HMO-5024/5026/5030/5031). Be careful not to

damage the trim plate while wiring.

5. Connect the thermostat’s wires according to its

particular application. See the Connections and

Wiring section.

6. Position the trim plate between the backplate and

the thermostat (with the cover removed).

7. Align the mounting holes and secure the

assembly with the two 6-32 x 2" self-tapping

screws (included).

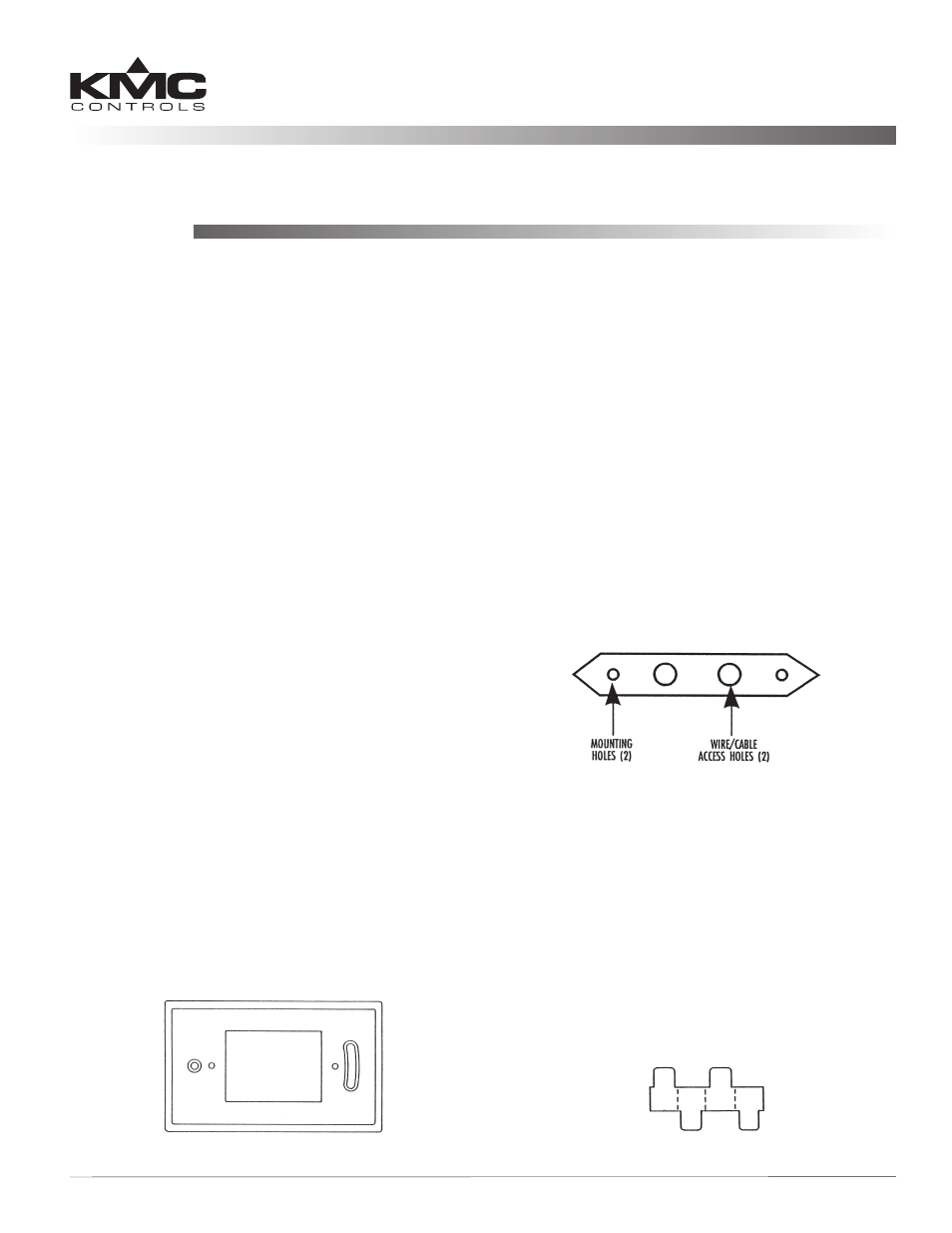

HMO-5024/5026/5030/5031 Back Plate

HMO-5023 Hollow Wall Mounting Kit (Screws Not Shown)

Hollow Wall Mounting

Thermostats may be mounted on a hollow wall up to

5/8" thick using the HMO-5023 hollow wall mount-

ing kit.
1. Using the template, cut a 1-1/2 x 2-11/16" opening

in the drywall.

2. Loosely mount the HMO-5023 bracket to the

thermostat (with cover removed) using the two

6-32 x 2" screws.

3. Pull all thermostat wires or cable through the

bracket’s wiring/cable access hole(s).

4. Connect the thermostat wires according to its

particular application. See the Connections and

Wiring section.

5. Insert bracket diagonally, through the wall

opening, and then center and tighten the screws.

Mounting

1

General

1

Electrical Box Mounting 1
Hollow Wall Mounting 1
Setpoint Stops

1

Scale Plate

2

Cover

2

Connections and Wiring 2
Adjustments and Calibration 4
Maintenance

4

More Information 4
Important Notices 4

Setpoint Stops

Optional setpoint stops can be used to lock or limit

the setpoint range. Each HFO-0027 setpoint stop

strip (accessory sold separately) contains four stops.
1. Break a stop from the strip by gently folding on

the seam with pliers.

2. Insert a stop into the slider track on one or both

sides of the slider.

3. Repeat for second slider.

HFO-0027 Setpoint Stop Strip
