Setting the rotation
limits SimplyVAV controllers are manufactured for a damper that rotates 90
degrees from open to close. If the VAV damper is not a 90 degree damper, set
the rotation limits to 45 or 60 degrees before mounting the controller.
Caution
Before setting the rotation limits on the controller, refer to the
damper position specifications in the VAV control box to
which the controller will be attached. Setting rotation limits
that do not match the VAV damper may result in improper
operation or equipment damage.

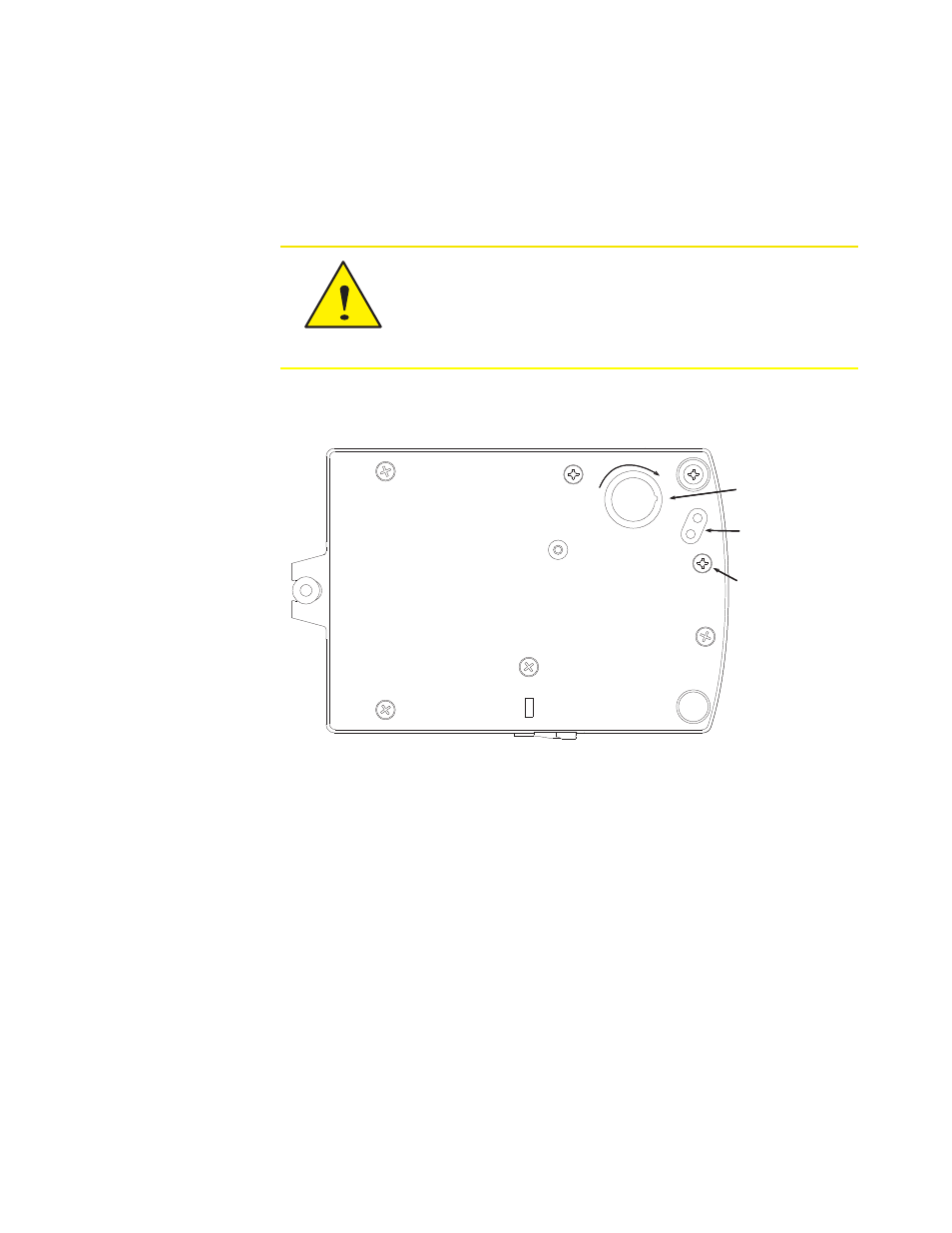

Illustration 2–1 Controller rotation limit selections
45
60
Position notch
as shown
Stop position
holes
Stop screw in
storage
Rotate CW
To set the rotational limits, do the following
1. Turn the controller over so you have access to the back.
2. Manually rotate the actuator fully clockwise as viewed from the back.
3. Remove the stop screw from its storage location and clean any debris
from the threads.
4. Insert the screw into the correct stop position hole.
5. Tighten the screw only until the head touches the plastic in the bottom
of the recess.
Section 2: Installing the controllers SimplyVAV
16 Revision E
