Button Descriptions

The up and down arrow buttons are used for raising

or lowering a value, such as temperature setpoint.

The other buttons are described below:

Mode—cycles between display/set options for

room temperature, cooling setpoint, heating

setpoint, and override. (The mode returns to

default room temperature display about ten

seconds after the last button press.)
Cooling Setpoint—displays the cooling

operation setpoint value.
Heating Setpoint—displays the heating

operation setpoint value.
Override—displays manual override status

during scheduled unoccupied periods of

temperature setback/setup.
*Time—displays system time.
Alarm—displays system failure alarm status.
Humidity—displays room relative humidity.
*Day of Week (press Time and Humidity

buttons together)—displays system day of

the week in a numeric mode, with 1 = Sunday

and 7 = Saturday.

*

In a networked system, users can only view the day

and time. In stand-alone systems, users can also adjust

the day and time settings.

1.

2.

3.

4.

5.
6.
7.
8.

Operating Instructions

Introduction
A KMD-1183 NetSensor is a temperature/humidity-

sensing, wall-mounted, operator interface

for controlling a heating, ventilation, and air

conditioning (HVAC) system using KMC direct

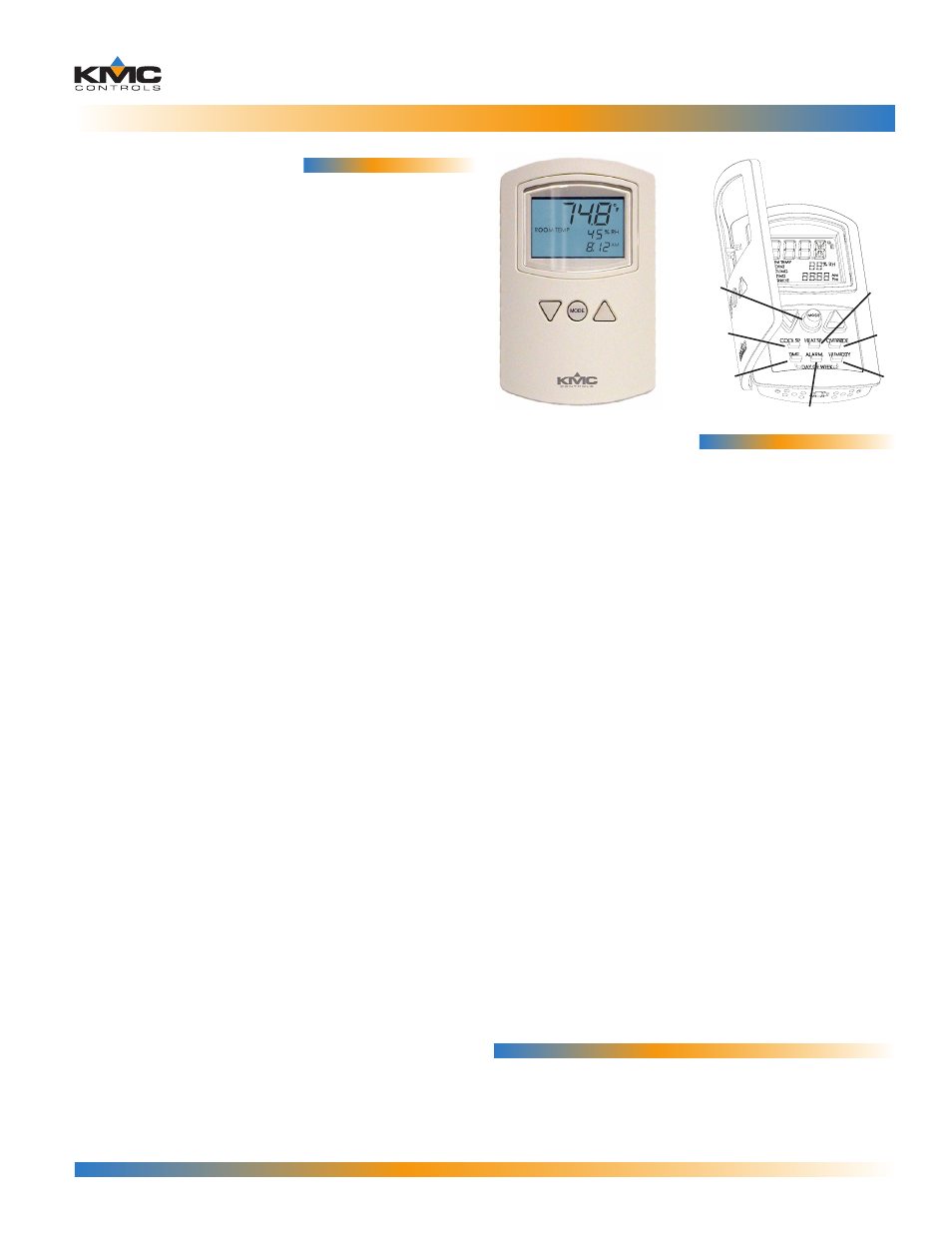

digital controls. The NetSensor includes nine buttons

(see illustration) that are described here along with

basic operation.
Raise or lower the temperature setpoint
To adjust the room temperature, press the Mode

button to cycle to Cooling Setpoint or Heating

Setpoint mode (or flip open the cover and press the

desired button) and use the up/down arrow buttons

to adjust the setpoint to the desired setting.
Override unoccupied temperature setback/setup
To restore normal room temperature during a

scheduled unoccupied period, press the Mode

button to cycle to Override mode (or flip open the

cover and press the Override button) and use the

up/down arrow buttons to turn On or Off.
Check the humidity
Humidity is continuously displayed as xx% RH in

the middle right-hand side of the screen. To display

humidity on the top primary display, flip open the

cover and press the Humidity button.
Check (and set) system time or day of week
System time is continuously displayed in the lower

right-hand side of the screen. To display the system

time or day of week on the top primary display,

flip open the cover and press the desired button. If

the system is a stand-alone unit (not networked),

the time and day can also be adjusted by using the

up/down arrow buttons (note AM/PM designators).

For Day of Week, simultaneously press Time and

Humidity buttons (on the display, 1 = Sun., 2 = Mon.,

3 = Tue., 4 = Wed., 5 = Thur., 6 = Fri., and 7 = Sat.).
Check the system failure alarm
If a failure is detected in the HVAC system, the

controller will shut down the system. If the HVAC

system does not seem to be operating, press the

Alarm button. If On is displayed, the HVAC system

requires servicing.

Specifications and design subject to change without notice.

© 2006 KMC Controls, Inc.

903-019-06
