Connecting a DAT
sensor The Discharge Air Temperature sensor is required for automatic changeover
and for VAV terminal units with reheat.

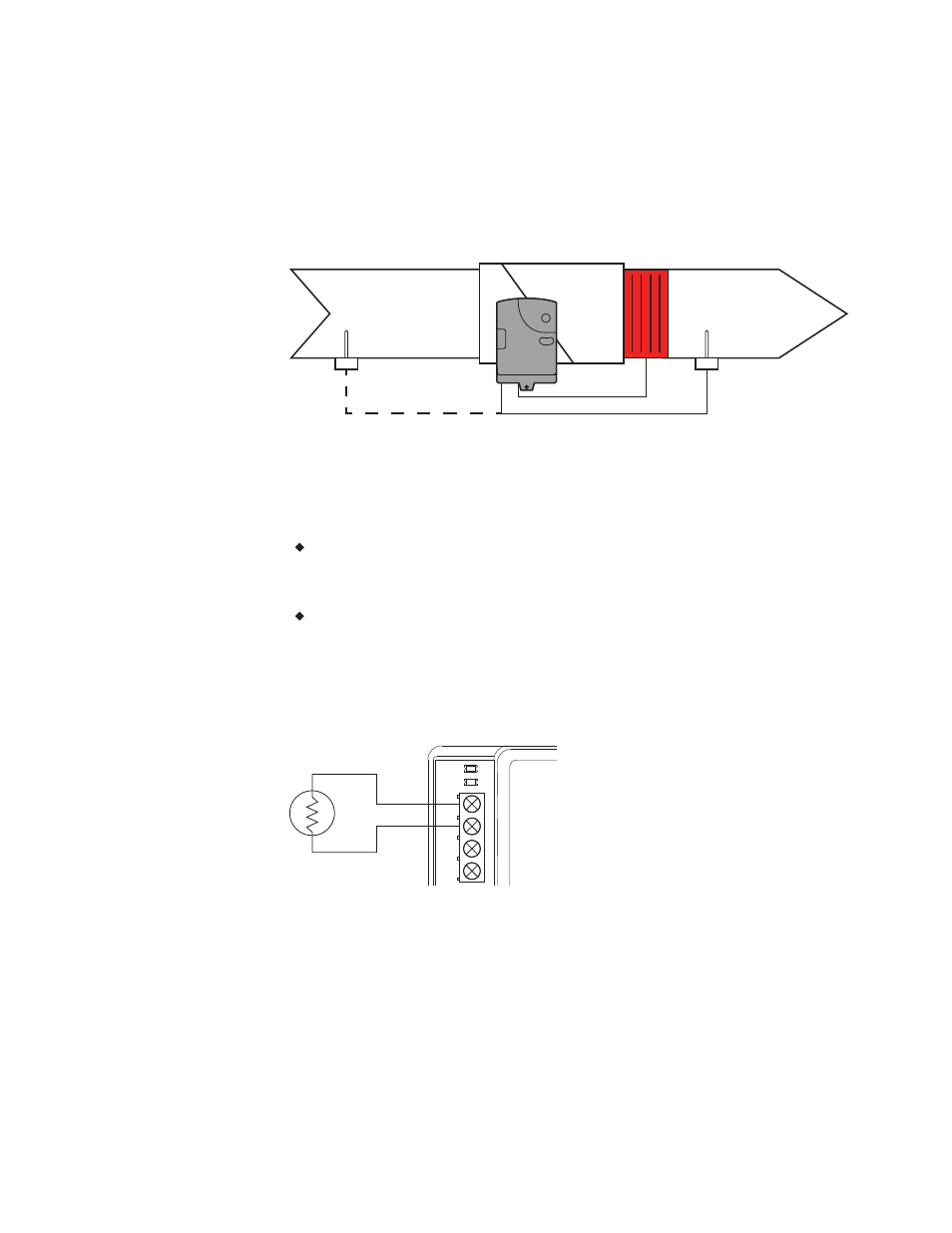

Illustration 2–5 Discharge air temperature sensor location
DAT sensor
Prefered location DAT sensor
Changeover only
Connect a 10 kΩ, Type 3 thermistor temperature probe to the discharge air
temperature input. The input includes the internal pull-up resistor. An
STE-1401 sensor is suitable for this application. Follow the instructions
supplied with the sensor for installation.
For DAT limiting and reheat, install the sensor in the airflow after the
reheat unit. See the topic,
Advanced options on page 37 to enable
discharge air temperature control.
When the DAT sensor is used only to detect primary air temperature,
the sensor can be placed in either location shown in the illustration
Discharge air temperature sensor location .
Illustration 2–6 Discharge air temperature input details
T
COMM
READY
AI1
GND
AO4
AO3
